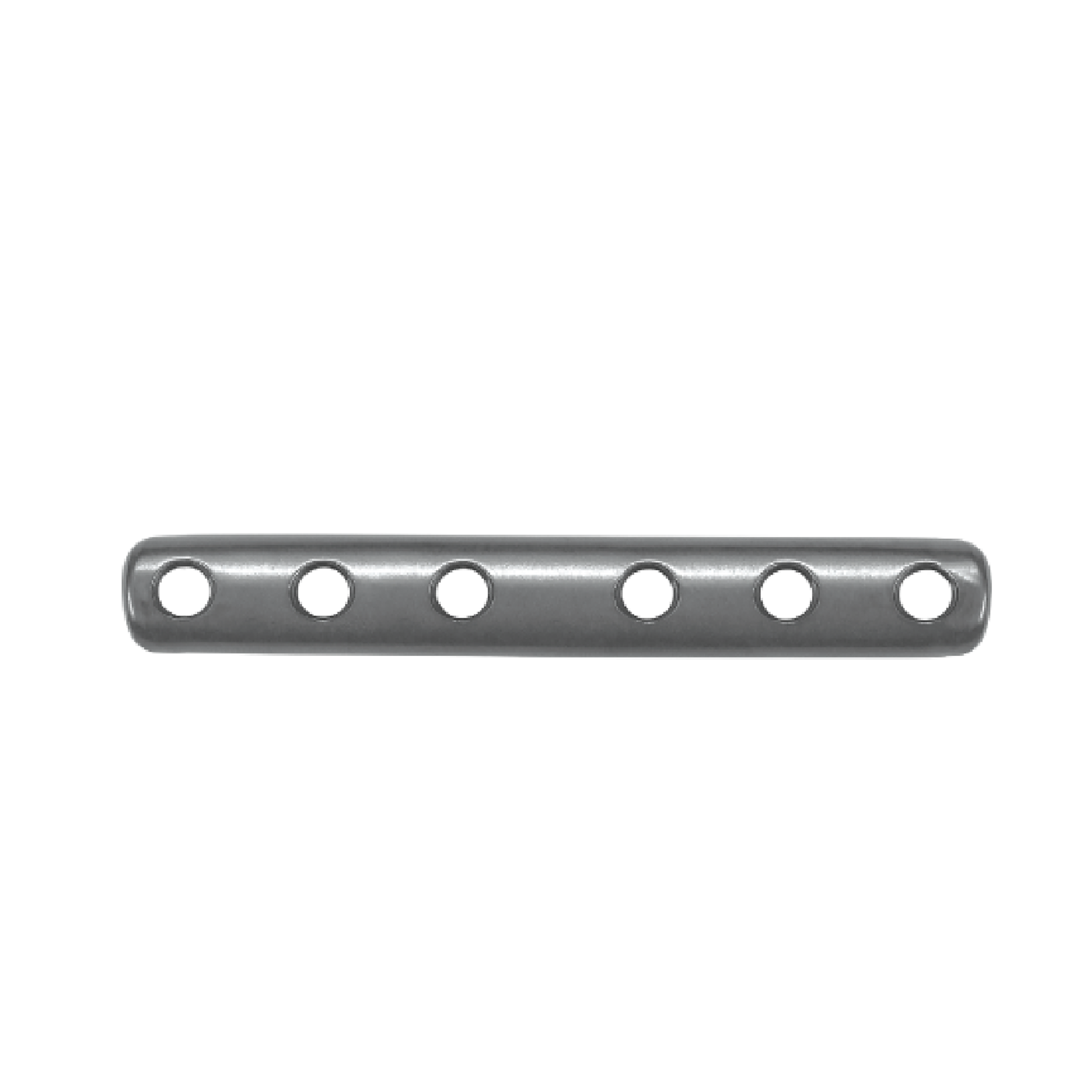

1/3 Tubular Locking Plates
- Anatomical design: The plate shape accommodate humerus anatomy, fits close to minimize soft tissue irration;
- Limited-contact design: With advantages as preservation of blood supply to soft tissue and bone ,reunion of the bone fractures,etc;
- Articular multi-holes design: Convenient for fixing selection, with stable fixation;
- Combination locking and compression holes (Combi holes): Using angular stability or compression according to the requirements.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 124221000040 / 124221000041 | 4holes | 49×10×2.2 | Pure Titanium |
| 124221000050 / 124221000051 | 5holes | 61×10×2.2 | Pure Titanium |
| 124221000060 / 124221000061 | 6holes | 73×10×2.2 | Pure Titanium |
| 124221000070 / 124221000071 | 7holes | 85×10×2.2 | Pure Titanium |
| 124221000080 / 124221000081 | 8holes | 97×10×2.2 | Pure Titanium |
| 124221000090 / 124221000091 | 9holes | 109×10×2.2 | Pure Titanium |
| 124221000100 / 124221000101 | 10holes | 121×10×2.2 | Pure Titanium |
The last digit of the product number “0” means non-sterile and “1” means sterile.
Remark: For ulna、radius fracture, select HC3.5 screws.
Remark: For ulna、radius fracture, select HC3.5 screws.
