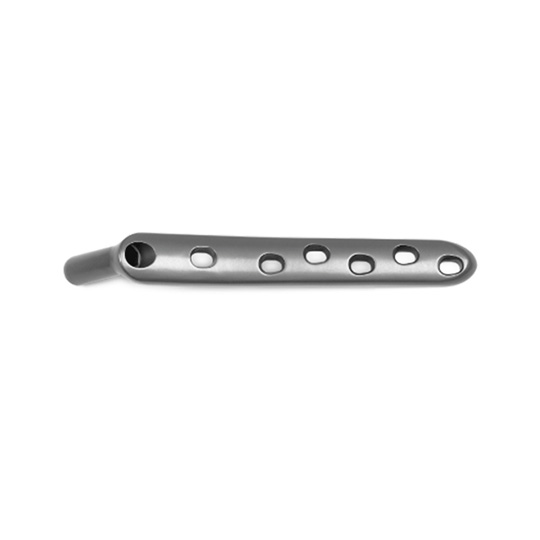

95°、130°、135° Plates
- Compression Fixation:Stability is achieved by pressing the plate tightly against the bone using standard cortical or cancellous screws.
- No Screw Locking Mechanism:Screws do not lock into the plate holes; fixation depends on friction between the plate and bone.
- Good Anatomical Adaptation:The plate can be shaped and contoured during surgery to match the natural anatomy of the bone.
- Flexible Intraoperative Adjustment:Surgeons can adjust plate position and screw placement during the procedure for better fracture reduction.
- Cost-Effective Solution:Compared with locking plates, non-locking plates are generally more economical and suitable for routine trauma cases.
- Suitable for Good Bone Quality:Best used in patients with normal bone density where strong screw purchase can be achieved.
- Wide Clinical Application:Commonly used for upper limb, lower limb, clavicle, fibula, radius, ulna, and other fracture fixation.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 166821000030 / 166821000031 | 3 holes | 111×20×5.9 | Pure Titanium |
| 166821000040 / 166821000041 | 4 holes | 130×20×5.9 | Pure Titanium |
| 166821000050 / 166821000051 | 5 holes | 149×20×5.9 | Pure Titanium |
| 166821000060 / 166821000061 | 6 holes | 168×20×5.9 | Pure Titanium |
| 166821000070 / 166821000071 | 7 holes | 187×20×5.9 | Pure Titanium |
| 166821000080 / 166821000081 | 8 holes | 206×20×5.9 | Pure Titanium |
| 166821000090 / 166821000091 | 9 holes | 225×20×5.9 | Pure Titanium |
| 166821000100 / 166821000101 | 10 holes | 244×20×5.9 | Pure Titanium |
| 166821000110 / 166821000111 | 11 holes | 263×20×5.9 | Pure Titanium |
| 166821000120 / 166821000121 | 12 holes | 282×20×5.9 | Pure Titanium |
Notes:
- The last digit of the product number “0” means non-sterile and “1” means sterile.
- Remark: Used for proximal femoral fracture, select HA4.5 and HB6.5 screws
