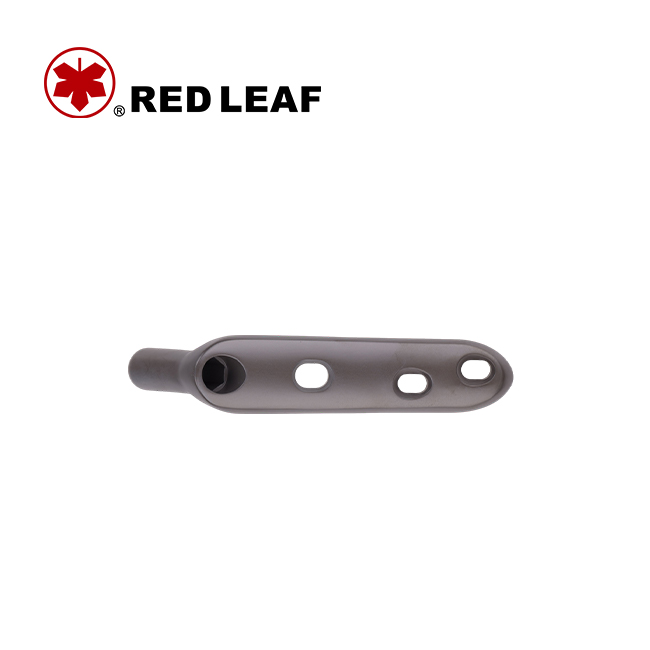

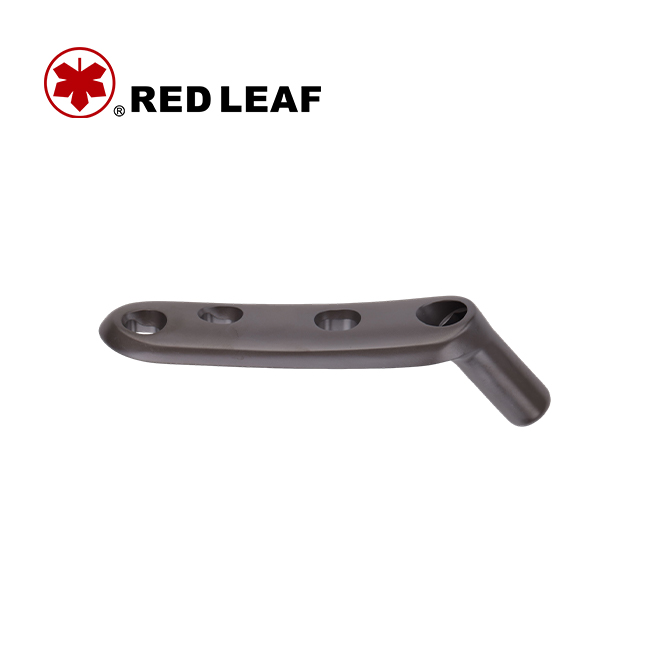

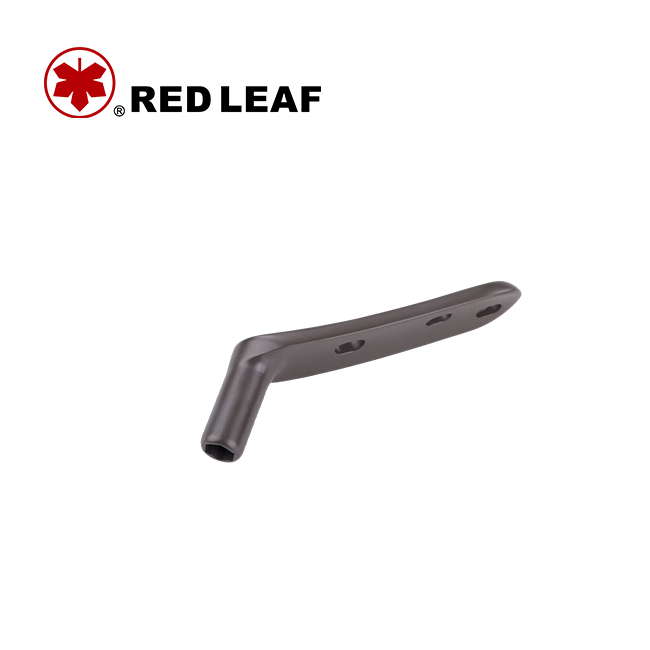

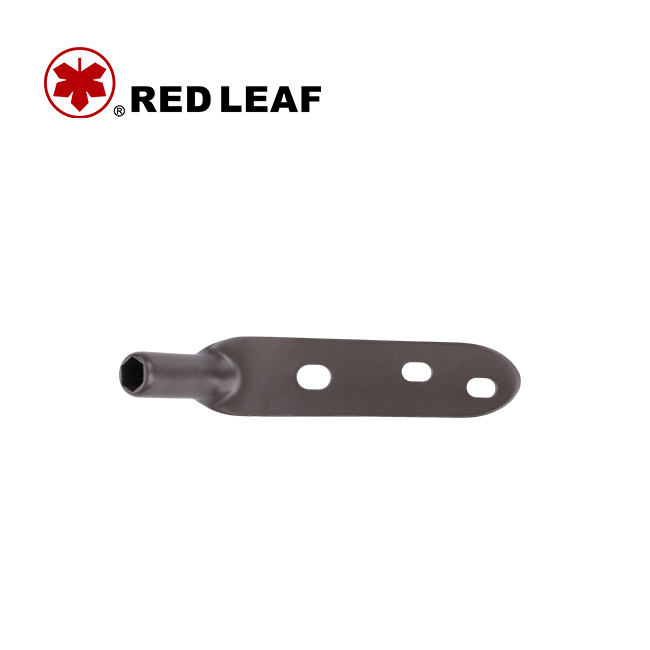

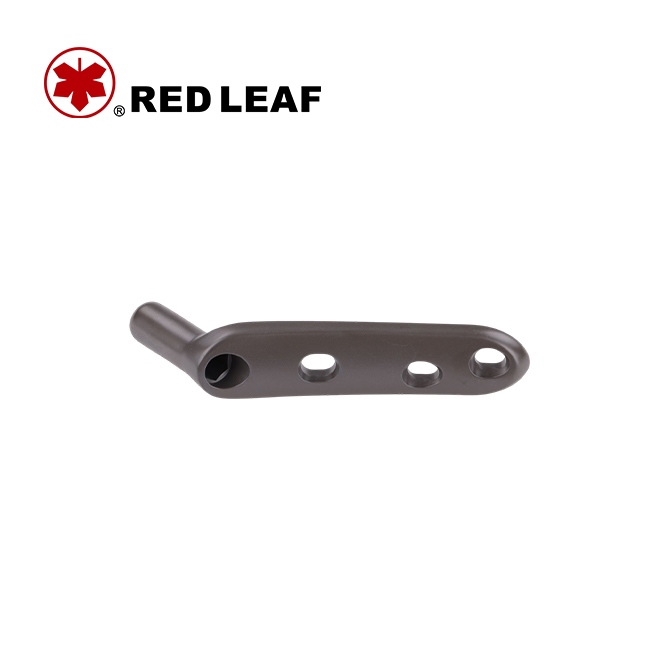

95°、130°、135° Plates
- Three types of steel plate fixation angles of 95 °, 130 °, and 135 °: 95 ° is used for subtrochanteric and retrotrochanteric fractures, 130 ° is used for femoral neck, and 135 ° is used for intertrochanteric fractures
- Pure titanium material: medical titanium alloy material, with excellent corrosion resistance and biocompatibility
- Multiple size ranges: 3/4/5/6/7/8/9/10/11/12 holes, which can cover and solve various surgical situations of proximal femoral fractures,
- Double head screw compatibility: HA4.5 cortical screw and HB6.5 cancellous bone screw can be used in different bone positions
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 166821000030 / 166821000031 | 3 holes | 111×20×5.9 | Pure Titanium |
| 166821000040 / 166821000041 | 4 holes | 130×20×5.9 | Pure Titanium |
| 166821000050 / 166821000051 | 5 holes | 149×20×5.9 | Pure Titanium |
| 166821000060 / 166821000061 | 6 holes | 168×20×5.9 | Pure Titanium |
| 166821000070 / 166821000071 | 7 holes | 187×20×5.9 | Pure Titanium |
| 166821000080 / 166821000081 | 8 holes | 206×20×5.9 | Pure Titanium |
| 166821000090 / 166821000091 | 9 holes | 225×20×5.9 | Pure Titanium |
| 166821000100 / 166821000101 | 10 holes | 244×20×5.9 | Pure Titanium |
| 166821000110 / 166821000111 | 11 holes | 263×20×5.9 | Pure Titanium |
| 166821000120 / 166821000121 | 12 holes | 282×20×5.9 | Pure Titanium |
Notes:
- The last digit of the product number “0” means non-sterile and “1” means sterile.
- Remark: Used for proximal femoral fracture, select HA4.5 and HB6.5 screws
