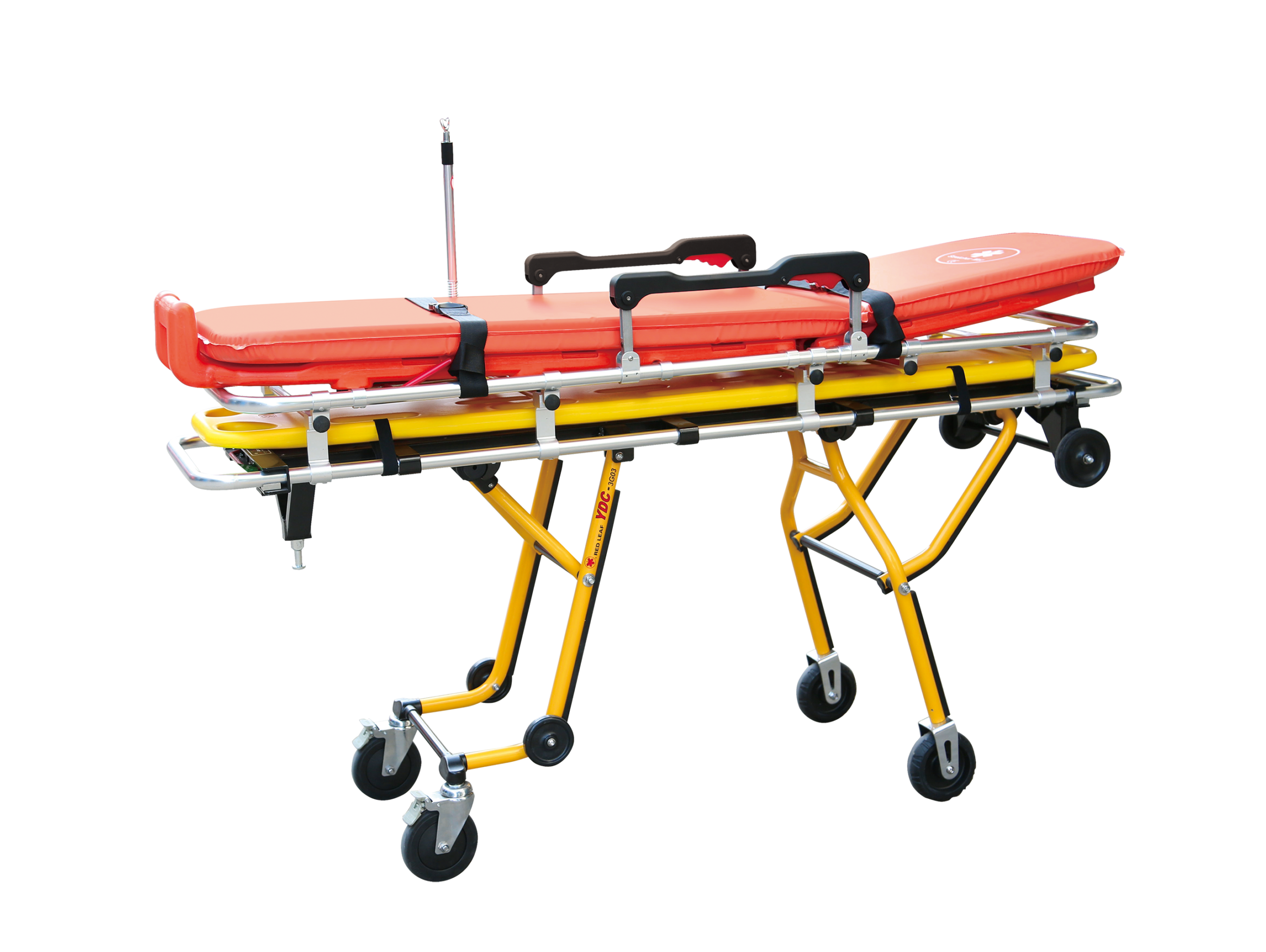

YDC-3G03 Ambulance Stretcher
- The main material is high-strength aluminum alloy.

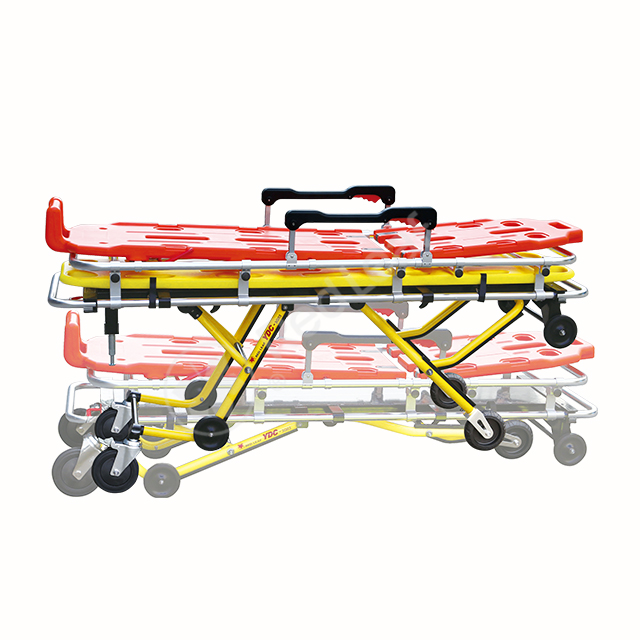

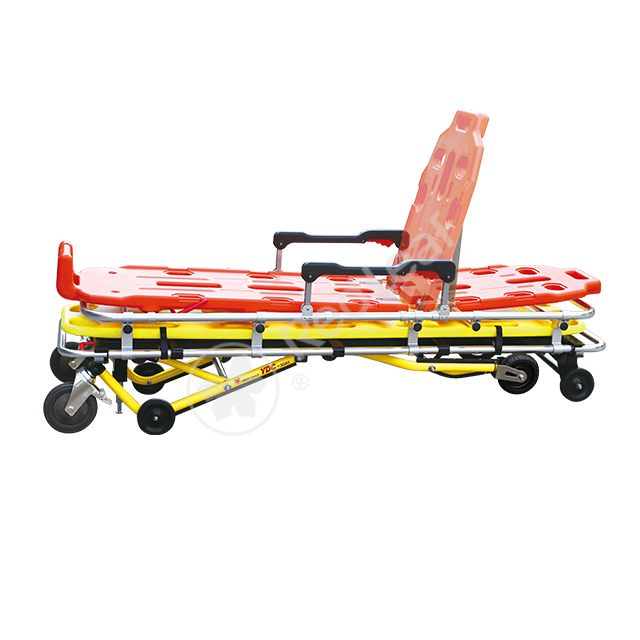

- The whole height can be adjusted in more than 4 positions for the convenience of CPR, the height of front part and back part can be adjusted in 6 positions.

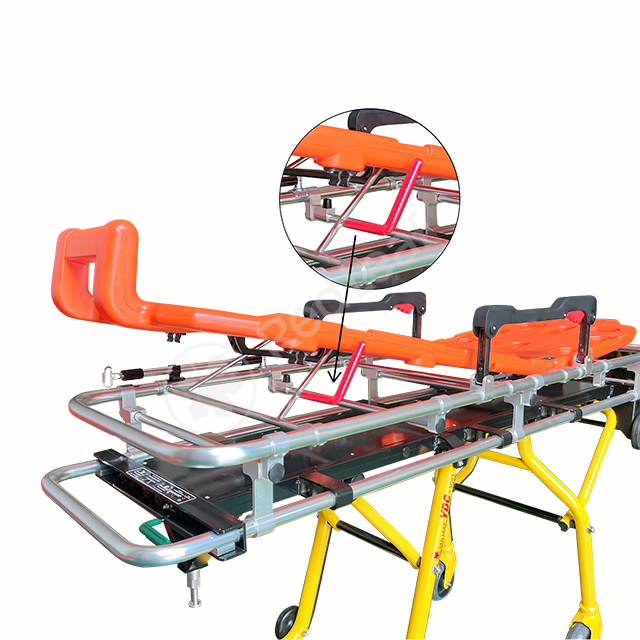

- The stretcher’s leg folding mechanism and height adjustment is controlled through the front and rear pull rod operation.

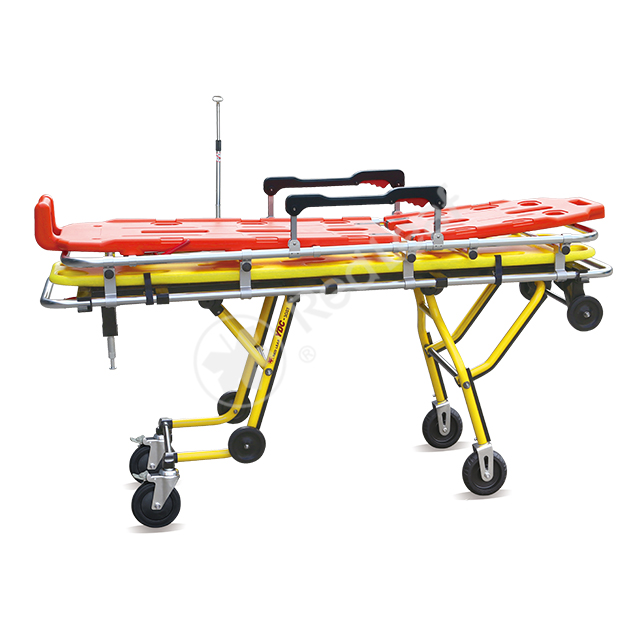

- Equipped with adjustable two-stage I.V. Stand, The maximum adjustable length is 75cm.
- The mattress is made of wear-resistant mesh cloth, with a thickness of 3cm and disposable welding, flame retardant and waterproof.

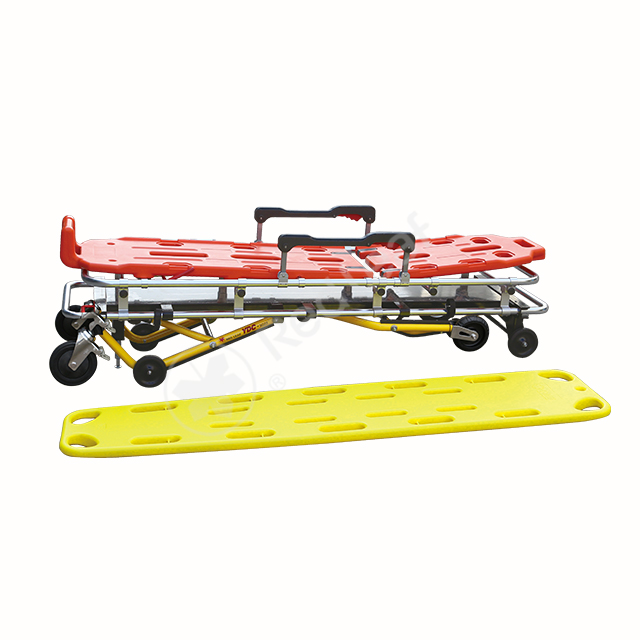

- It can store one unit of PE stretcher or scoop stretcher between the upper and undercarriage of the stretcher.
- Loading height: 62cm. Wheel size: 150mm.
Product Details
High position 197*58*92cm
Low position 197*58*40cm
Maximum Angle of the Back 65°
Max Angle of the Knee part 15°
Self-Weight 56KG
Load Bearing 181KG
Packing Quantity 1
Packing Size(L*W*H) 208*66*63cm
G.W 65KG
