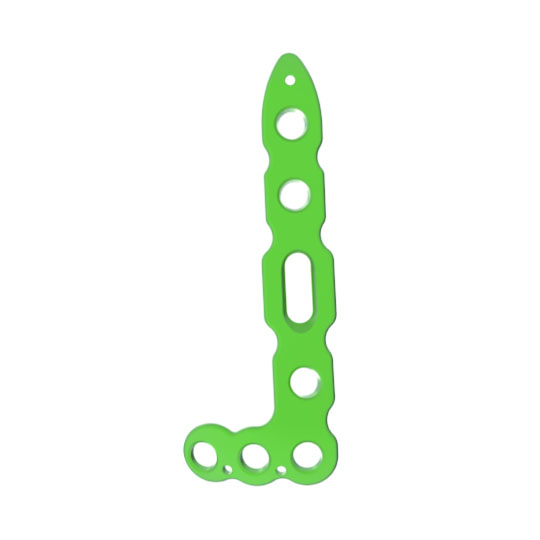

Anterior Tibial Locking Plate-1
- Suitable for distal tibial and fibular fractures.
- The ankle series plate products provide comprehensive fixation methods for tibial fractures including anterior, medial, and posterior tibial fractures.
- The plate adopts a thickness gradient design, making it more in line with the anatomical morphology of the tibia and fibula.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 6974405427677 | 2 holes left | 47×10×2.5 | TC4 |
| 6974405427684 | 3 holes left | 58.5×10×2.5 | TC4 |
| 6974405427691 | 4 holes left | 70×10×2.5 | TC4 |
| 6974405427707 | 5 holes left | 81.5×10×2.5 | TC4 |
| 6974405427714 | 6 holes left | 93×10×2.5 | TC4 |
| 6974405427721 | 7 holes left | 104.5×10×2.5 | TC4 |
| 6974405427738 | 8 holes left | 116×10×2.5 | TC4 |
| 6974405427745 | 9 holes left | 127.5×10×2.5 | TC4 |
| 6974405427752 | 10 holes left | 139×10×2.5 | TC4 |
| 6974405427769 | 11 holes left | 150.5×10×2.5 | TC4 |
| 6974405427776 | 12 holes left | 162×10×2.5 | TC4 |
| 6974405427783 | 13 holes left | 173.5×10×2.5 | TC4 |
| 6974405427790 | 14 holes left | 185×10×2.5 | TC4 |
| 6974405427806 | 15 holes left | 196.5×10×2.5 | TC4 |
| 6974405427813 | 16 holes left | 208×10×2.5 | TC4 |
| 6974405427820 | 2 holes right | 47×10×2.5 | TC4 |
| 6974405427837 | 3 holes right | 58.5×10×2.5 | TC4 |
| 6974405427844 | 4 holes right | 70×10×2.5 | TC4 |
| 6974405427851 | 5 holes right | 81.5×10×2.5 | TC4 |
| 6974405427868 | 6 holes right | 93×10×2.5 | TC4 |
| 6974405427875 | 7 holes right | 104.5×10×2.5 | TC4 |
| 6974405427882 | 8 holes right | 116×10×2.5 | TC4 |
| 6974405427899 | 9 holes right | 127.5×10×2.5 | TC4 |
| 6974405427905 | 10 holes right | 139×10×2.5 | TC4 |
| 6974405427912 | 11 holes right | 150.5×10×2.5 | TC4 |
| 6974405427929 | 12 holes right | 162×10×2.5 | TC4 |
| 6974405427936 | 13 holes right | 173.5×10×2.5 | TC4 |
| 6974405427943 | 14 holes right | 185×10×2.5 | TC4 |
| 6974405427950 | 15 holes right | 196.5×10×2.5 | TC4 |
| 6974405427967 | 16 holes right | 208×10×2.5 | TC4 |
Indication: Tibial fracture
Adaptation Screw: 3.5 self tapping locking/compression screw
