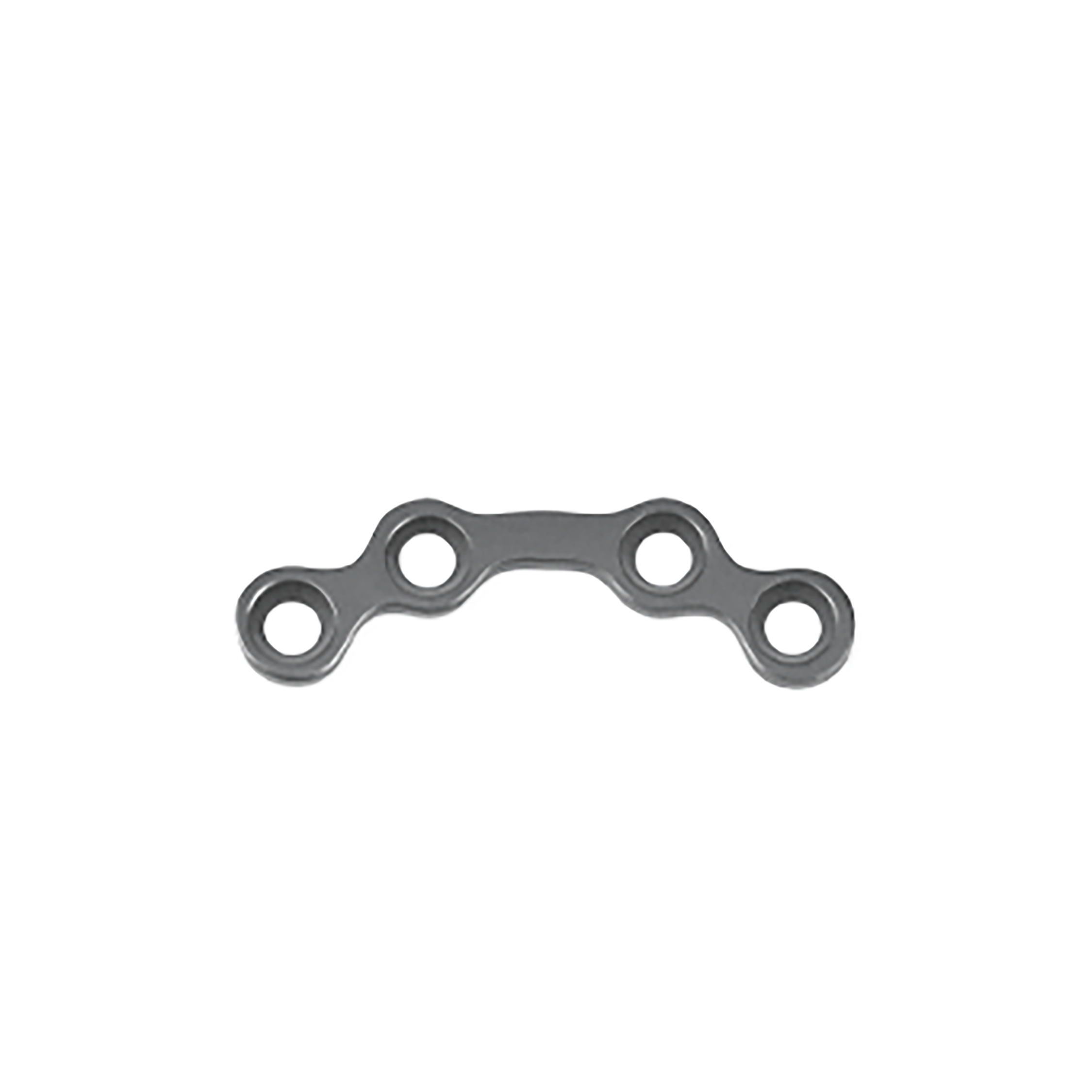

Arc-shaped Plates I
- Concave design can make screws and plates tighter together
- The edge design of the bone plate is smoother, which can reduce soft tissue damage
- The surface of the bone plate adopts anodizing technology, and different thicknesses can reflect different colors, making it convenient for physicians to operate
- Good biocompatibility, convenient for regular postoperative check ups
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 150321000040 / 150321000041 | 4 holes | 23.7×4.5×1.0 | Pure Titanium |
| 150321000050 / 150321000051 | 5 holes | 28.2×4.5×1.0 | Pure Titanium |
| 150321000060 / 150321000061 | 6 holes | 32.7×4.5×1.0 | Pure Titanium |
| 150321000070 / 150321000071 | 7 holes | 37.2×4.5×1.0 | Pure Titanium |
| 150321000080 / 150321000081 | 8 holes | 41.7×4.5×1.0 | Pure Titanium |
| 150321000090 / 150321000091 | 9 holes | 46.2×4.5×1.0 | Pure Titanium |
| 150321000100 / 150321000101 | 10 holes | 50.7×4.5×1.0 | Pure Titanium |
| 150321000110 / 150321000111 | 11 holes | 55.2×4.5×1.0 | Pure Titanium |
| 150321000120 / 150321000121 | 12 holes | 59.7×4.5×1.0 | Pure Titanium |
Notes:
- The last digit of the product number “0” means non-sterile and “1” means sterile.
- Remark: Used for maxillo-facial fracture, select HA2.0 screws (crosshead)
