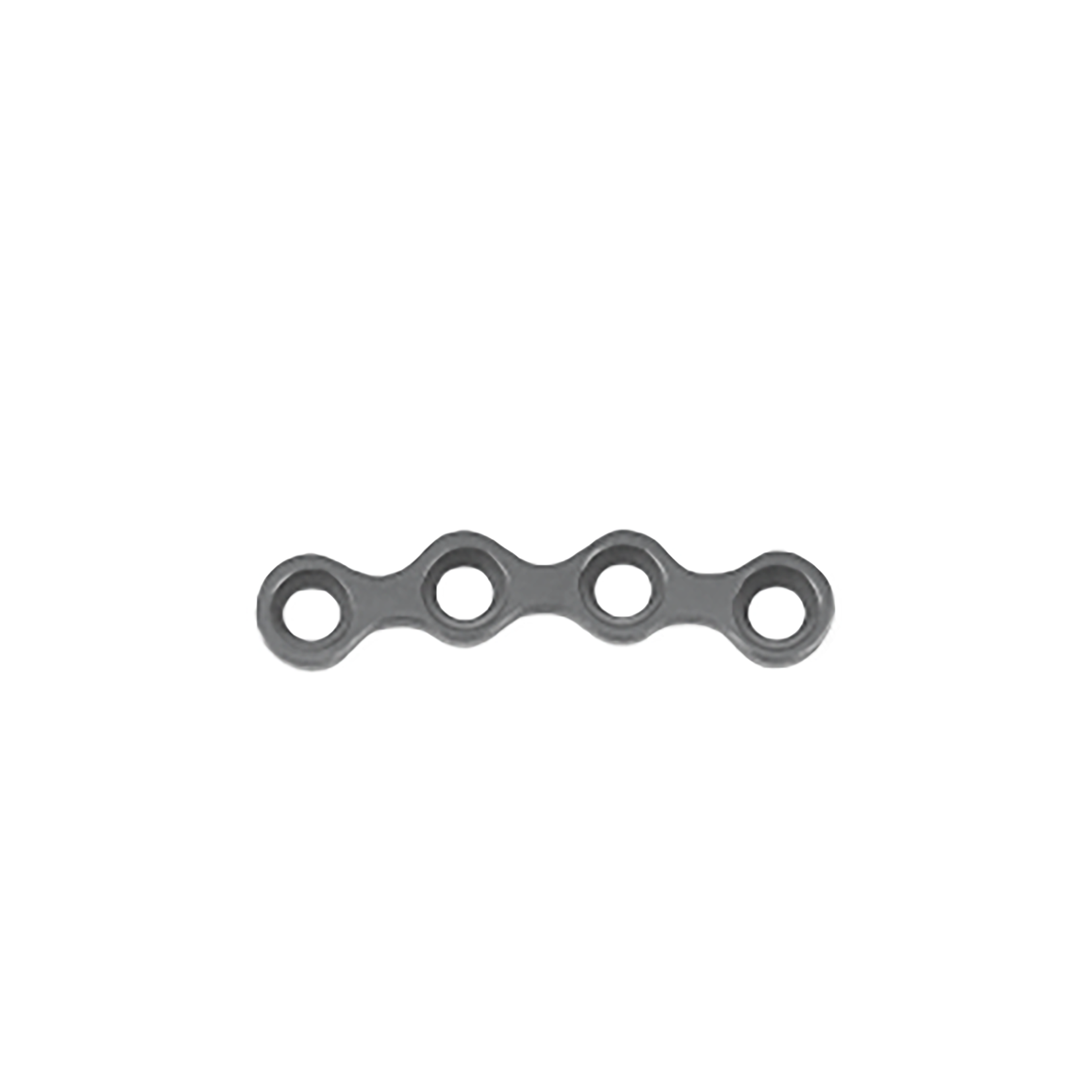

Arc-shaped Plates II
- Concave design can make screws and plates tighter together
- The edge design of the bone plate is smoother, which can reduce soft tissue damage
- The surface of the bone plate adopts anodizing technology, and different thicknesses can reflect different colors, making it convenient for physicians to operate
- Good biocompatibility, convenient for regular postoperative check ups
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 150421000040 / 150421000041 | 4 holes | 22.2×4.5×1.0 | Pure Titanium |
| 150421000050 / 150421000051 | 5 holes | 27.9×4.5×1.0 | Pure Titanium |
| 150421000060 / 150421000061 | 6 holes | 33.6×4.5×1.0 | Pure Titanium |
| 150421000070 / 150421000071 | 7 holes | 39×4.5×1.0 | Pure Titanium |
| 150421000080 / 150421000081 | 8 holes | 44.2×4.5×1.0 | Pure Titanium |
| 150421000090 / 150421000091 | 9 holes | 49.2×4.5×1.0 | Pure Titanium |
| 150421000100 / 150421000101 | 10 holes | 53.9×4.5×1.0 | Pure Titanium |
| 150421000110 / 150421000111 | 11 holes | 58.3×4.5×1.0 | Pure Titanium |
| 150421000120 / 150421000121 | 12 holes | 62.4×4.5×1.0 | Pure Titanium |
Notes:
- The last digit of the product number “0” means non-sterile and “1” means sterile.
- Remark: Used for maxillo-facial fracture, select HA2.0 screws (crosshead)
