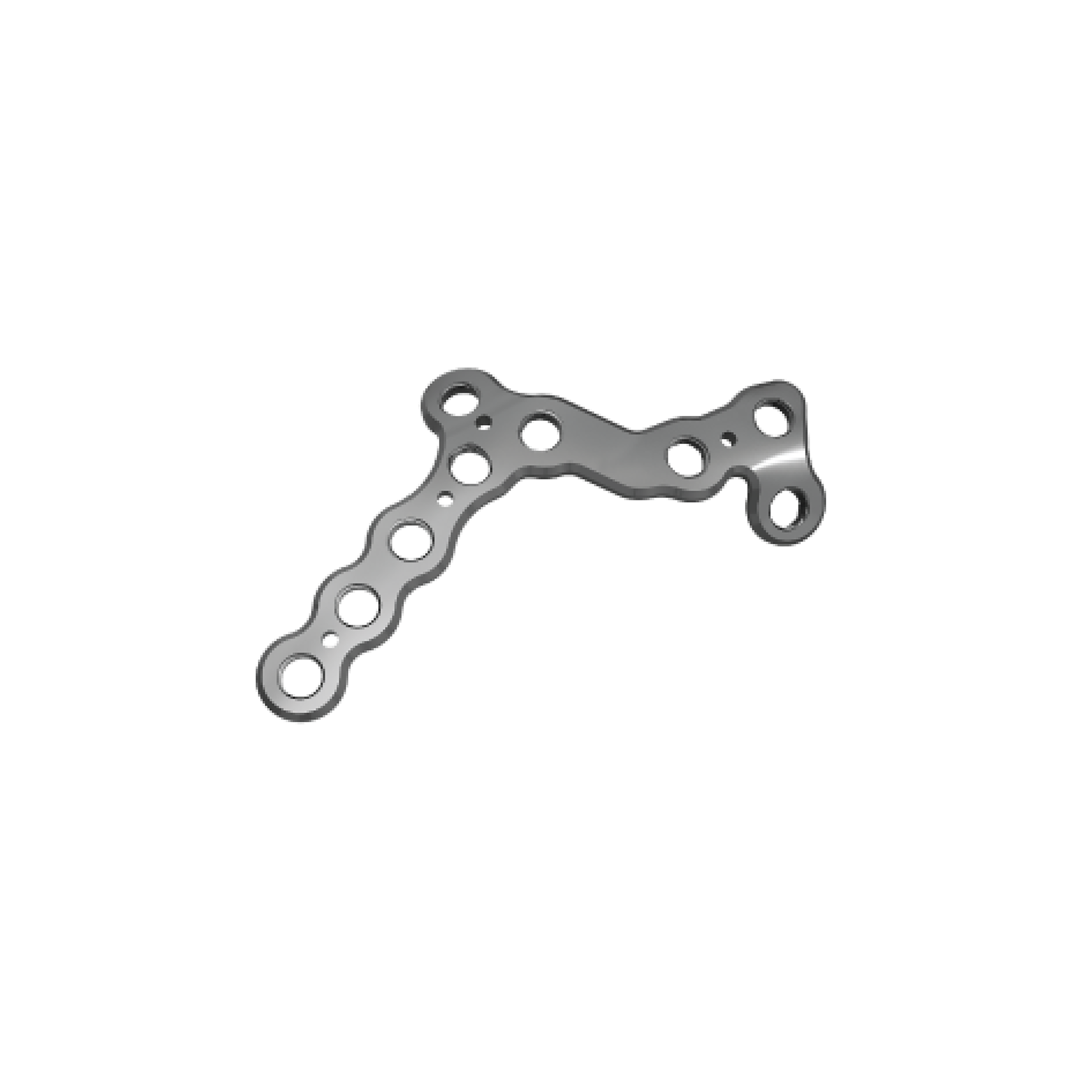

Calcaneus Combination Locking Plates
- According to the anatomical design of the ankle skeleton model, it conforms to the bone shape and reduces soft tissue stimulation.
- Locking pressure hole design allows ordinary screws to achieve compression fixation, or locking screws can be used to achieve angle stability fixation.
- K-wire holes can serve as temporary fixation during surgery, facilitating physicians to maintain the reset position before final screw fixation and simplifying surgical procedures.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 1813211000080 / 1813211000081 | 8holes L | 56.9×10×1.8 | Pure Titanium |
| 1813212000080 / 1813212000081 | 8holes R | 56.9×10×1.8 | Pure Titanium |
| 1813211000090 / 1813211000091 | 9holes L | 68.7×10×1.8 | Pure Titanium |
| 1813212000090 / 1813212000091 | 9holes R | 68.7×10×1.8 | Pure Titanium |
The last digit of the product number “0” means non-sterile and “1” means sterile.
Remark: For calcaneus fracture, select HC3.5 screws.
