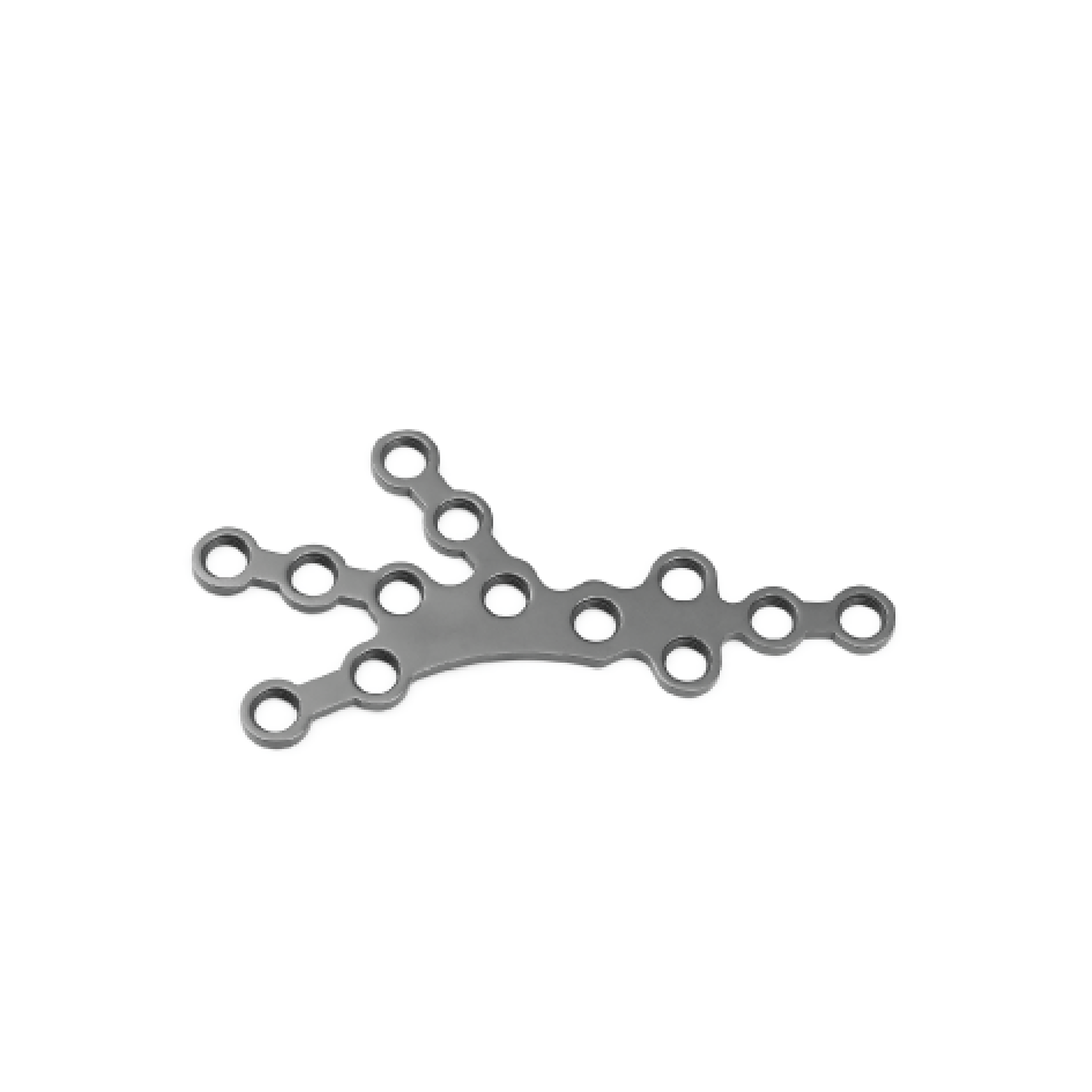

Calcaneus Locking Plates II(Left and Right Types)
- According to the anatomical design of the ankle skeleton model, it conforms to the bone shape and reduces soft tissue stimulation.
- Locking pressure hole design allows ordinary screws to achieve compression fixation, or locking screws can be used to achieve angle stability fixation.
- K-wire holes can serve as temporary fixation during surgery, facilitating physicians to maintain the reset position before final screw fixation and simplifying surgical procedures.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Thickness(mm) | Material |
|---|---|---|---|
| 1804211600030 / 1804211600031 | long 3holes L | 79.5×1.5 | Pure Titanium |
| 1804212600030 / 1804212600031 | long 3holes R | 79.5×1.5 | Pure Titanium |
| 1804211600040 / 1804211600041 | long 4holes L | 89×1.5 | Pure Titanium |
| 1804212600040 / 1804212600041 | long 4holes R | 89×1.5 | Pure Titanium |
| 1804211700030 / 1804211700031 | short 3holes L | 59.3×1.5 | Pure Titanium |
| 1804212700030 / 1804212700031 | short 3holes R | 59.3×1.5 | Pure Titanium |
| 1804211700040 / 1804211700041 | short 4holes L | 69×1.5 | Pure Titanium |
| 1804212700040 / 1804212700041 | short 4holes R | 69×1.5 | Pure Titanium |
The last digit of the product number “0” means non-sterile and “1” means sterile.
Remark: For calcaneus fracture, choose HC4.0 screws.
