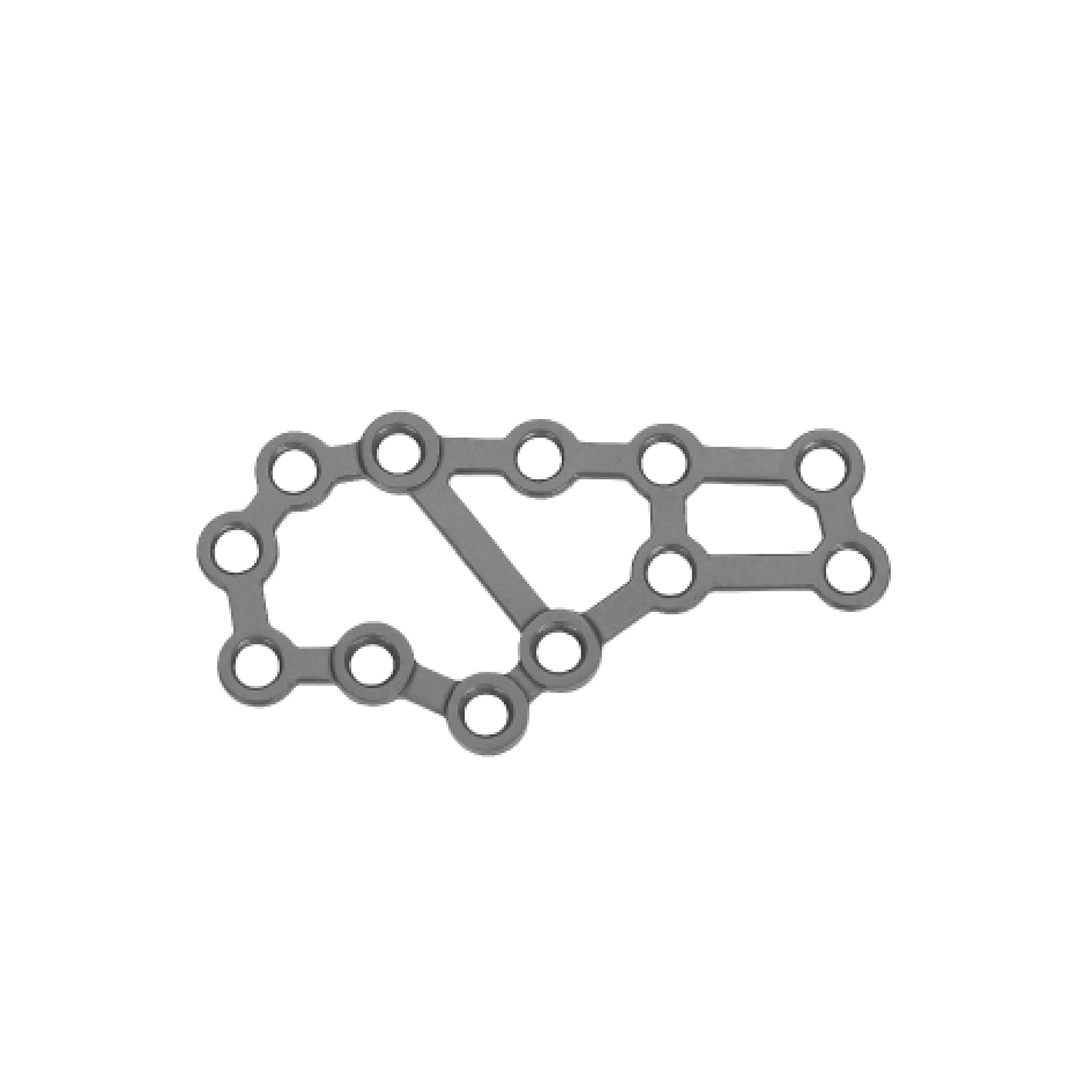

Calcaneus Locking Plates V (Left and Right Types)
- According to the anatomical design of the ankle skeleton model, it conforms to the bone shape and reduces soft tissue stimulation.
- Locking pressure hole design allows ordinary screws to achieve compression fixation, or locking screws can be used to achieve angle stability fixation.
- K-wire holes can serve as temporary fixation during surgery, facilitating physicians to maintain the reset position before final screw fixation and simplifying surgical procedures.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Thickness(mm) | Material |
|---|---|---|---|
| 180121100010 / 180121100011 | large L | 67.2×1.8 | Pure Titanium |
| 180121200010 / 180121200011 | large R | 67.2×1.8 | Pure Titanium |
| 180121100020 / 180121100021 | medium L | 58×1.8 | Pure Titanium |
| 180121200020 / 180121200021 | medium R | 58×1.8 | Pure Titanium |
| 180121100030 / 180121100031 | small L | 51×1.8 | Pure Titanium |
| 180121200030 / 180121200031 | small R | 51×1.8 | Pure Titanium |
The last digit of the product number “0” means non-sterile and “1” means sterile.
Remark: For calcaneus fracture, choose HC4.0 screws.
