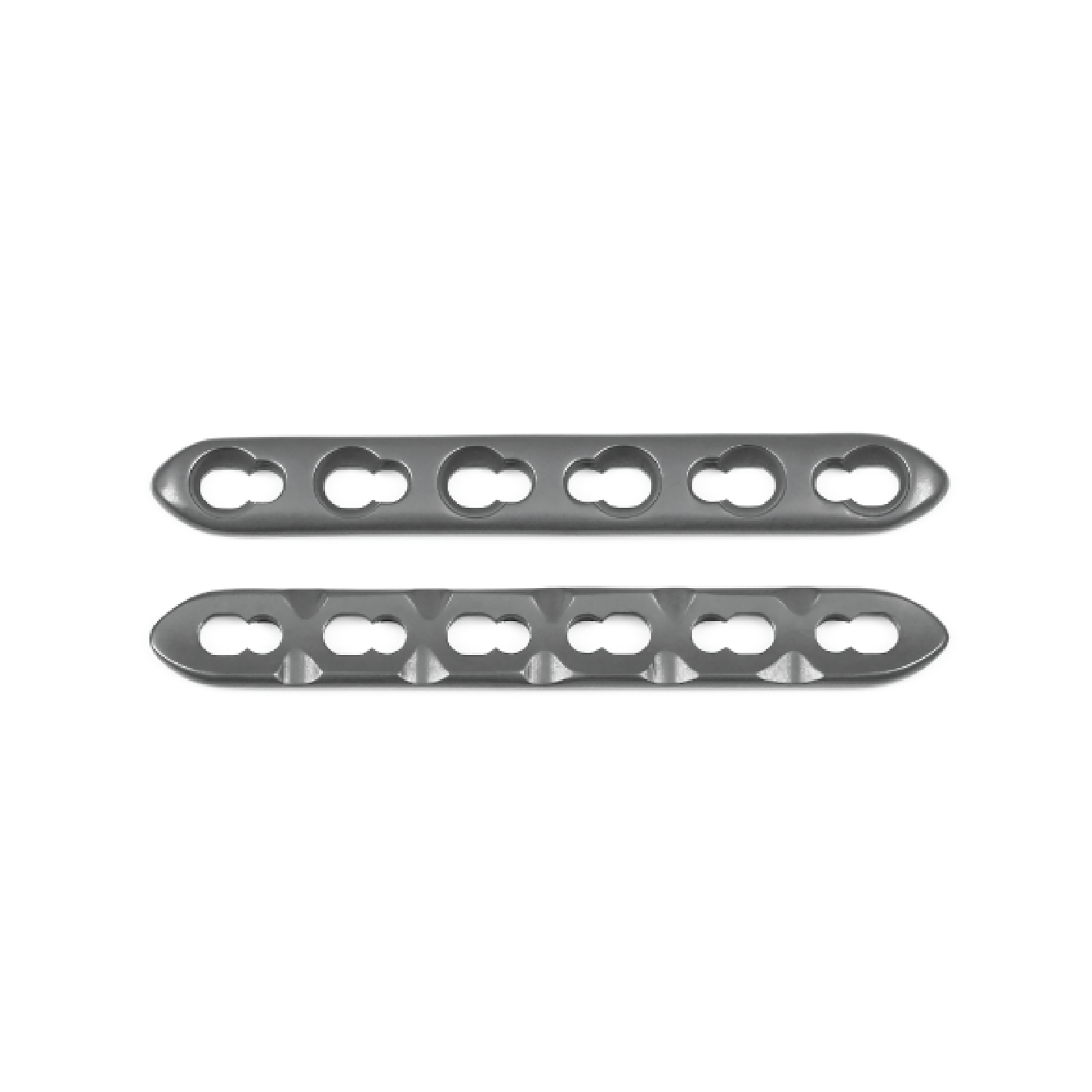

Children Locking Plates
- Anatomical design: The plate shape accommodate humerus anatomy, fits close to minimize soft tissue irration;
- Limited-contact design: With advantages as preservation of blood supply to soft tissue and bone ,reunion of the bone fractures,etc;
- Articular multi-holes design: Convenient for fixing selection, with stable fixation;
- Combination locking and compression holes (Combi holes): Using angular stability or compression according to the requirements.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 124021000040 / 124021000041 | 4holes | 43×8×2.2 | Pure Titanium |
| 124021000050 / 124021000051 | 5holes | 52×8×2.2 | Pure Titanium |
| 124021000060 / 124021000061 | 6holes | 61×8×2.2 | Pure Titanium |
| 124021000070 / 124021000071 | 7holes | 70×8×2.2 | Pure Titanium |
| 124021000080 / 124021000081 | 8holes | 79×8×2.2 | Pure Titanium |
| 124021000100 / 124021000101 | 10holes | 97×8×2.2 | Pure Titanium |
The last digit of the product number “0” means non-sterile and “1” means sterile.
Remark: Used for children fracture, select HC2.7 screws, HA2.7 screws (big cap).
Remark: Used for children fracture, select HC2.7 screws, HA2.7 screws (big cap).
