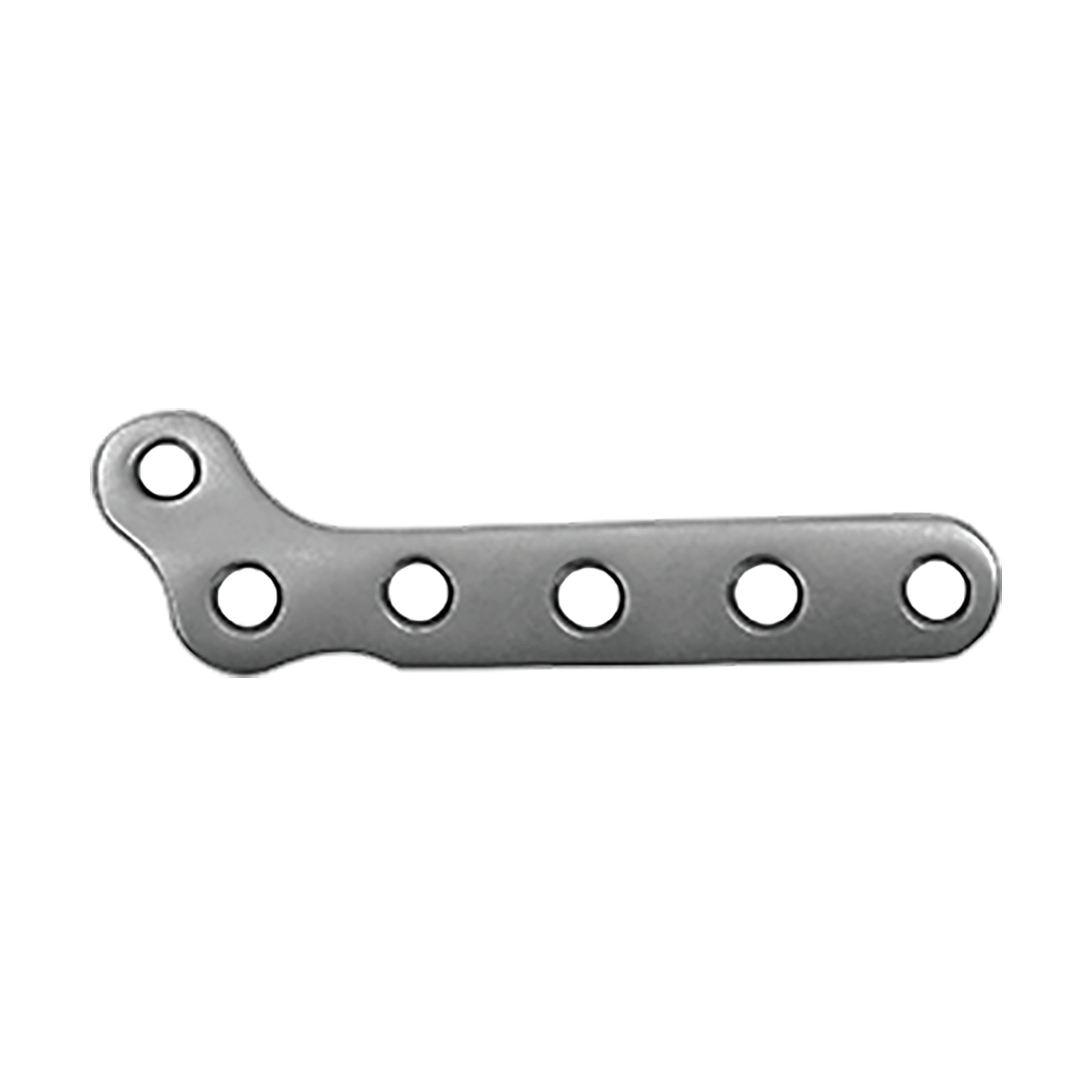

Curved 120° Metacarpal Locking Plates (Left and Right Types)
- Low incisure design: reduce the irritability for cartilage tissue;
- Anatomical design: reduce intraoperative shaping;
- Locking design: with the Angle stability;
- Easy shear design: reduce inventory pressure.
- Tapping design: easy for screw tapping in;
- Plum hexagonal design: reduce the risk of sliding tooth;
- Different specifications design: easy to various parts of fracture treatment.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 121921100040 / 121921100041 | 4 holes L | 42.5×7×1.2 | Pure Titanium |
| 121921200040 / 121921200041 | 4 holes R | 42.5×7×1.2 | Pure Titanium |
| 121921100050 / 121921100051 | 5 holes L | 50.5×7×1.2 | Pure Titanium |
| 121921200050 / 121921200051 | 5 holes R | 50.5×7×1.2 | Pure Titanium |
| 121921100060 / 121921100061 | 6 holes L | 58.5×7×1.2 | Pure Titanium |
| 121921200060 / 121921200061 | 6 holes R | 58.5×7×1.2 | Pure Titanium |
| 121921100070 / 121921100071 | 7 holes L | 66.5×7×1.2 | Pure Titanium |
| 121921200070 / 121921200071 | 7 holes R | 66.5×7×1.2 | Pure Titanium |
| 121921100080 / 121921100081 | 8 holes L | 74.5×7×1.2 | Pure Titanium |
| 121921200080 / 121921200081 | 8 holes R | 74.5×7×1.2 | Pure Titanium |
Notes:
- The last digit of the product number “0” means non-sterile and “1” means sterile.
- Remark: Used for metacarpal fracture, select HC2.7 screws
