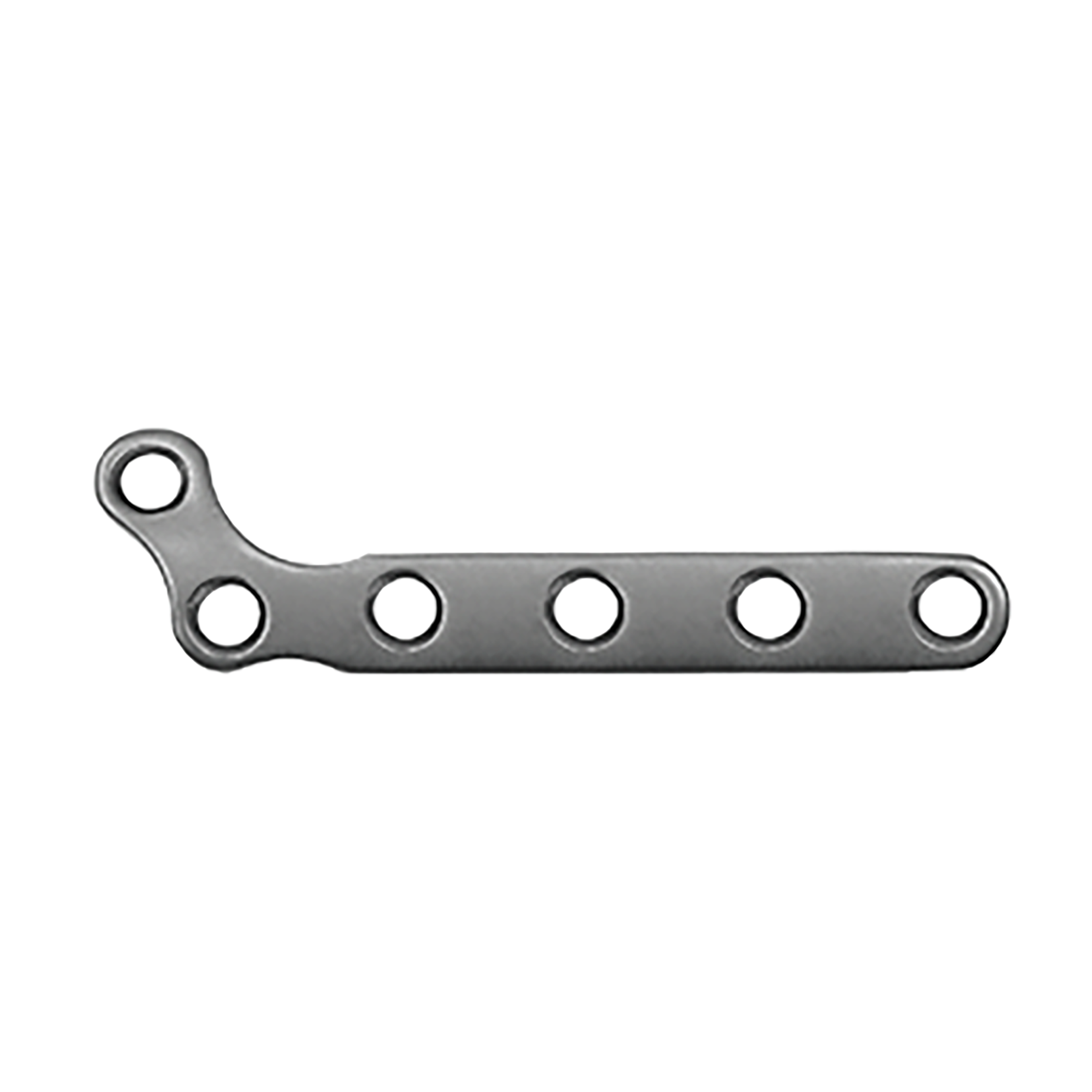

Curved 120° Phalange Locking Plates (Left and Right Types)
- Low incisure design: reduce the irritability for cartilage tissue;
- Anatomical design: reduce intraoperative shaping;
- Locking design: with the Angle stability;
- Easy shear design: reduce inventory pressure.
- Tapping design: easy for screw tapping in;
- Plum hexagonal design: reduce the risk of sliding tooth;
- Different specifications design: easy to various parts of fracture treatment.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 121021100040 / 121021100041 | 4 holes L | 40.5×5×1.2 | Pure Titanium |
| 121021200040 / 121021200041 | 4 holes R | 40.5×5×1.2 | Pure Titanium |
| 121021100050 / 121021100051 | 5 holes L | 48.5×5×1.2 | Pure Titanium |
| 121021200050 / 121021200051 | 5 holes R | 48.5×5×1.2 | Pure Titanium |
| 121021100060 / 121021100061 | 6 holes L | 56.5×5×1.2 | Pure Titanium |
| 121021200060 / 121021200061 | 6 holes R | 56.5×5×1.2 | Pure Titanium |
| 121021100070 / 121021100071 | 7 holes L | 64.5×5×1.2 | Pure Titanium |
| 121021200070 / 121021200071 | 7 holes R | 64.5×5×1.2 | Pure Titanium |
| 121021100080 / 121021100081 | 8 holes L | 72.5×5×1.2 | Pure Titanium |
| 121021200080 / 121021200081 | 8 holes R | 72.5×5×1.2 | Pure Titanium |
Notes:
- The last digit of the product number “0” means non-sterile and “1” means sterile.
- All other types: Used for phalange fracture, select HC2.0 screws.
