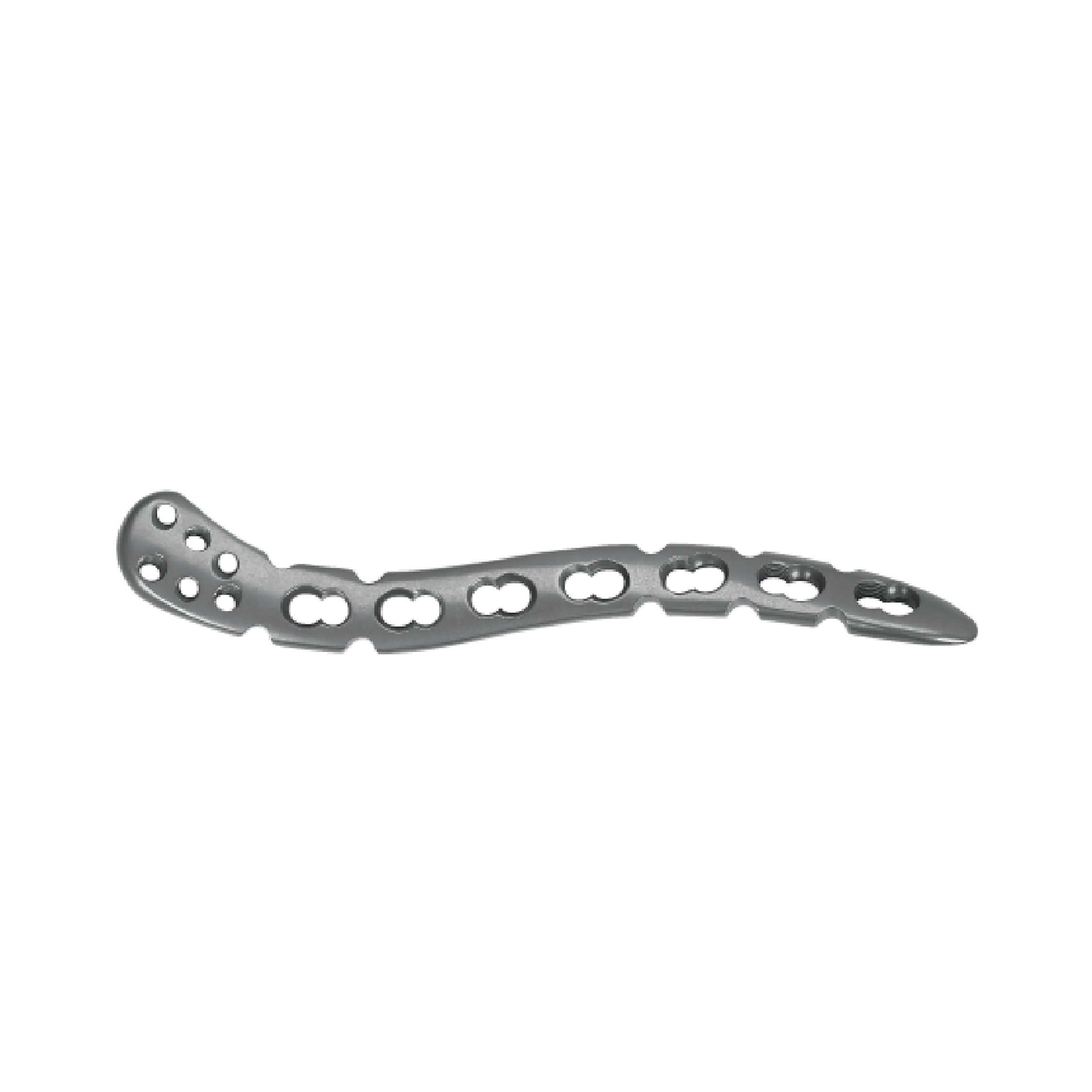

Distal Clavicle Locking Plates (Left and Right Types)
- Anatomical design: The plate shape accommodate humerus anatomy, fits close to minimize soft tissue irration;
- Limited-contact design: With advantages as preservation of blood supply to soft tissue and bone ,reunion of the bone fractures,etc;
- Articular multi-holes design: Convenient for fixing selection, with stable fixation;
- Combination locking and compression holes (Combi holes): Using angular stability or compression according to the requirements.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 1262211000040 / 1262211000041 | 4holes L | 80×11×2.8 | Pure Titanium |
| 1262212000040 / 1262212000041 | 4holes R | 80×11×2.8 | Pure Titanium |
| 1262211000050 / 1262211000051 | 5holes L | 93×11×2.8 | Pure Titanium |
| 1262212000050 / 1262212000051 | 5holes R | 93×11×2.8 | Pure Titanium |
| 1262211000060 / 1262211000061 | 6holes L | 106×11×2.8 | Pure Titanium |
| 1262212000060 / 1262212000061 | 6holes R | 106×11×2.8 | Pure Titanium |
| 1262211000070 / 1262211000071 | 7holes L | 119×11×2.8 | Pure Titanium |
| 1262212000070 / 1262212000071 | 7holes R | 119×11×2.8 | Pure Titanium |
| 1262211000080 / 1262211000081 | 8holes L | 132×11×2.8 | Pure Titanium |
| 1262212000080 / 1262212000081 | 8holes R | 132×11×2.8 | Pure Titanium |
| 1262211000090 / 1262211000091 | 9holes L | 145×11×2.8 | Pure Titanium |
| 1262212000090 / 1262212000091 | 9holes R | 145×11×2.8 | Pure Titanium |
The last digit of the product number “0” means non-sterile and “1” means sterile.
Remark: For clavicle fracture, select HC2.7, HC3.5, HA3.5 screws.
