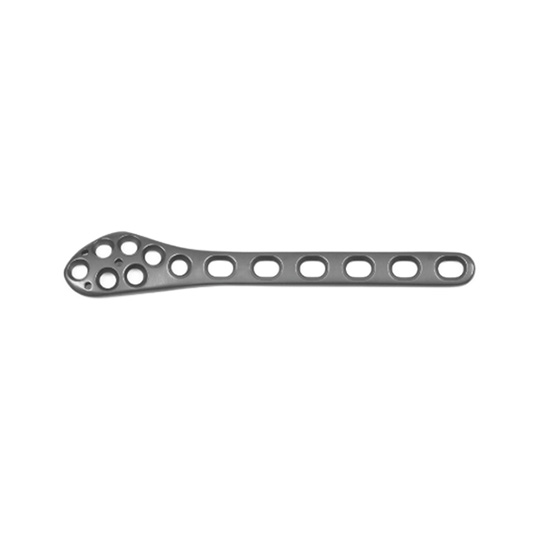

Distal Fibula Plates (Left and Right Types)
- Compression Fixation:Stability is achieved by pressing the plate tightly against the bone using standard cortical or cancellous screws.
- No Screw Locking Mechanism:Screws do not lock into the plate holes; fixation depends on friction between the plate and bone.
- Good Anatomical Adaptation:The plate can be shaped and contoured during surgery to match the natural anatomy of the bone.
- Flexible Intraoperative Adjustment:Surgeons can adjust plate position and screw placement during the procedure for better fracture reduction.
- Cost-Effective Solution:Compared with locking plates, non-locking plates are generally more economical and suitable for routine trauma cases.
- Suitable for Good Bone Quality:Best used in patients with normal bone density where strong screw purchase can be achieved.
- Wide Clinical Application:Commonly used for upper limb, lower limb, clavicle, fibula, radius, ulna, and other fracture fixation.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 164721100030 / 164721100031 | 3 holes L | 71.5×9.5×2.2 | Pure Titanium |
| 164721200030 / 164721200031 | 3 holes R | 71.5×9.5×2.2 | Pure Titanium |
| 164721100040 / 164721100041 | 4 holes L | 83.5×9.5×2.2 | Pure Titanium |
| 164721200040 / 164721200041 | 4 holes R | 83.5×9.5×2.2 | Pure Titanium |
| 164721100050 / 164721100051 | 5 holes L | 95.5×9.5×2.2 | Pure Titanium |
| 164721200050 / 164721200051 | 5 holes R | 95.5×9.5×2.2 | Pure Titanium |
| 164721100060 / 164721100061 | 6 holes L | 107.5×9.5×2.2 | Pure Titanium |
| 164721200060 / 164721200061 | 6 holes R | 107.5×9.5×2.2 | Pure Titanium |
| 164721100070 / 164721100071 | 7 holes L | 119.5×9.5×2.2 | Pure Titanium |
| 164721200070 / 164721200071 | 7 holes R | 119.5×9.5×2.2 | Pure Titanium |
| 164721100080 / 164721100081 | 8 holes L | 131.5×9.5×2.2 | Pure Titanium |
| 164721200080 / 164721200081 | 8 holes R | 131.5×9.5×2.2 | Pure Titanium |
Notes:
- The last digit of the product number “0” means non-sterile and “1” means sterile.
- Remark: For distal fibula fracture, choose HA3.5 and HB3.5 screws
