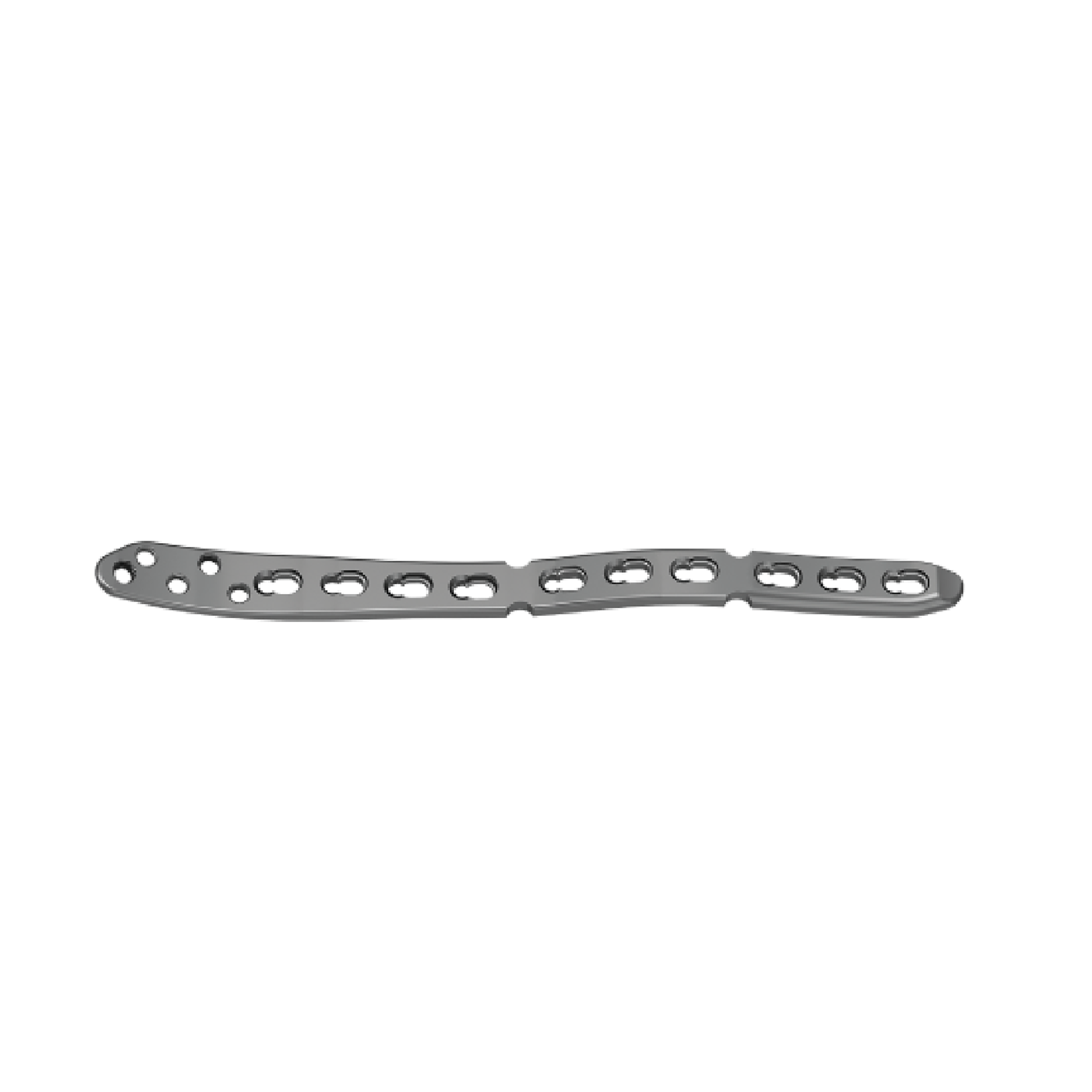

Distal Humerus Lateral Locking Plates (Left and Right Types)
- Anatomical design: The plate shape accommodate humerus anatomy, fits close to minimize soft tissue irration;
- Limited-contact design: With advantages as preservation of blood supply to soft tissue and bone ,reunion of the bone fractures,etc;
- Articular multi-holes design: Convenient for fixing selection, with stable fixation;
- Combination locking and compression holes (Combi holes): Using angular stability or compression according to the requirements.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 1253211000040 / 1253211000041 | 4holes L | 96.6×12×4 | Pure Titanium |
| 1253212000040 / 1253212000041 | 4holes R | 96.6×12×4 | Pure Titanium |
| 1253211000060 / 1253211000061 | 6holes L | 129.6×12×4 | Pure Titanium |
| 1253212000060 / 1253212000061 | 6holes R | 129.6×12×4 | Pure Titanium |
| 1253211000070 / 1253211000071 | 7holes L | 143.6×12×4 | Pure Titanium |
| 1253212000070 / 1253212000071 | 7holes R | 143.6×12×4 | Pure Titanium |
| 1253211000080 / 1253211000081 | 8holes L | 161.6×12×4 | Pure Titanium |
| 1253212000080 / 1253212000081 | 8holes R | 161.6×12×4 | Pure Titanium |
| 1253211000100 / 1253211000101 | 10holes L | 189.6×12×4 | Pure Titanium |
| 1253212000100 / 1253212000101 | 10holes R | 189.6×12×4 | Pure Titanium |
The last digit of the product number “0” means non-sterile and “1” means sterile.
Remark: For Middle and inferior segment of Medial Humerus fracture, select HC3.5、HA3.5 Screws.
