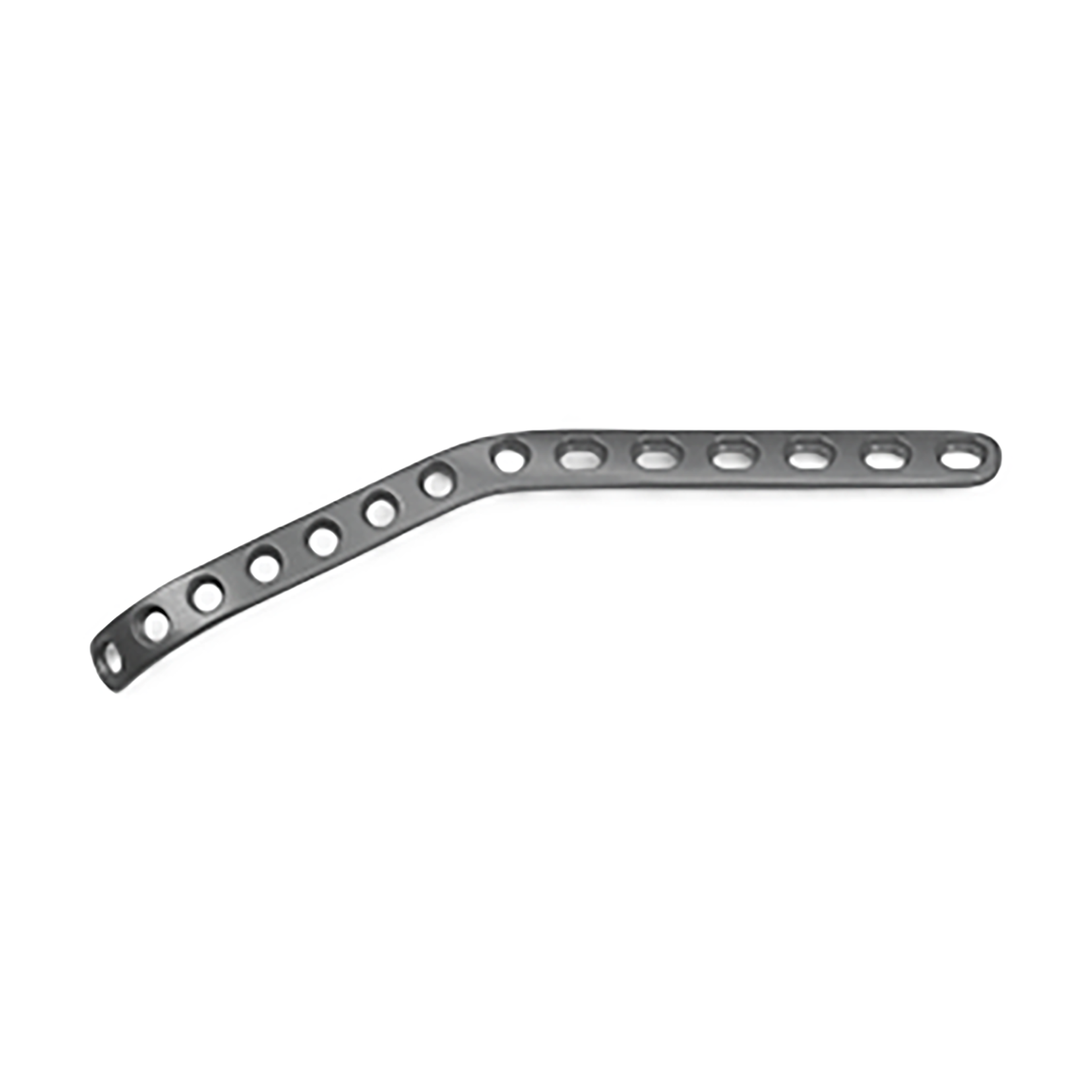

Distal Humerus Lateral Plates (Left and Right Types)
- Compression Fixation:Stability is achieved by pressing the plate tightly against the bone using standard cortical or cancellous screws.
- No Screw Locking Mechanism:Screws do not lock into the plate holes; fixation depends on friction between the plate and bone.
- Good Anatomical Adaptation:The plate can be shaped and contoured during surgery to match the natural anatomy of the bone.
- Flexible Intraoperative Adjustment:Surgeons can adjust plate position and screw placement during the procedure for better fracture reduction.
- Cost-Effective Solution:Compared with locking plates, non-locking plates are generally more economical and suitable for routine trauma cases.
- Suitable for Good Bone Quality:Best used in patients with normal bone density where strong screw purchase can be achieved.
- Wide Clinical Application:Commonly used for upper limb, lower limb, clavicle, fibula, radius, ulna, and other fracture fixation.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 162621100120 / 162621100121 | 12 holes L | 124.5×11.5×2.5 | Pure Titanium |
| 162621200120 / 162621200121 | 12 holes R | 124.5×11.5×2.5 | Pure Titanium |
| 162621100140 / 162621100141 | 14 holes L | 148.5×11.5×2.5 | Pure Titanium |
| 162621200140 / 162621200141 | 14 holes R | 148.5×11.5×2.5 | Pure Titanium |
| 162621100160 / 162621100161 | 16 holes L | 172.5×11.5×2.5 | Pure Titanium |
| 162621200160 / 162621200161 | 16 holes R | 172.5×11.5×2.5 | Pure Titanium |
| 162621100180 / 162621100181 | 18 holes L | 196.5×11.5×2.5 | Pure Titanium |
| 162621200180 / 162621200181 | 18 holes R | 196.5×11.5×2.5 | Pure Titanium |
Notes:
- The last digit of the product number “0” means non-sterile and “1” means sterile.
- Remark: For distal humerus lateral, fibula, and humerus diaphysis fracture, choose HA3.5 and HB3.5 screws
