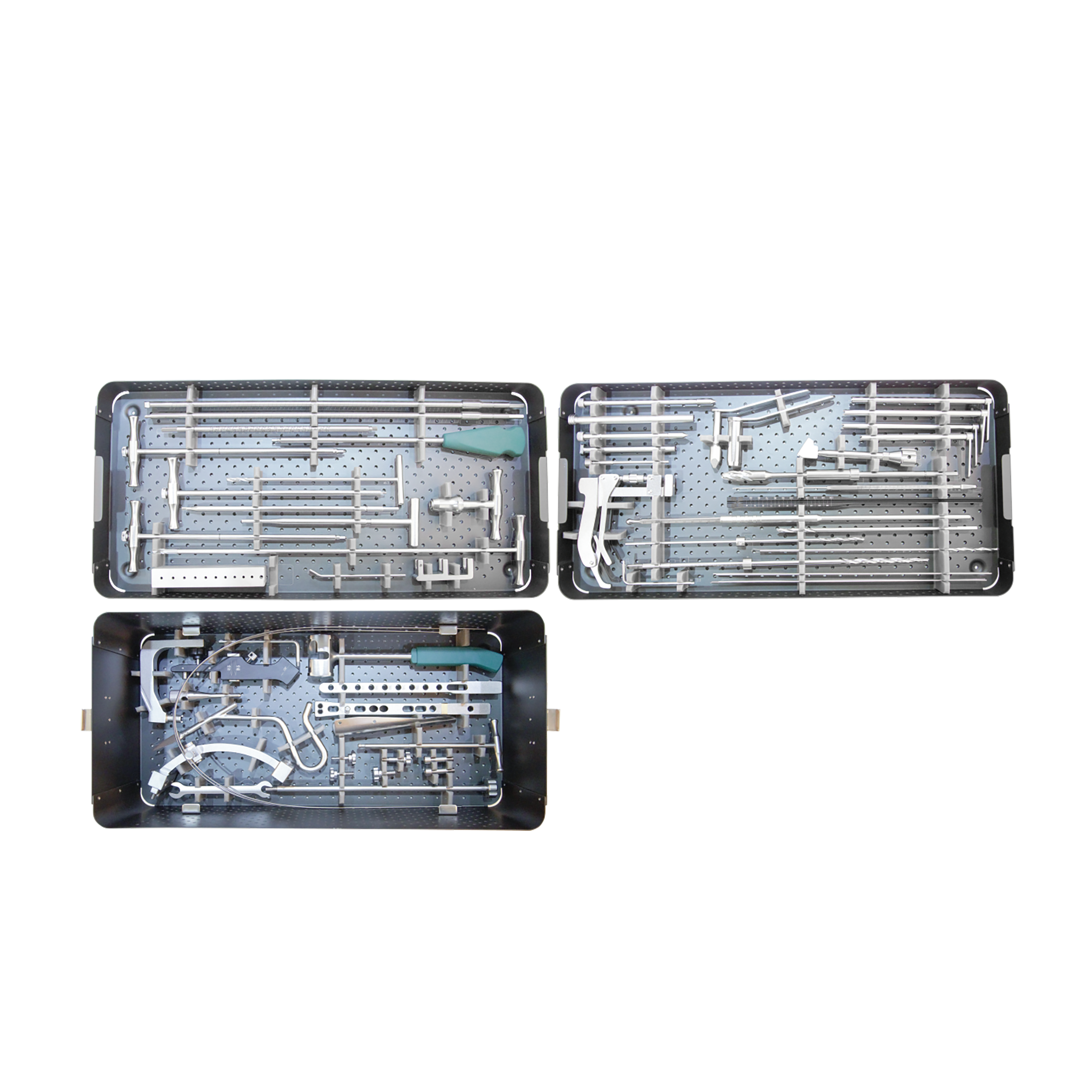

Expert Femur Nail Instrument Set

Intramedullary Nail
The primary implant inserted along the bone’s medullary canal through a small incision to stabilize the fracture.
Reamers
Used to prepare the medullary canal by gradually enlarging the bone channel to fit the nail.
Locking Bolts / Screws
Inserted through the cortical bone into the nail to prevent rotation and shortening.
Guides
Ensure accurate alignment and screw placement during nail insertion.
Bone Awls
Create pilot holes in the cortical bone for locking screw insertion.
Extractors
Used to remove the intramedullary nail once the fracture has healed.
Wrenches
Tighten or loosen locking screws and other components.
Surgical Drills
Create pilot holes for screw insertion during surgery.

More Information About Our Products

Parameter List

No.	Device No.	Device Name
1	QI002-01	Inserter extractor device
2	QI002-02	Guide rod connecting locking wheel
3	QI002-03	Guide rod locking wheel
4	QI002-04	Guide pin holder
5	QI002-05	Depth gauge for guide pin
6	QI002-06	Guide pin drill sleeve
7	QI002-07	Locating rod +sleeve
8	QI002-08	Locating rod drill
9	QI002-09	Locating rod drill sleeve
10	QI002-10	Locating rock
11	QI002-11	Reset rod
12	QI002-12	Skin protection plate
13	QI002-13	Proximal guide rod
14	QI002-14	Proximal step drill+stop
15	QI002-15	Proximal hard reamer+stop
16	QI002-16	T-handle for quick installation
17	QI002-17	Connecting bolt
18	QI002-18	Hollow screwdriver for locking screw
19	QI002-19	Quick installation wrench for locking screw
20	QI002-20	Threaded guide pin Φ2.5×320
21	QI002-21	Flat drill
22	QI002-22	Ballhead guide pin
23	QI002-23	Soft reamer rod
24	QI002-24	Reamer head Φ8.5 ~ Φ13
25	QI002-25	Soft tissue separator (long)
26	QI002-26	Soft tissue separator (short)
27	QI002-27	Handle
28	QI002-28	Locking screw wrench SW3.5
29	QI002-29	Depth gauge for locking screw hole
30	QI002-30	Drill bit for locking screw hole+stop
31	QI002-31	Locking screw hole sleeve
32	QI002-32	Locking screw hole drill sleeve
33	QI002-33	Locking wheel wrench SW5
34	QI002-34	End cap wrench
35	QI002-35	Stop wrench SW3
36	QI002-36	Distal guide rod
37	QI002-37	Distal locating device
38	QI002-38	Hollow awl
39	QI002-39	Main nail inserter extractor connecting rod
40	QI002-40	Soft reamer rod
41	QI002-41	Hex screwdriver
42	QI002-42	Small wrench
43	QI002-43	Guide rod for slide hammer
44	QI002-44	Open wrench
45	QI002-45	Protection inner core
46	QI002-46	Protection sleeve
47	QI002-47	Depth gauge
48	QI002-48	Slide hammer
49	QI002-49	Targeting arm
50	QI002-50	Flexible hex screwdriver
51	QI002-51	T-shaped universal wrench
52	QI002-52	Locking screw hole sleeve
