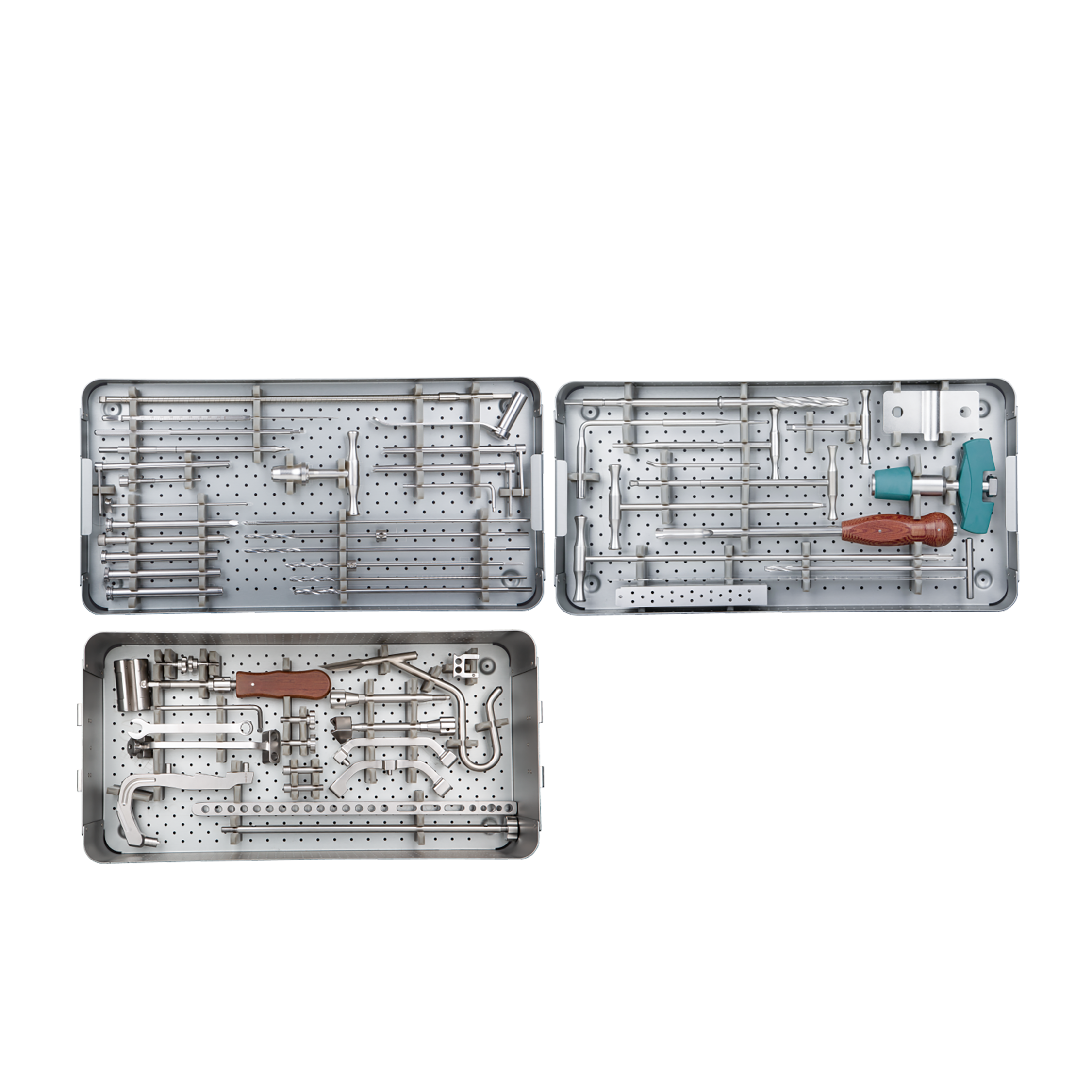

Expert Tibia Nail Instrument Set

Intramedullary Nail
The primary implant inserted along the bone’s medullary canal through a small incision to stabilize the fracture.
Reamers
Used to prepare the medullary canal by gradually enlarging the bone channel to fit the nail.
Locking Bolts / Screws
Inserted through the cortical bone into the nail to prevent rotation and shortening.
Guides
Ensure accurate alignment and screw placement during nail insertion.
Bone Awls
Create pilot holes in the cortical bone for locking screw insertion.
Extractors
Used to remove the intramedullary nail once the fracture has healed.
Wrenches
Tighten or loosen locking screws and other components.
Surgical Drills
Create pilot holes for screw insertion during surgery.

More Information About Our Products

No.	Device No.	Device Name
1	QI004-01	T wrench for locking screw SW3.5
2	QI004-02	Protection sleeve
3	QI004-03	Guide pin holder
4	QI004-04	Locating rod
5	QI004-05	Flat drill for locating rod
6	QI004-06	Locating rod drill sleeve
7	QI004-07	Locating rod drill
8	QI004-08	Locating rock
9	QI004-09	Reset rod
10	QI004-10	Depth gauge
11	QI004-11	Drill bit-stop
12	QI004-12	Drill bit Φ3.2+stop
13	QI004-13	Skin protection plate
14	QI004-14	Slide hammer
15	QI004-15	Guide rod for slide hammer
16	QI004-16	Compression bolt
17	QI004-17	Proximal reaming drill
18	QI004-18	Proximal targeting device+locking wheel
19	QI004-19	Proximal cancellous targeting device+locking wheel
20	QI004-20	Open wrench
21	QI004-21	T-handle for quick installation
22	QI004-22	Connecting bolt
23	QI004-23	Connecting bolt wrench
24	QI004-24	Connecting bolt universal wrench
25	QI004-25	Threaded guide pin Φ3.2×300
26	QI004-26	Ballhead guide pin (optional)
27	QI004-27	Soft reamer rod
28	QI004-28	Reamer head Φ8.5 ~ Φ12
29	QI004-29	Soft tissue separator
30	QI004-30	Handle
31	QI004-31	Cancellous sleeve assembly
32	QI004-32	Quick installation wrench for locking screw SW3.5
33	QI004-33	Locking wheel wrench SW5
34	QI004-34	Outside sleeve
35	QI004-35	Locking plug retaining device
36	QI004-36	Developing template
37	QI004-37	Stop wrench
38	QI004-38	Small wrench
39	QI004-39	Distal guide rod
40	QI004-40	Distal guide rod locking wheel
41	QI004-41	Distal targeting device+locking wheel
42	QI004-42	Hollow awl
43	QI004-43	Hollow chisel
44	QI004-44	Main nail inserter
45	QI004-45	Main nail extraction connecting rod
46	QI004-46	Drill sleeve
47	QI004-47	Auxiliary locating rod
