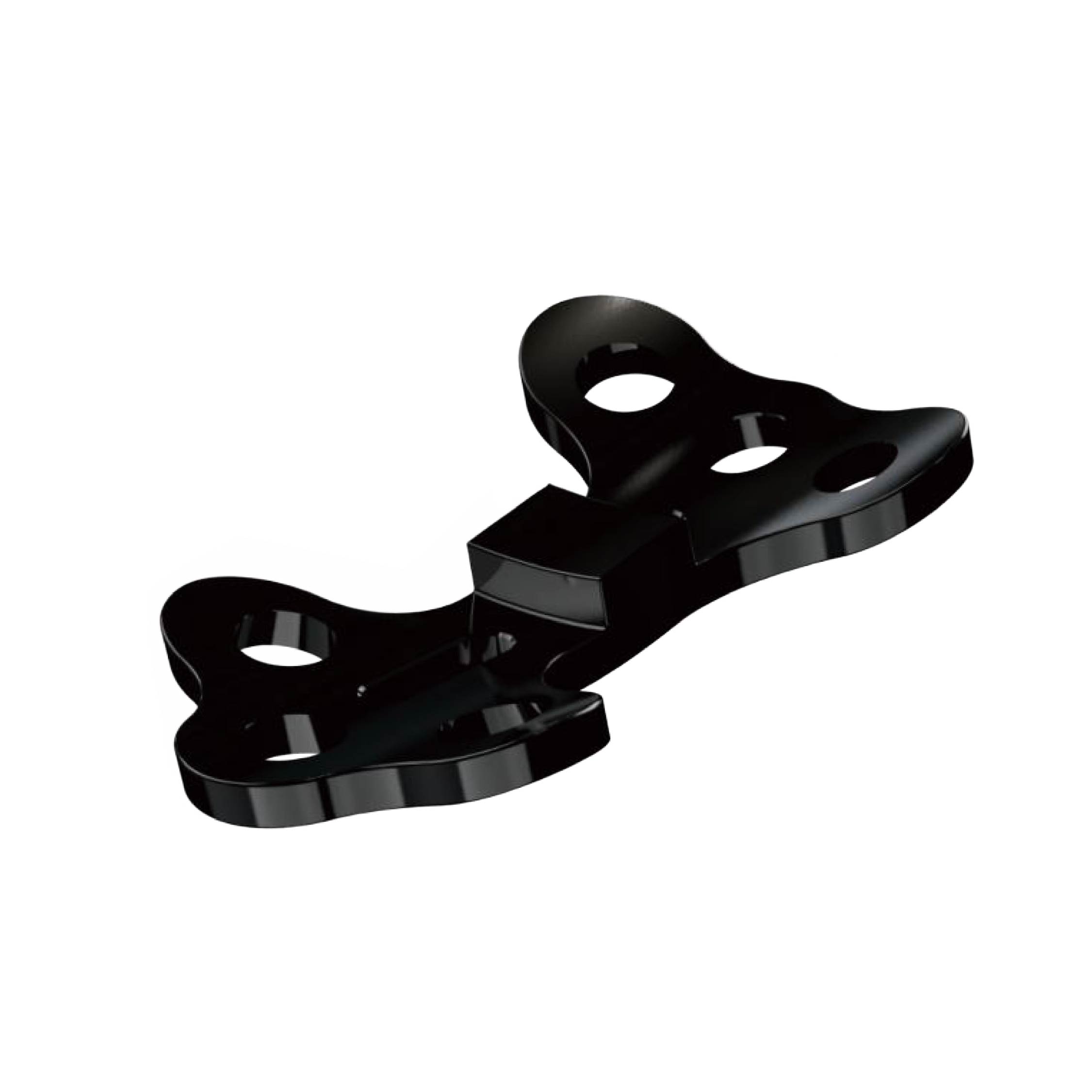

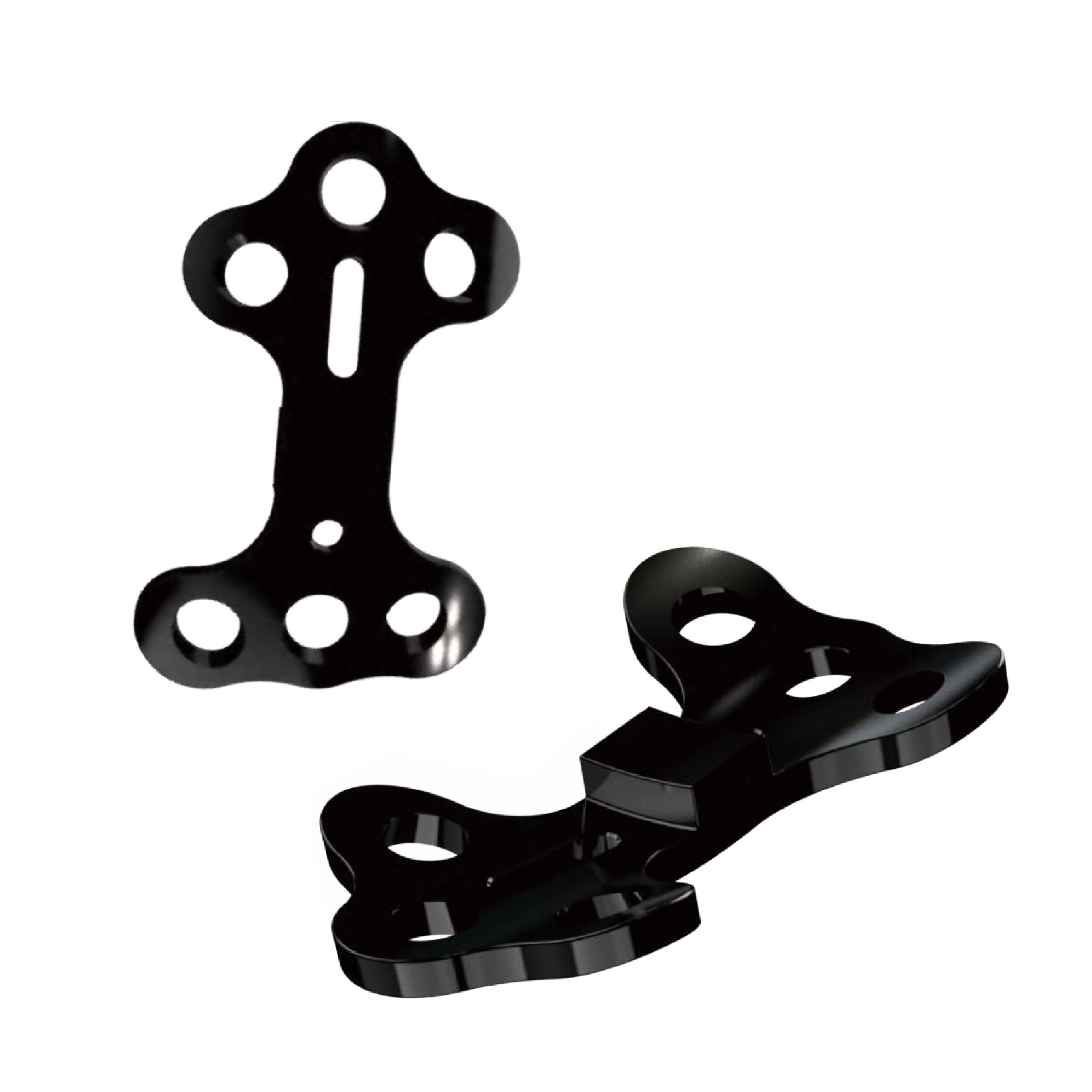

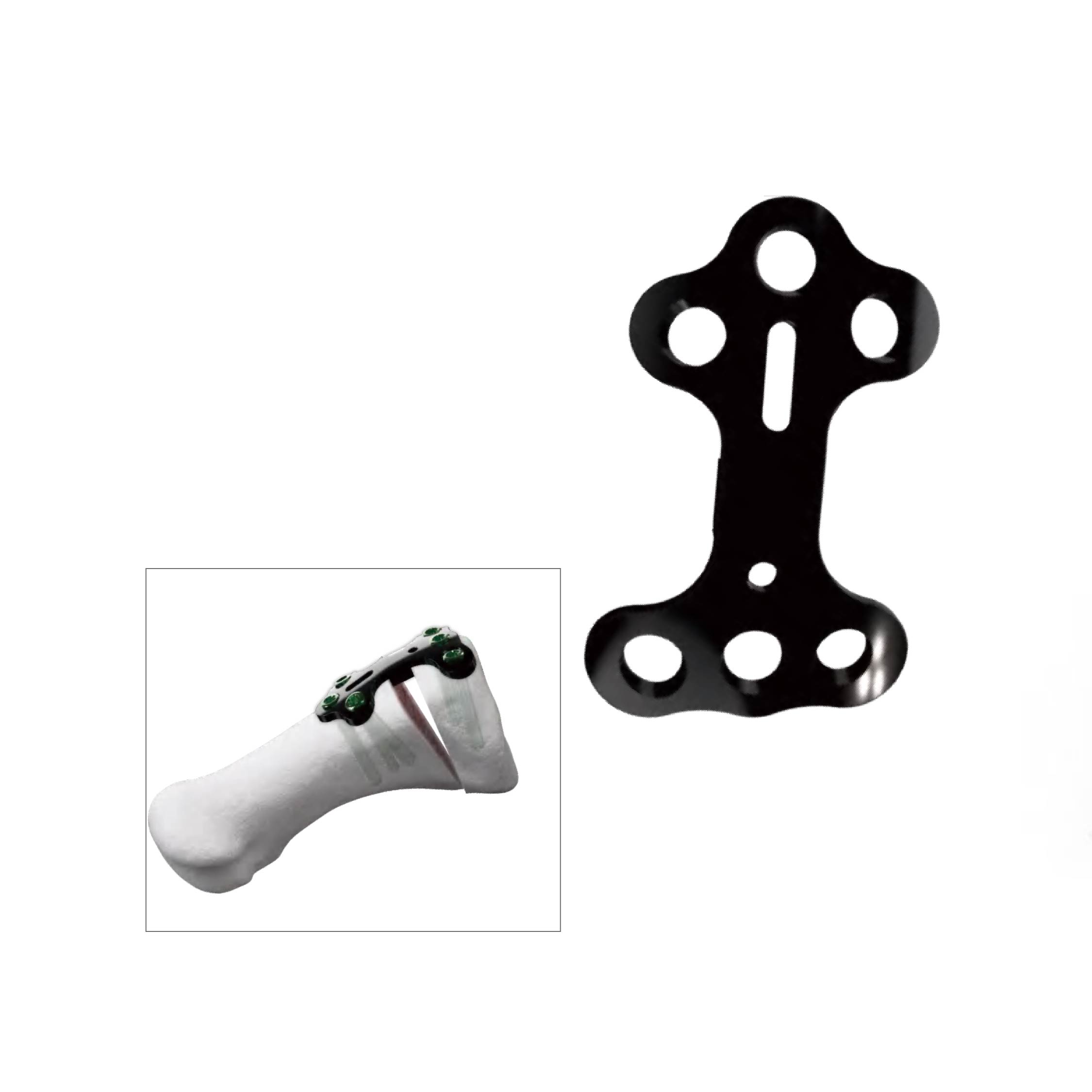

First Metatarsal Base Distraction Osteotomy Plate
- Indicated for hallux valgus angle > 40°, metatarsal angle 16°~18°.

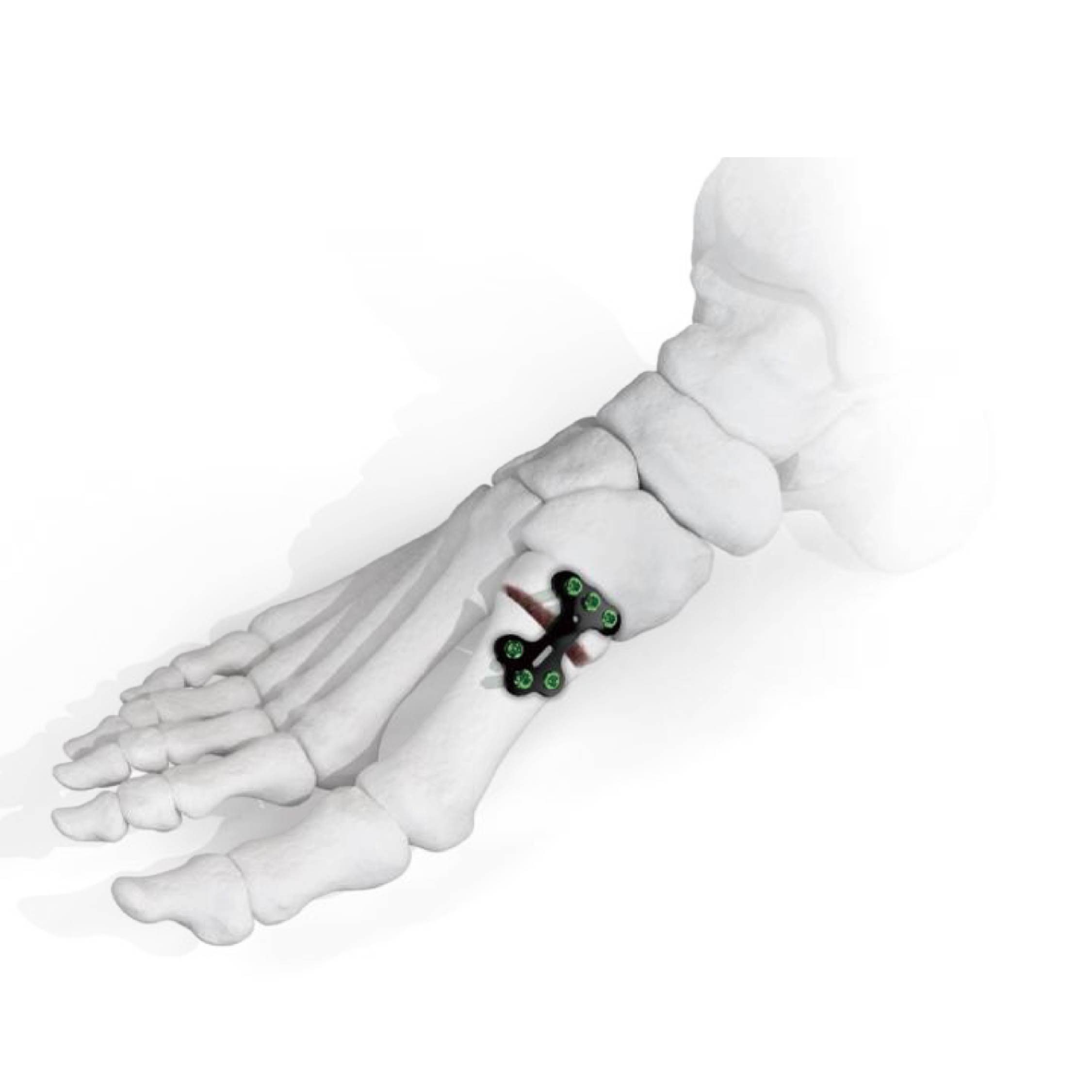

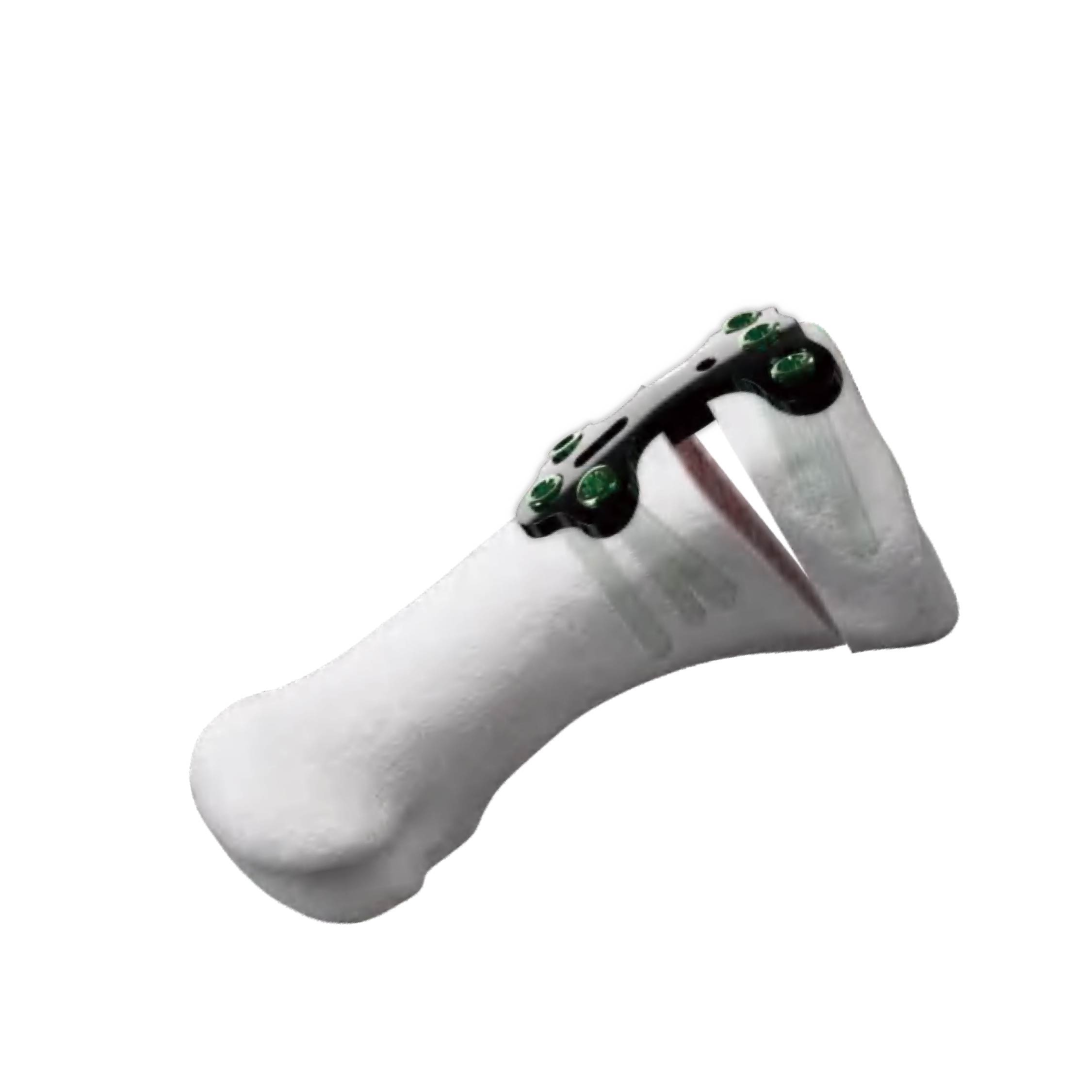

- Wedge shaped open osteotomy near the base, incomplete truncation.
- The plate can be placed either medially or dorsally.
- Based on mechanical analysis, the hole distribution at both ends of the plate is optimized.
More Information About Our Products
- Parameter List

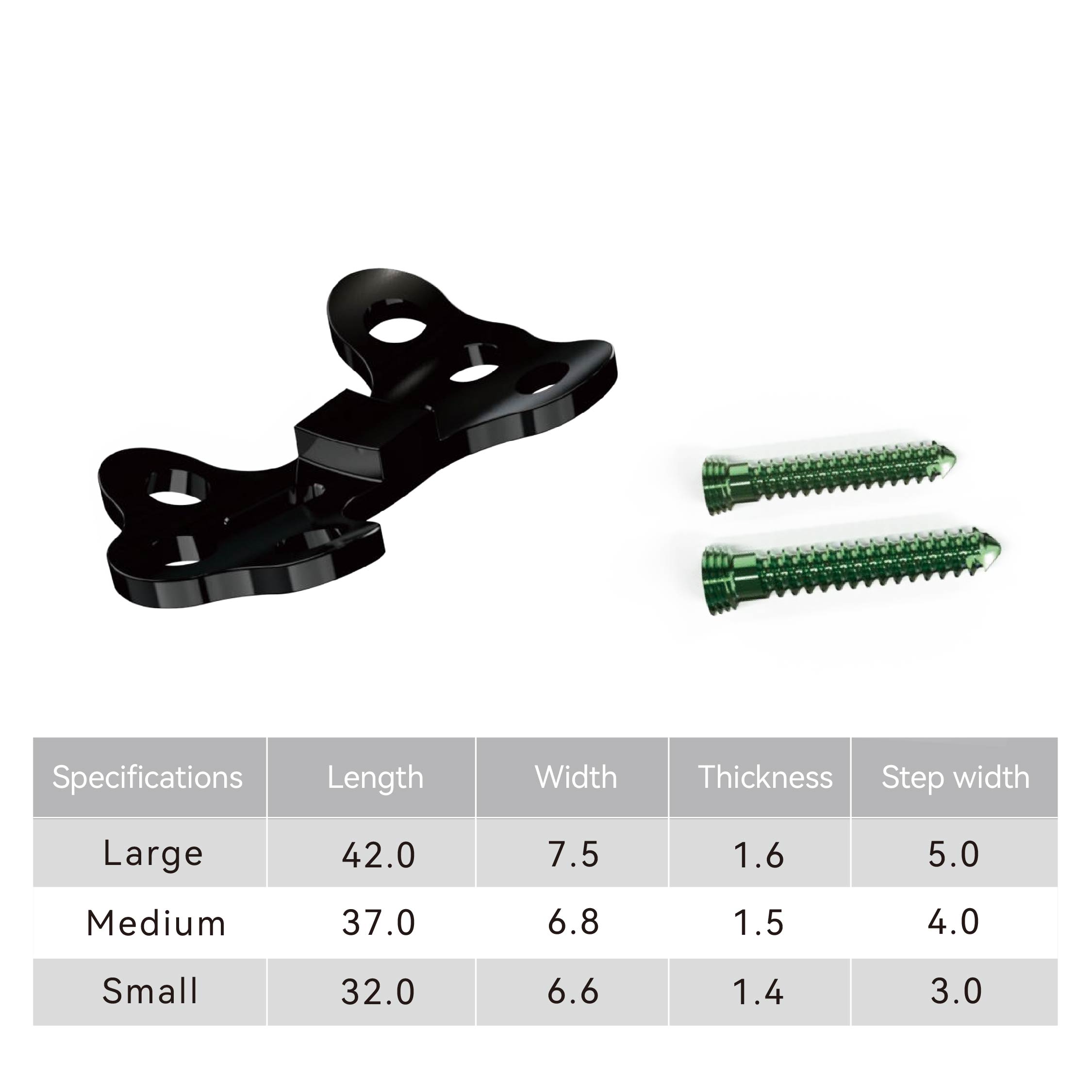

| Specifications | Length (mm) | Width (mm) | Thickness (mm) | Step width (mm) |
|---|---|---|---|---|
| Large | 42.0 | 7.5 | 1.6 | 5.0 |
| Medium | 37.0 | 6.8 | 1.5 | 4.0 |
| Small | 32.0 | 6.6 | 1.4 | 3.0 |
Indications
- Moderate to severe hallux valgus deformity.
- The angle between the 1st and 2nd metatarsals (IMA) is greater than 13°.
Screw Information
- Matching screw: 2.4/2.7 self tapping locking screw
- Length: 6–40mm, available in increments of 2mm
- Kirschner wire: 1.4mm
- Material: TC4 titanium alloy
Key Points
- Wedge shaped osteotomy near the base, incomplete truncation.
- Medial midline straight incision fully exposes the metatarsophalangeal joint and the proximal end of the proximal phalangeal shaft.
- A 40–60mm long medial longitudinal incision is made at the junction of the metatarsal dorsum and plantar skin.
- Incision starts from the middle of the first metatarsal shaft and extends towards the proximal end, close to the medial cuneiform bone.
- Soft tissue laxity is required.
