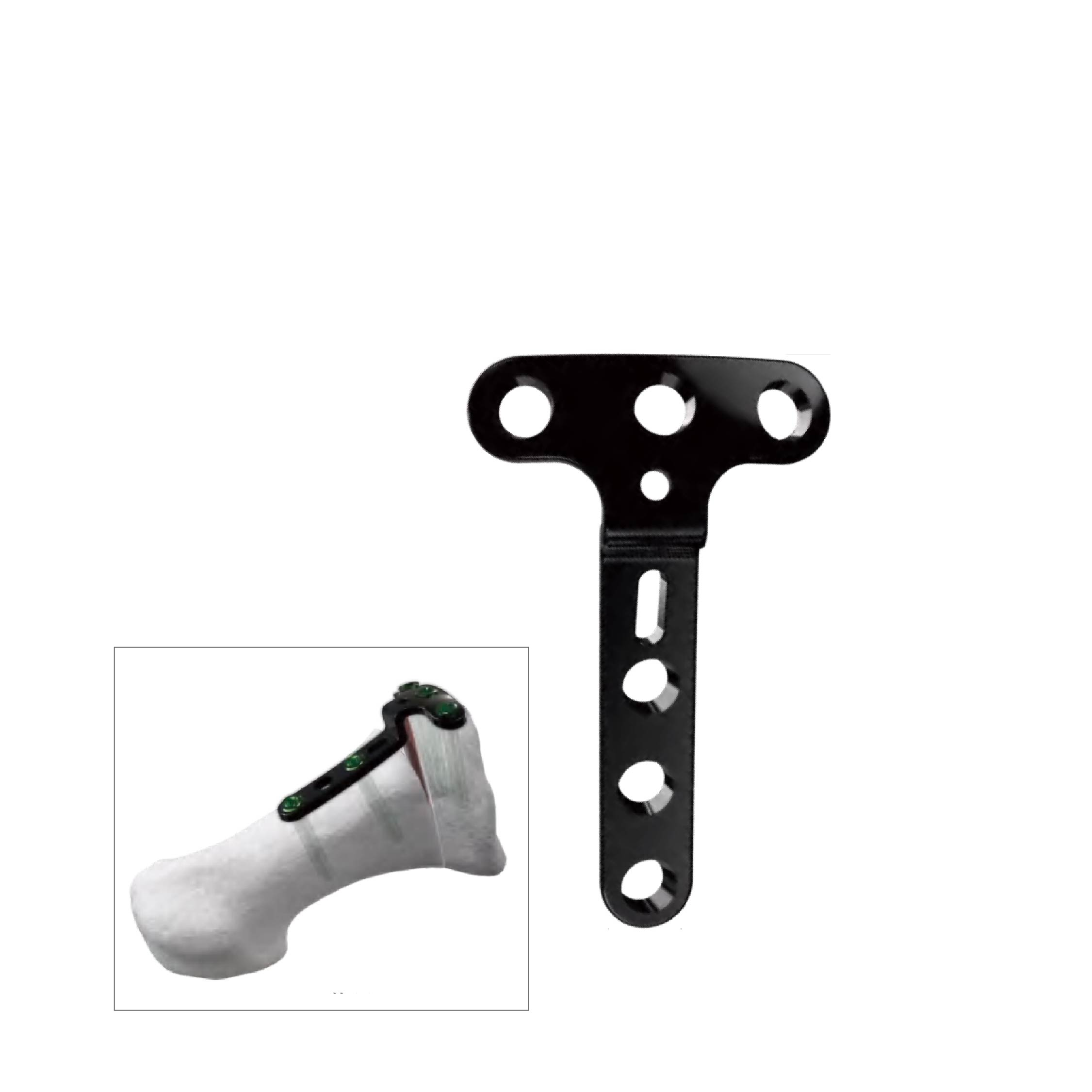

First Metatarsal Proximal Osteotomy Step Plate
- Indicated for hallux valgus angle > 40°, metatarsal angle 16°–18°.
- Dual Orthopedic Ability Enhancement.

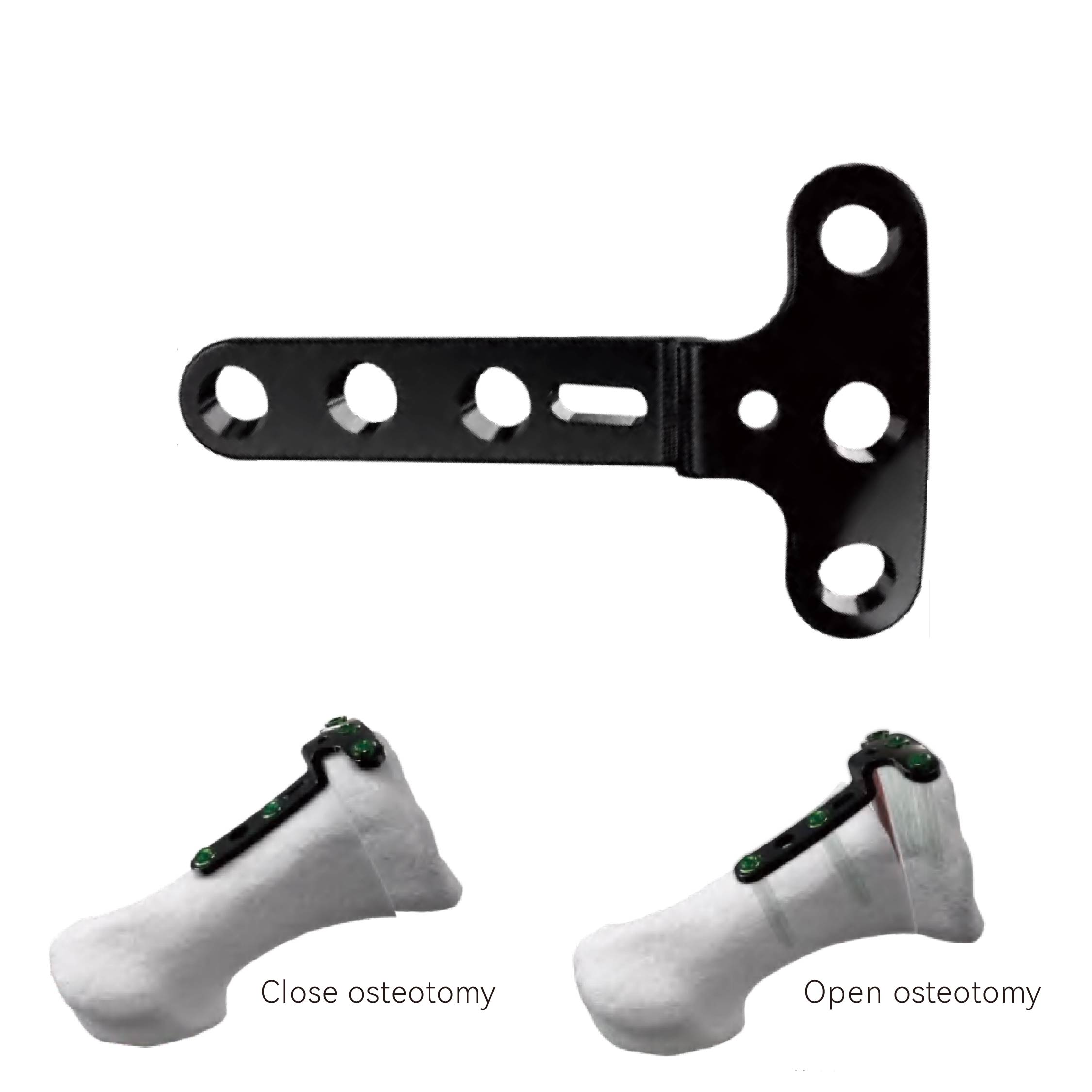

- Supports both open and close osteotomy correction.
- Loaded with extrapolated step correction capability.
- Osteotomy is 15mm away from the metatarsal wedge joint surface, with complete amputation.
- Osteotomy width: 3–5mm.
- Long arm angle follows shape: 5°, 10°, 15°.
More Information About Our Products
- Parameter List

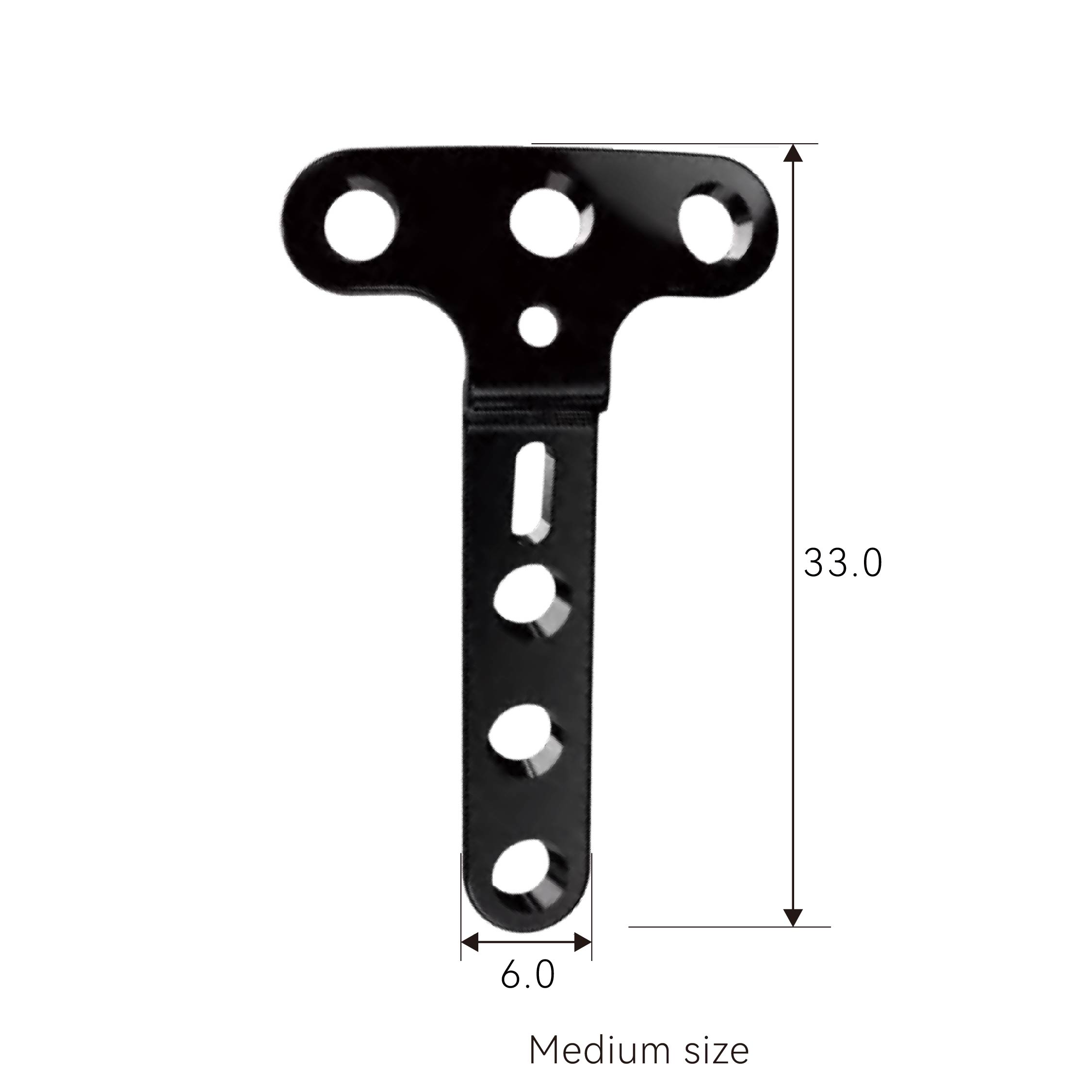

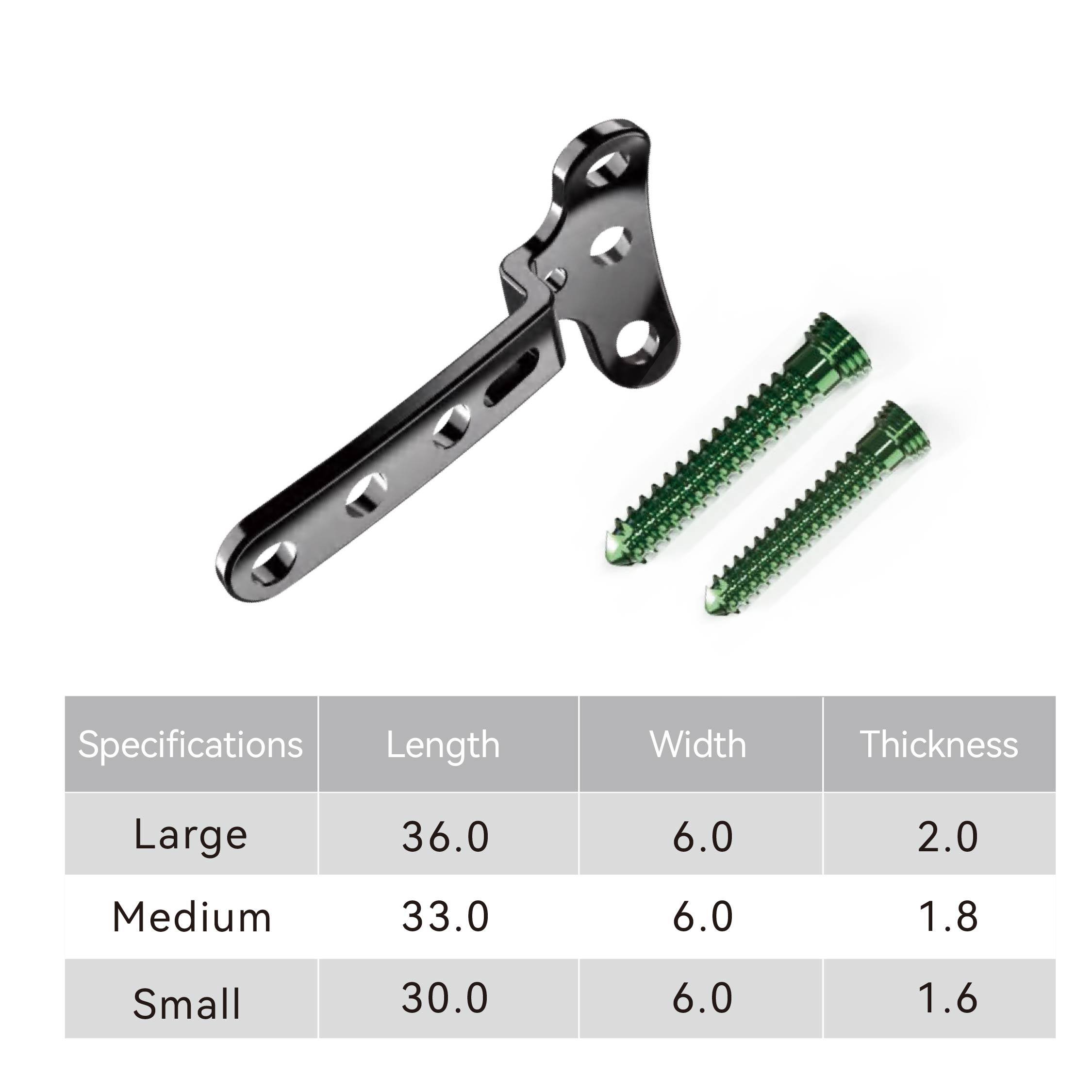

| Specifications | Length (mm) | Width (mm) | Thickness (mm) |
|---|---|---|---|
| Large | 36.0 | 6.0 | 2.0 |
| Medium | 33.0 | 6.0 | 1.8 |
| Small | 30.0 | 6.0 | 1.6 |
Indications
- Severe hallux valgus deformity.
- IMA (Intermetatarsal Angle) between the 1st and 2nd metatarsals > 16°.
Screw Information
- Matching screw: 2.4/2.7 self tapping locking screw
- Length: 6–40mm
- Kirschner wire: 1.5mm
- Material: TC4 titanium alloy
Key Points

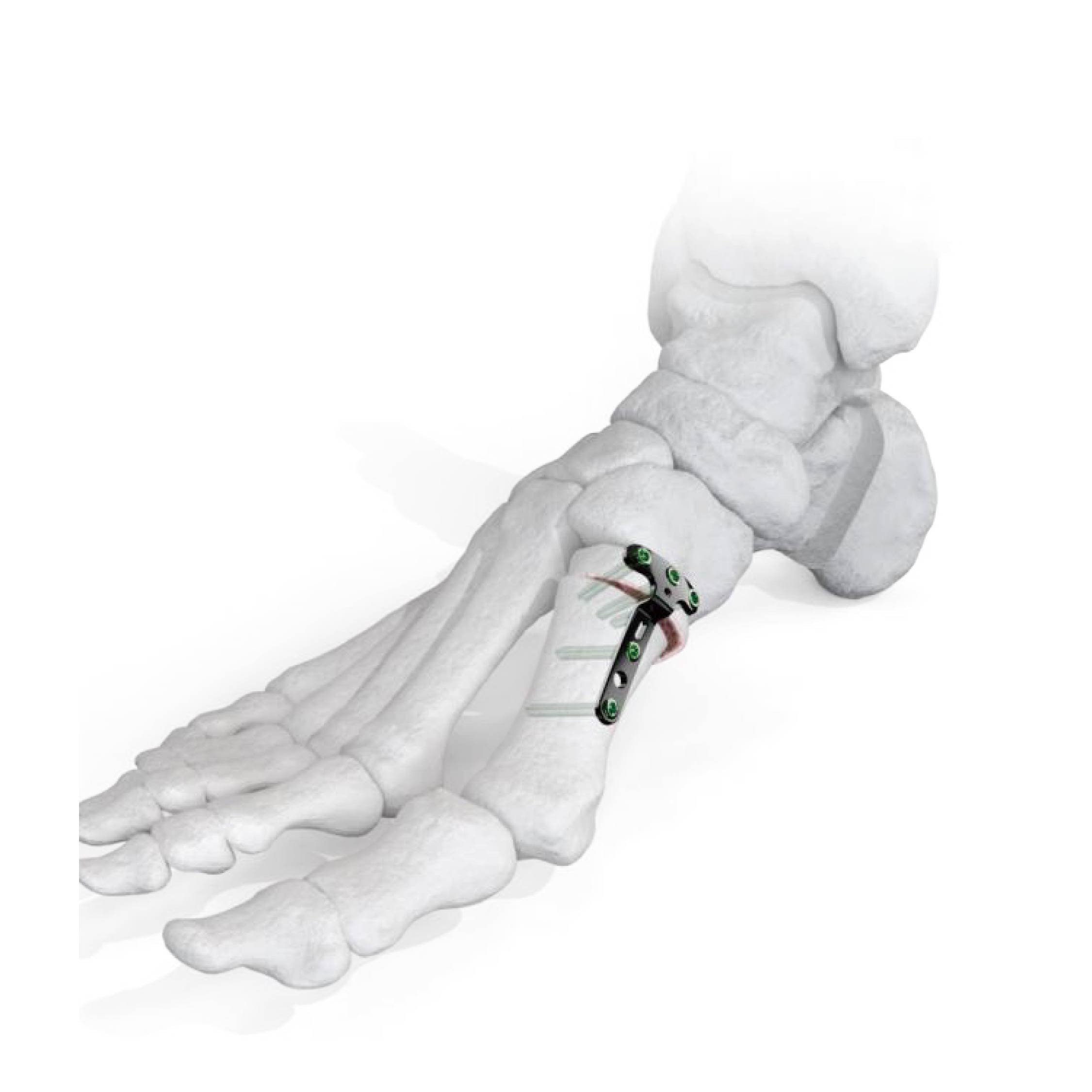

- Make a 40–60mm long medial longitudinal incision at the junction of the first metatarsal dorsum and plantar skin.
- Incision extends from the middle of the first metatarsal shaft toward the proximal end, close to the medial cuneiform bone.

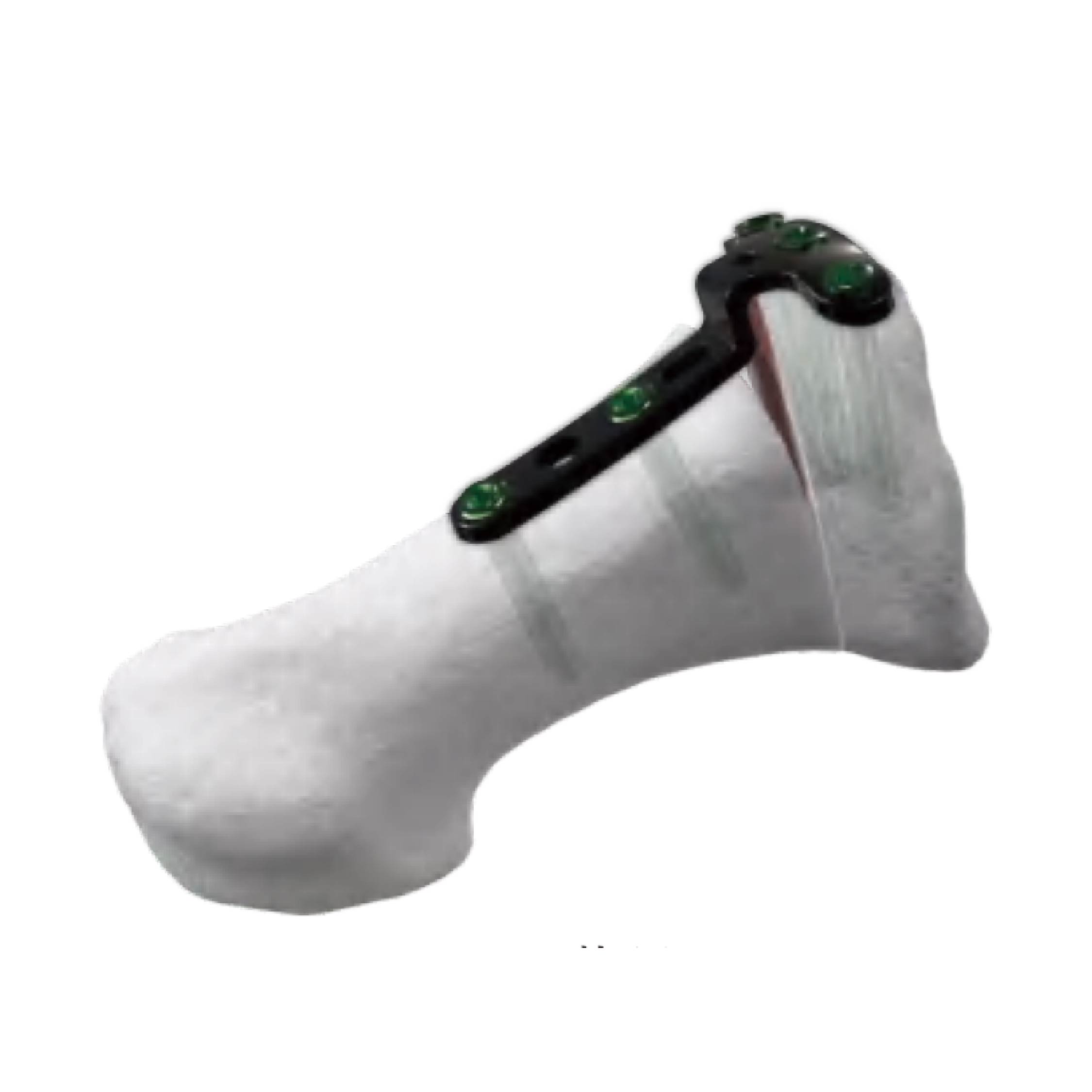

- Perform a wedge-shaped osteotomy near the base, completely cutting it off.
- Soft tissue laxity is required.
