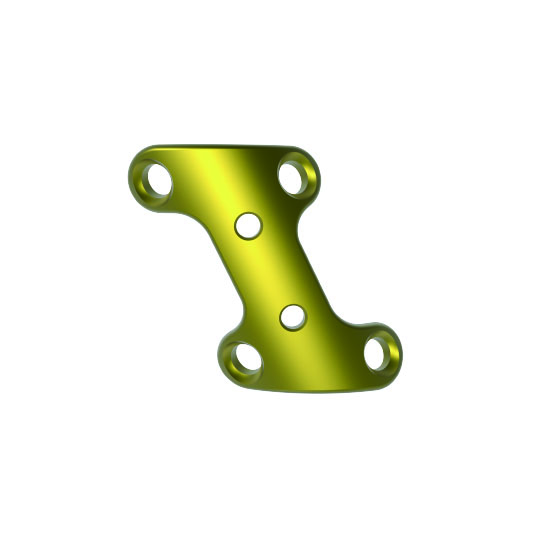

H-shaped Locking Plate-2
- Used to meet the complex needs of surgeries such as calcaneal fractures and orthotics.
- Suitable for open calcaneal fractures, minimally invasive approaches to calcaneal fractures, type I Ⅱ Ⅲ fractures, calcaneal osteotomy, internal and external column reconstruction, etc.
- The posterior foot series bone plates are all made of pure titanium, which facilitates shaping during surgery and provides patients with better anatomical shapes.
- The calcaneal plate is used in conjunction with low cut locking screws to provide angle locking while reducing stimulation to soft tissues.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 6941883924103 | 4-18 | 29×16.3×1.5 | TA3G |
| 6941883924110 | 4-20 | 31×16.3×1.5 | TA3G |
| 6941883924127 | 4-22 | 33×16.3×1.5 | TA3G |
| 6941883924134 | 4-24 | 35×16.3×1.5 | TA3G |
Indication: Middle and hind foot trauma and orthopedic
Adaptation Screw: 2.7 self tapping locking/compression screw
Adaptation Screw: 2.7 self tapping locking/compression screw
