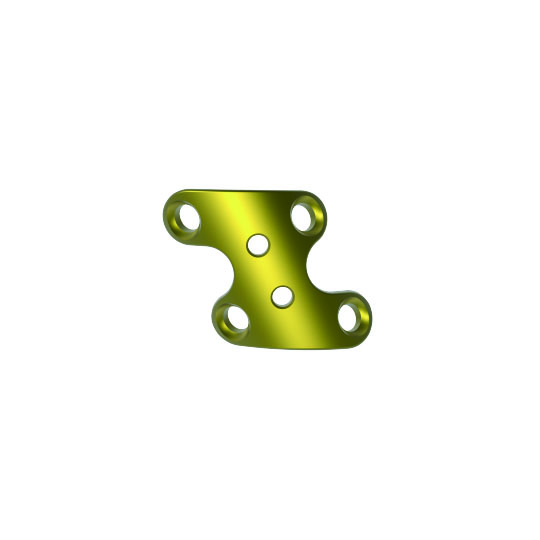

H-shaped Locking Plate-3

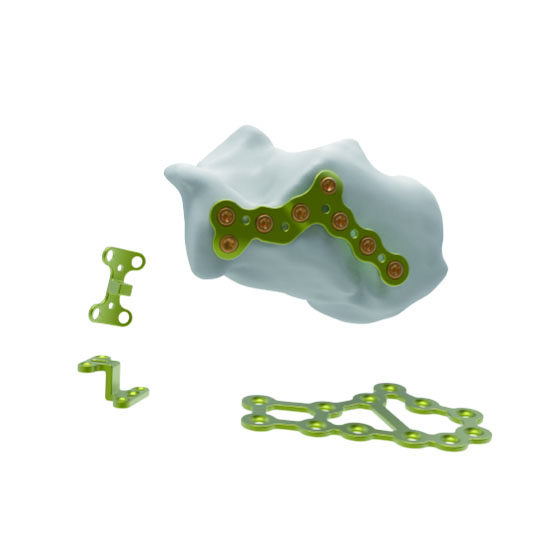

- Used to meet the complex needs of surgeries such as calcaneal fractures and orthotics.
- Suitable for open calcaneal fractures, minimally invasive approaches to calcaneal fractures, type I Ⅱ Ⅲ fractures, calcaneal osteotomy, internal and external column reconstruction, etc.
- The posterior foot series bone plates are all made of pure titanium, which facilitates shaping during surgery and provides patients with better anatomical shapes.
- The calcaneal plate is used in conjunction with low cut locking screws to provide angle locking while reducing stimulation to soft tissues.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 6941883924141 | 4-12 | 23.1×16.5×1.5 | TA3G |
| 6941883924158 | 4-16 | 27.1×16.5×1.5 | TA3G |
| 6941883924165 | 4-20 | 31.1×16.5×1.5 | TA3G |
| 6941883924172 | 4-24 | 35.1×16.5×1.5 | TA3G |
| 6941883924189 | 4-30 | 41.1×16.5×1.5 | TA3G |
Indication: Middle and hind foot trauma and orthopedic
Adaptation Screw: 2.7 self tapping locking/compression screw
