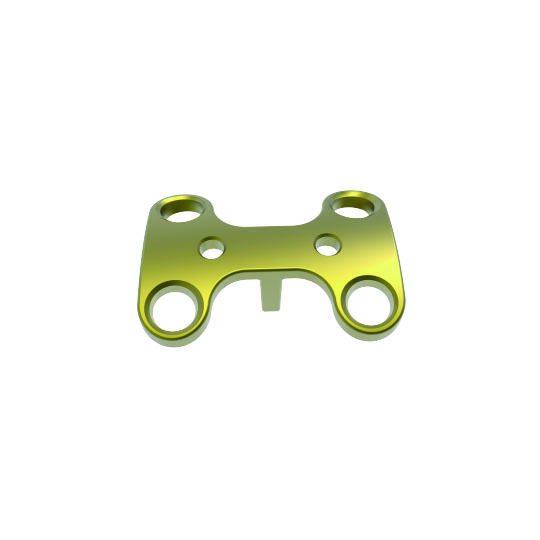

H-shaped Locking Plate-4
- Used to meet the complex needs of surgeries such as calcaneal fractures and orthotics.
- Suitable for open calcaneal fractures, minimally invasive approaches to calcaneal fractures, type I Ⅱ Ⅲ fractures, calcaneal osteotomy, internal and external column reconstruction, etc.
- The posterior foot series bone plates are all made of pure titanium, which facilitates shaping during surgery and provides patients with better anatomical shapes.
- The calcaneal plate is used in conjunction with low cut locking screws to provide angle locking while reducing stimulation to soft tissues.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Thickness(mm) | Material |
|---|---|---|---|
| 6941883924196 | 4-2 | 22×6.9 | TA3G |
| 6941883924202 | 4-4 | 24×6.9 | TA3G |
| 6941883924219 | 4-6 | 26×6.9 | TA3G |
| 6941883924226 | 4-8 | 28×6.9 | TA3G |
Indication: Extension of lateral column
Adaptation Screw: 3.5 Low cut locking screw
