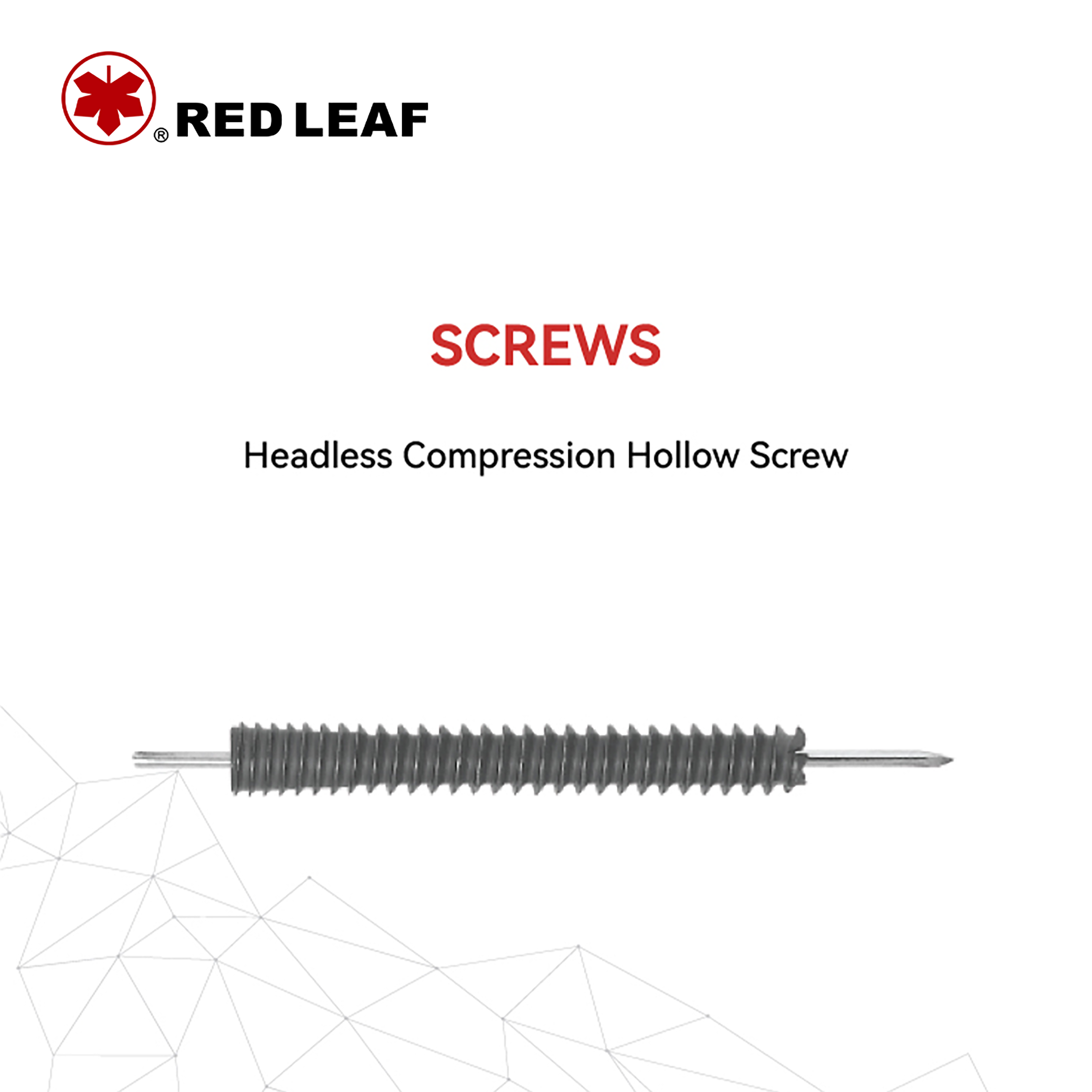

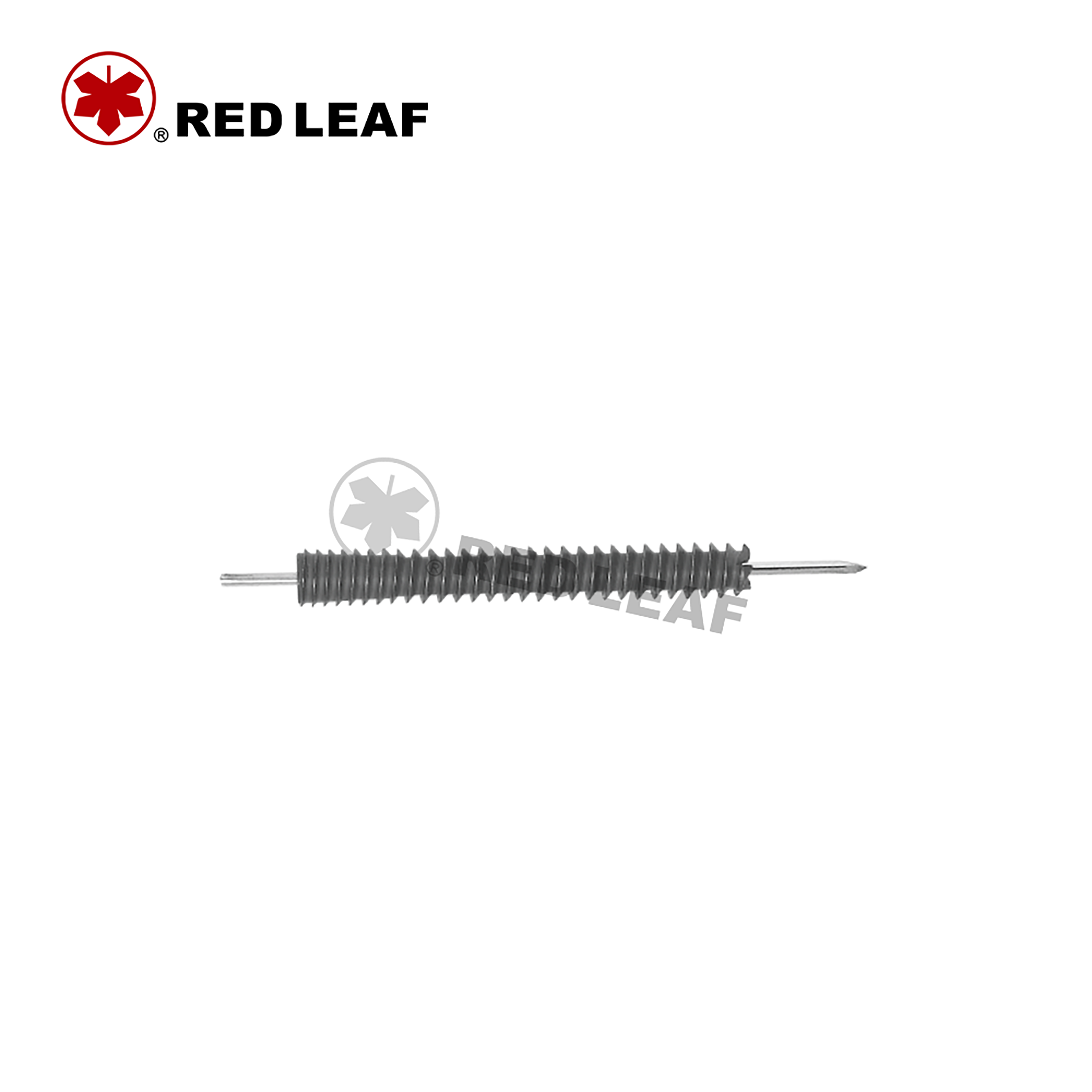

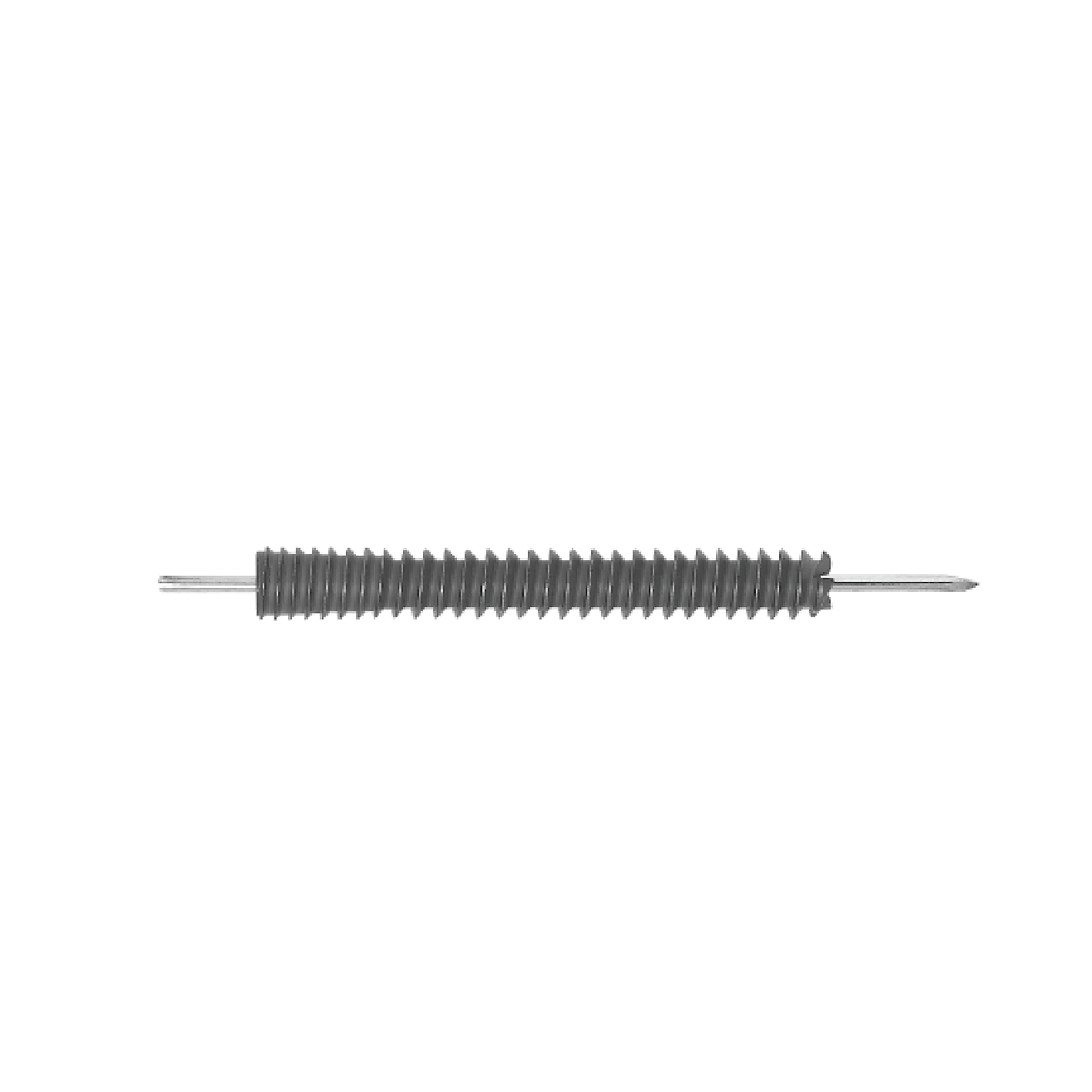

Headless Compression Hollow Screw
- Double-head hollow compression screw:With the design of hollow-headed compression, immerge, low notch and self-tapping.
- Hollow Design: Improving the accuracy of percutaneous implantation.
- Design of pitch changing screw thread and taper: Pitch is reducing from head to end therefore the bone entering speed of the head part is faster than the tail part which has the effect of compression on fracture part when screwed in.
- Full thread design: this design can better maintain the compression effect when encountering periodical load.
- Headless design: Applicable to joints part which helps to reduce collisions and irritation to the soft tissues.
More Information About Our Products
- Parameter List
| Product No. Range (Non-sterile / Sterile) | Specification (Diameter×Length) | Material |
|---|---|---|
| 110111025080 ~ 110111025200 / 110111025081 ~ 110111025201 | 2.5×8 ~ 20 | Titanium Alloy |
| 110211030160 ~ 110211030300 / 110211030161 ~ 110211030301 | 3.0×16 ~ 30 | Titanium Alloy |
| 110311035160 ~ 110311035300 / 110311035161 ~ 110311035301 | 3.5×16 ~ 30 | Titanium Alloy |
| 110411040160 ~ 110411040340 / 110411040161 ~ 110411040341 | 4.0×16 ~ 34 | Titanium Alloy |
| 110511050200 ~ 110511050400 / 110511050201 ~ 110511050401 | 5.0×20 ~ 40 | Titanium Alloy |
| 110511050400 ~ 110511050500 / 110511050401 ~ 110511050501 | 5.0×40 ~ 50 | Titanium Alloy |
| 110611065450 ~ 110611065750 / 110611065451 ~ 110611065751 | 6.5×45 ~ 75 | Titanium Alloy |
- The last digit of the product number “0” means non-sterile and “1” means sterile.
- Remark: Used for small bone fracture in condyle, 5.0&6.5: at intervals of 5mm, other sizes: at intervals of 2mm
