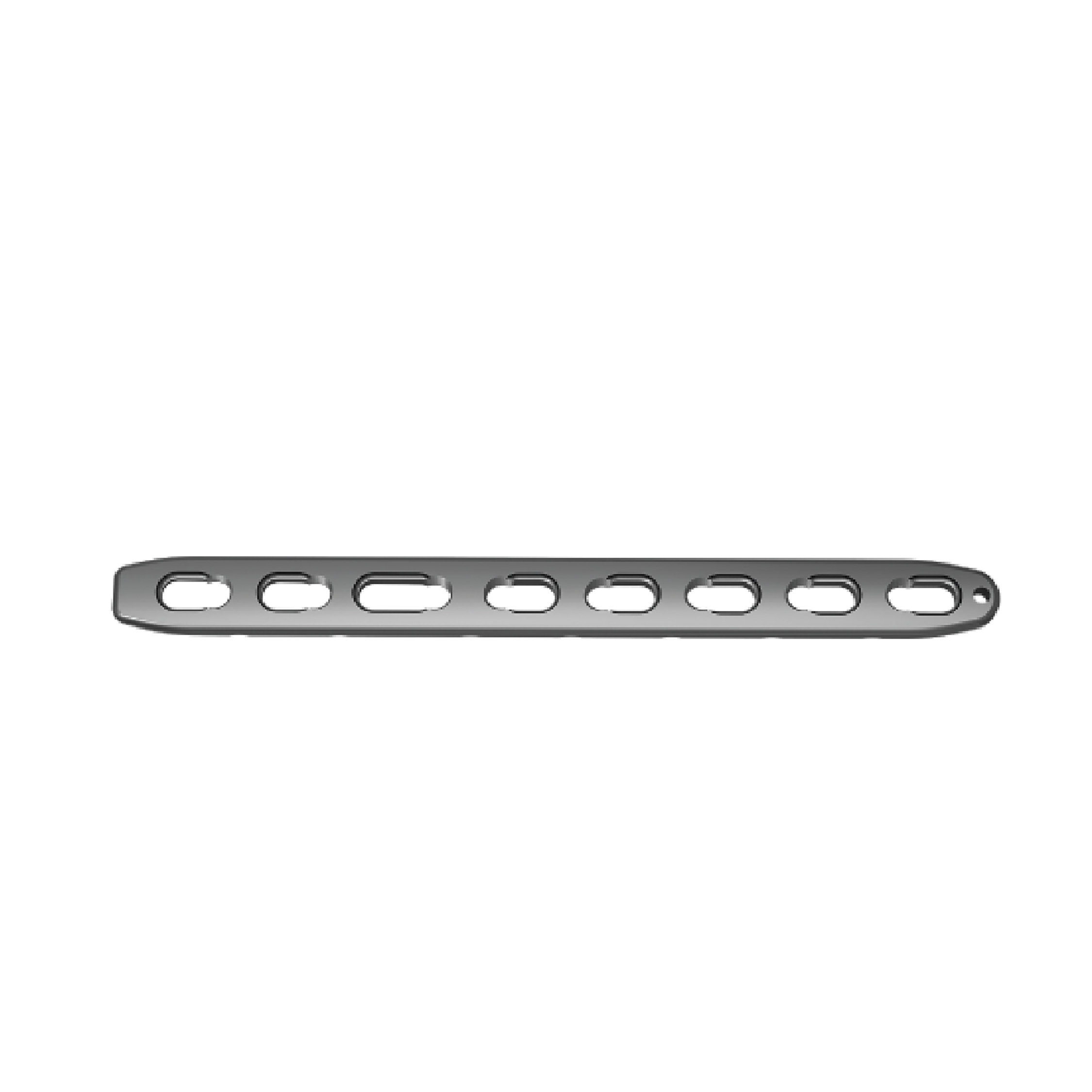

Humerus Locking Plates I
- Anatomical design: The plate shape accommodate humerus anatomy, fits close to minimize soft tissue irration;
- Limited-contact design: With advantages as preservation of blood supply to soft tissue and bone ,reunion of the bone fractures,etc;
- Articular multi-holes design: Convenient for fixing selection, with stable fixation;
- Combination locking and compression holes (Combi holes): Using angular stability or compression according to the requirements.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 124721000050 / 124721000051 | 5holes | 73×10.5×3 | Pure Titanium |
| 124721000060 / 124721000061 | 6holes | 86×10.5×3 | Pure Titanium |
| 124721000070 / 124721000071 | 7holes | 99×10.5×3 | Pure Titanium |
| 124721000080 / 124721000081 | 8holes | 112×10.5×3 | Pure Titanium |
| 124721000090 / 124721000091 | 9holes | 125×10.5×3 | Pure Titanium |
| 124721000100 / 124721000101 | 10holes | 138×10.5×3 | Pure Titanium |
| 124721000110 / 124721000111 | 11holes | 151×10.5×3 | Pure Titanium |
| 124721000120 / 124721000121 | 12holes | 164×10.5×3 | Pure Titanium |
The last digit of the product number “0” means non-sterile and “1” means sterile.
Remark: For Middle and Distal humerus fracture, select HC3.5、HA3.5 Screws.
Remark: For Middle and Distal humerus fracture, select HC3.5、HA3.5 Screws.
