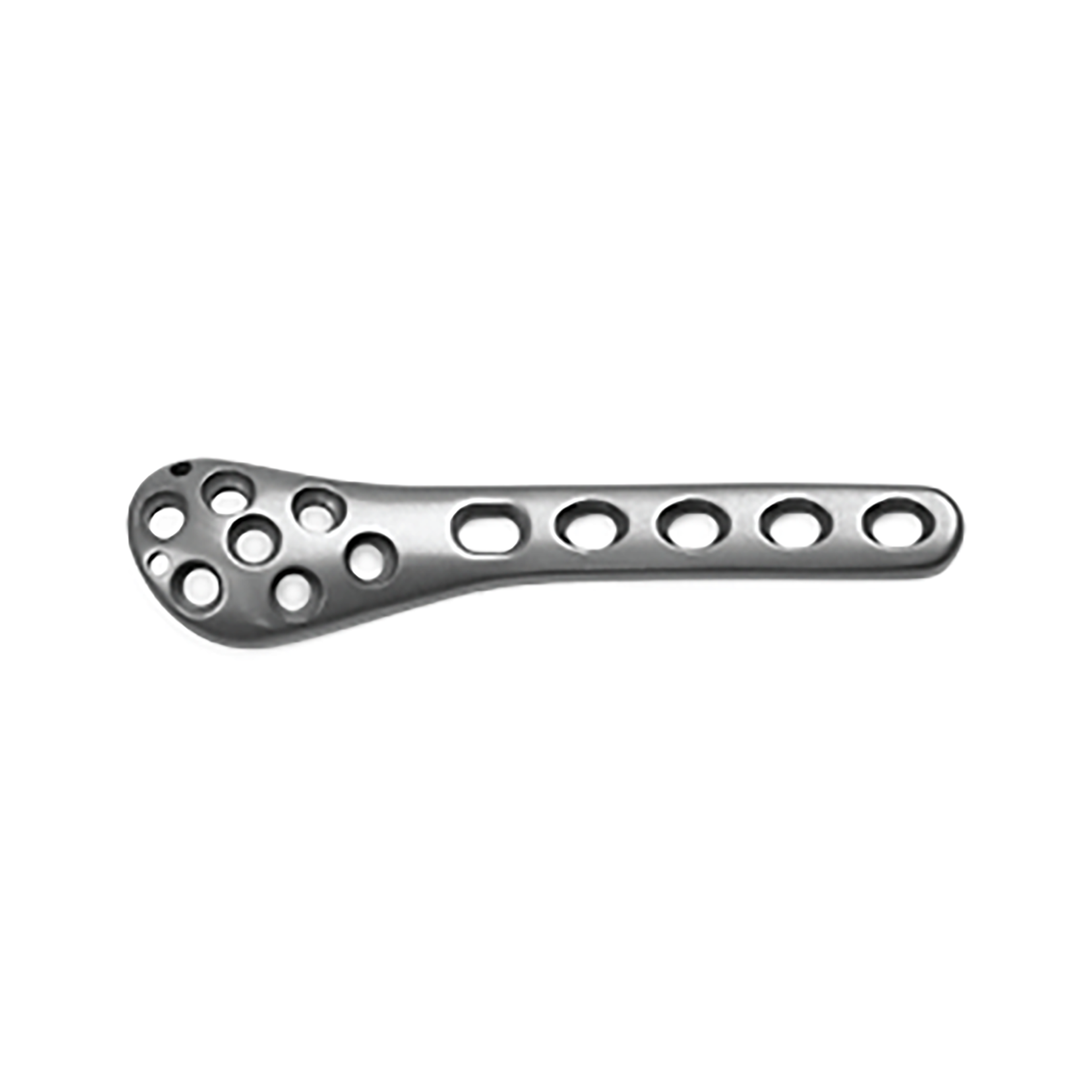

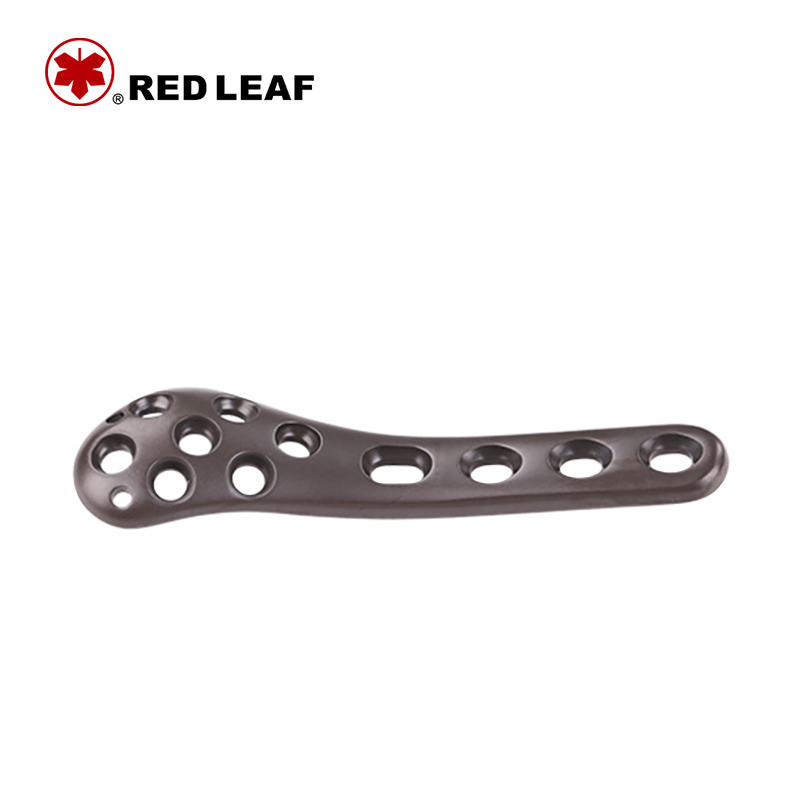

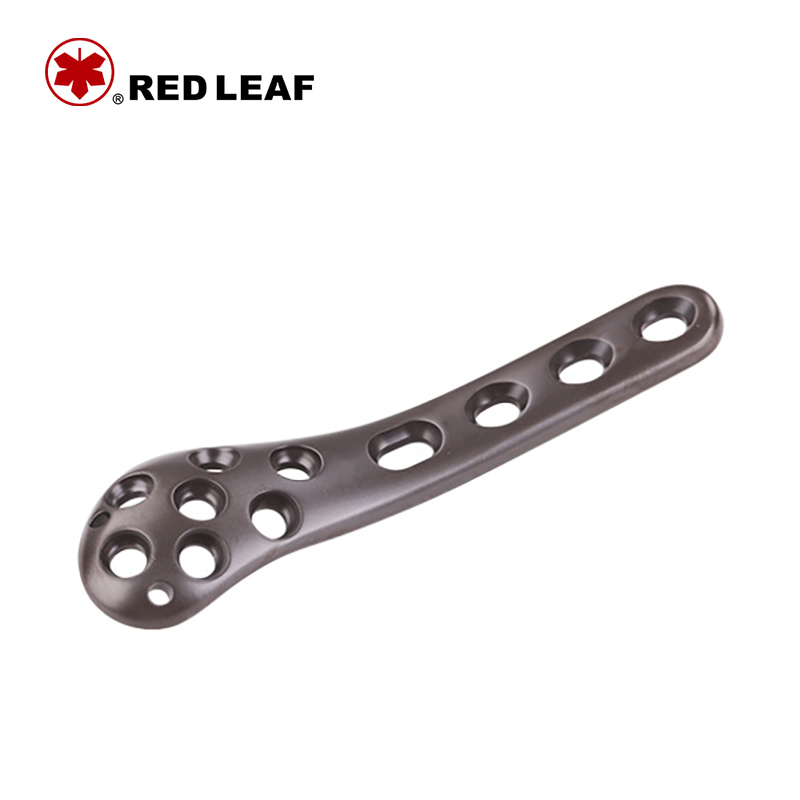

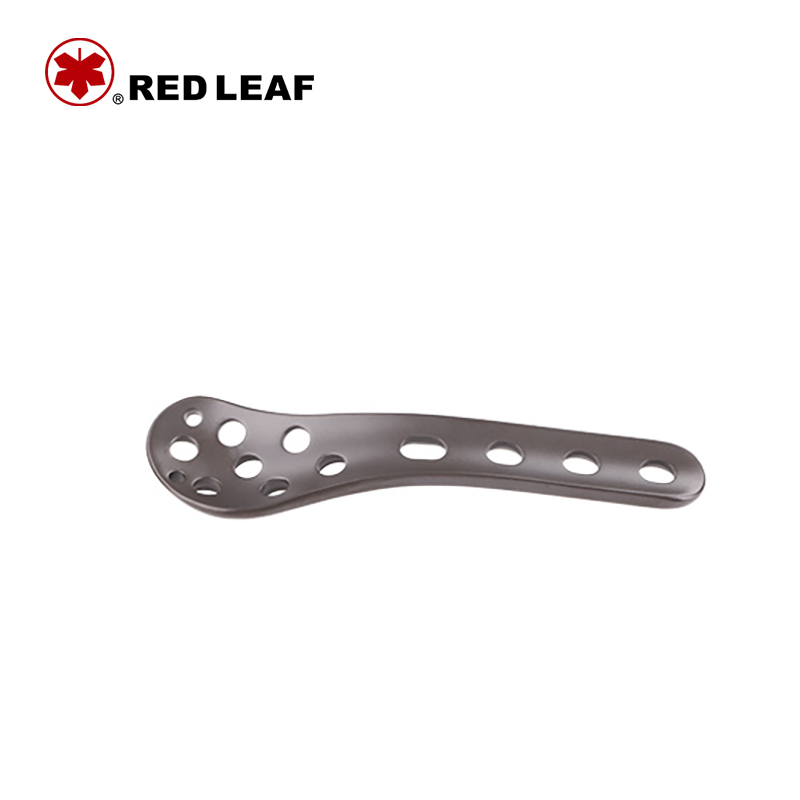

Humerus Neck Fracture Plates (Left and Right Types)
- Compression Fixation:Stability is achieved by pressing the plate tightly against the bone using standard cortical or cancellous screws.
- No Screw Locking Mechanism:Screws do not lock into the plate holes; fixation depends on friction between the plate and bone.
- Good Anatomical Adaptation:The plate can be shaped and contoured during surgery to match the natural anatomy of the bone.
- Flexible Intraoperative Adjustment:Surgeons can adjust plate position and screw placement during the procedure for better fracture reduction.
- Cost-Effective Solution:Compared with locking plates, non-locking plates are generally more economical and suitable for routine trauma cases.
- Suitable for Good Bone Quality:Best used in patients with normal bone density where strong screw purchase can be achieved.
- Wide Clinical Application:Commonly used for upper limb, lower limb, clavicle, fibula, radius, ulna, and other fracture fixation.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 162821100030 / 162821100031 | 3 holes L | 76×12.5×3.2 | Pure Titanium |
| 162821200030 / 162821200031 | 3 holes R | 76×12.5×3.2 | Pure Titanium |
| 162821100040 / 162821100041 | 4 holes L | 88×12.5×3.2 | Pure Titanium |
| 162821200040 / 162821200041 | 4 holes R | 88×12.5×3.2 | Pure Titanium |
| 162821100050 / 162821100051 | 5 holes L | 100×12.5×3.2 | Pure Titanium |
| 162821200050 / 162821200051 | 5 holes R | 100×12.5×3.2 | Pure Titanium |
| 162821100060 / 162821100061 | 6 holes L | 112×12.5×3.2 | Pure Titanium |
| 162821200060 / 162821200061 | 6 holes R | 112×12.5×3.2 | Pure Titanium |
| 162821100070 / 162821100071 | 7 holes L | 124×12.5×3.2 | Pure Titanium |
| 162821200070 / 162821200071 | 7 holes R | 124×12.5×3.2 | Pure Titanium |
| 162821100080 / 162821100081 | 8 holes L | 136×12.5×3.2 | Pure Titanium |
| 162821200080 / 162821200081 | 8 holes R | 136×12.5×3.2 | Pure Titanium |
Notes:
- The last digit of the product number “0” means non-sterile and “1” means sterile.
- Remark: For proximal humerus fracture, select HA3.5 and HB4.0 screw
