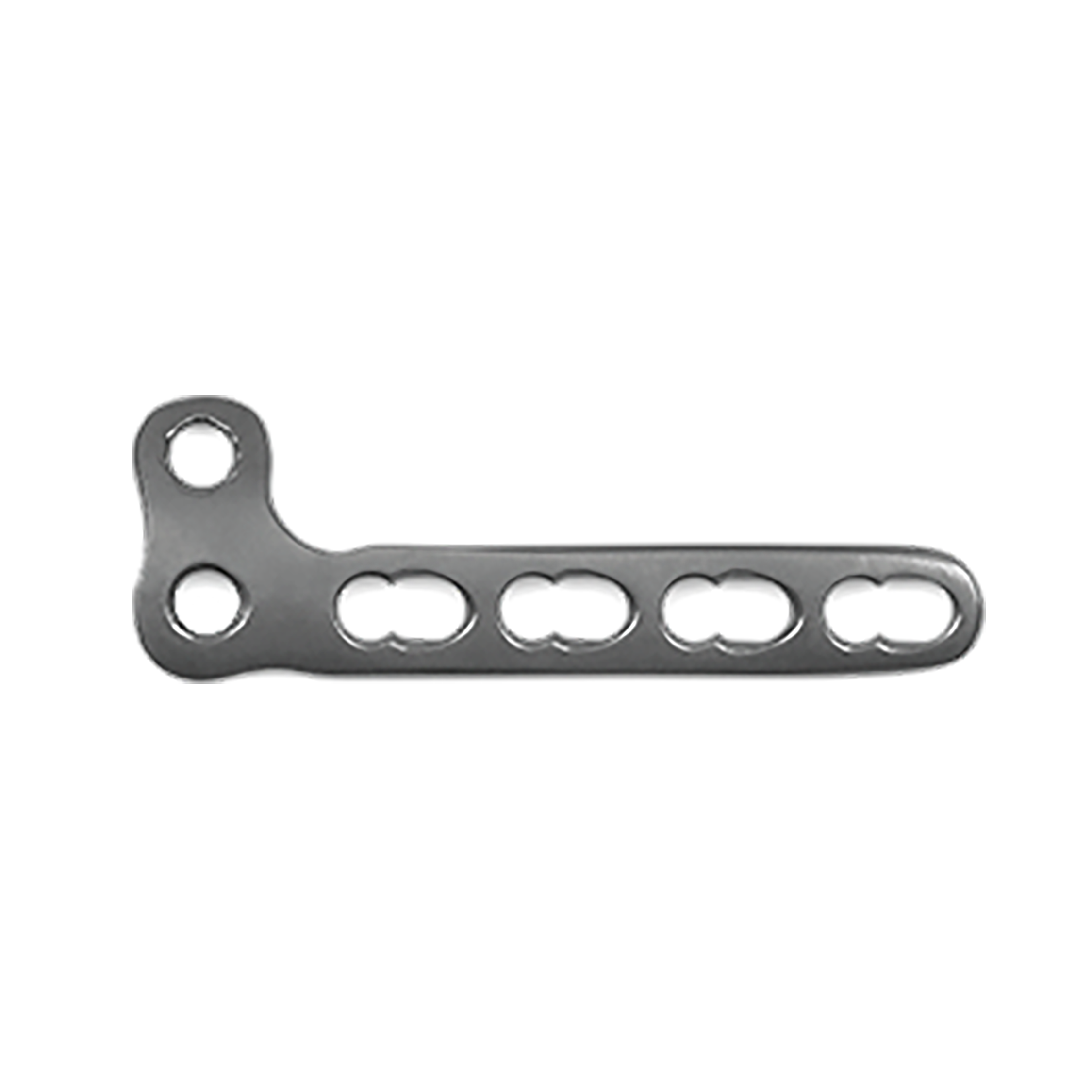

L-shaped Metacarpal Locking Plates Type I (Left and Right Types)
- Low incisure design: reduce the irritability for cartilage tissue;
- Anatomical design: reduce intraoperative shaping;
- Locking design: with the Angle stability;
- Easy shear design: reduce inventory pressure.
- Tapping design: easy for screw tapping in;
- Plum hexagonal design: reduce the risk of sliding tooth;
- Different specifications design: easy to various parts of fracture treatment.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 121321100030 / 121321100031 | 3 holes L | 32×6.5×1.2 | Pure Titanium |
| 121321200030 / 121321200031 | 3 holes R | 32×6.5×1.2 | Pure Titanium |
| 121321100040 / 121321100041 | 4 holes L | 40×6.5×1.2 | Pure Titanium |
| 121321200040 / 121321200041 | 4 holes R | 40×6.5×1.2 | Pure Titanium |
| 121321100050 / 121321100051 | 5 holes L | 48×6.5×1.2 | Pure Titanium |
| 121321200050 / 121321200051 | 5 holes R | 48×6.5×1.2 | Pure Titanium |
| 121321100060 / 121321100061 | 6 holes L | 56×6.5×1.2 | Pure Titanium |
| 121321200060 / 121321200061 | 6 holes R | 56×6.5×1.2 | Pure Titanium |
Notes:
- The last digit of the product number “0” means non-sterile and “1” means sterile.
- Remark: Select HC2.7、HA2.7 screws (small cap)
