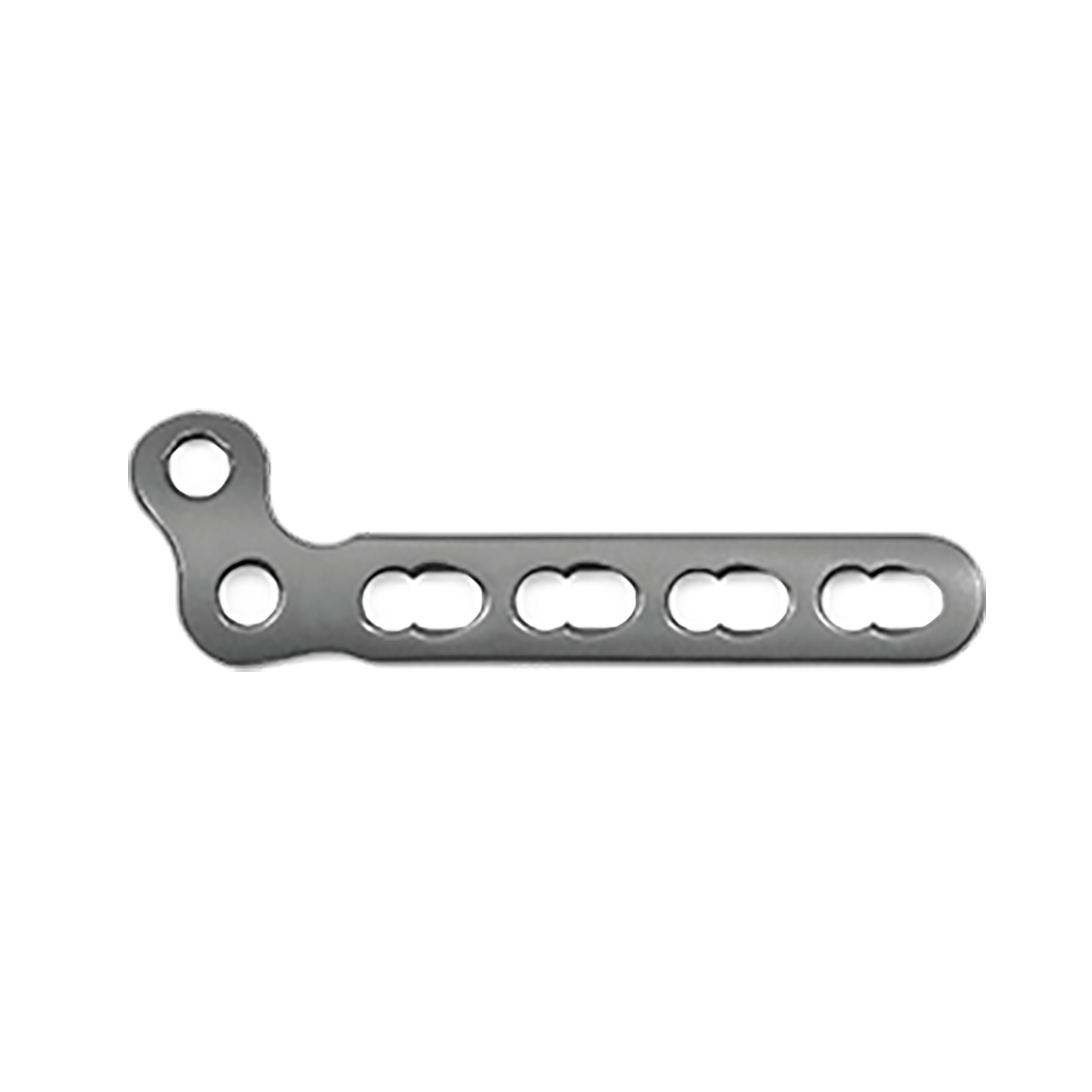

L-shaped Metacarpal Locking Plates Type II (Left and Right Types)
- Low incisure design: reduce the irritability for cartilage tissue;
- Anatomical design: reduce intraoperative shaping;
- Locking design: with the Angle stability;
- Easy shear design: reduce inventory pressure.
- Tapping design: easy for screw tapping in;
- Plum hexagonal design: reduce the risk of sliding tooth;
- Different specifications design: easy to various parts of fracture treatment.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 121421100030 / 121421100031 | 3 holes L | 35×6.5×1.2 | Pure Titanium |
| 121421200030 / 121421200031 | 3 holes R | 35×6.5×1.2 | Pure Titanium |
| 121421100040 / 121421100041 | 4 holes L | 43×6.5×1.2 | Pure Titanium |
| 121421200040 / 121421200041 | 4 holes R | 43×6.5×1.2 | Pure Titanium |
| 121421100050 / 121421100051 | 5 holes L | 51×6.5×1.2 | Pure Titanium |
| 121421200050 / 121421200051 | 5 holes R | 51×6.5×1.2 | Pure Titanium |
| 121421100060 / 121421100061 | 6 holes L | 59×6.5×1.2 | Pure Titanium |
| 121421200060 / 121421200061 | 6 holes R | 59×6.5×1.2 | Pure Titanium |
Notes:
- The last digit of the product number “0” means non-sterile and “1” means sterile.
- Remark: Select HC2.7、HA2.7 screws (small cap)
