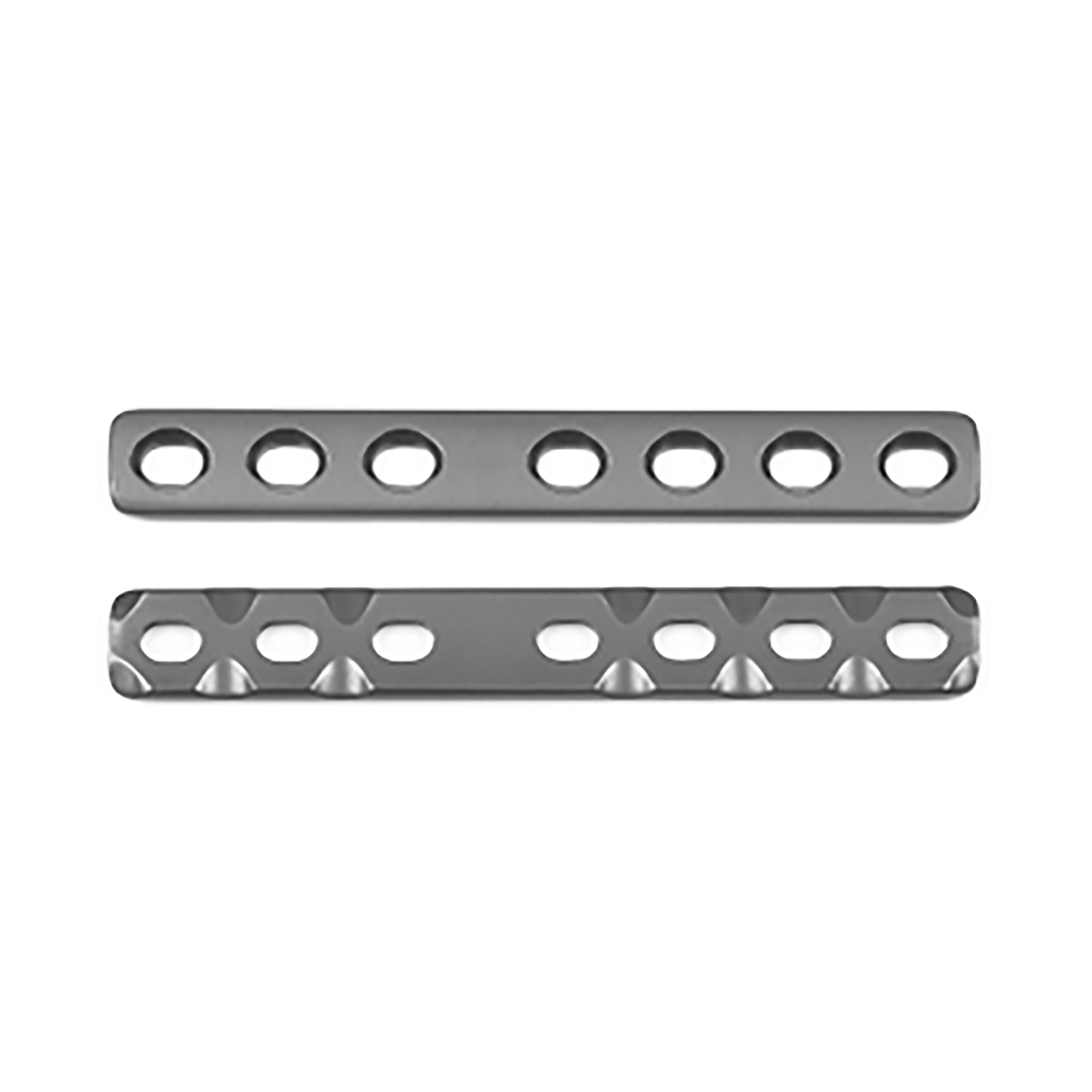

Limited-contact Dynamic Compression Plates
- Compression Fixation:Stability is achieved by pressing the plate tightly against the bone using standard cortical or cancellous screws.
- No Screw Locking Mechanism:Screws do not lock into the plate holes; fixation depends on friction between the plate and bone.
- Good Anatomical Adaptation:The plate can be shaped and contoured during surgery to match the natural anatomy of the bone.
- Flexible Intraoperative Adjustment:Surgeons can adjust plate position and screw placement during the procedure for better fracture reduction.
- Cost-Effective Solution:Compared with locking plates, non-locking plates are generally more economical and suitable for routine trauma cases.
- Suitable for Good Bone Quality:Best used in patients with normal bone density where strong screw purchase can be achieved.
- Wide Clinical Application:Commonly used for upper limb, lower limb, clavicle, fibula, radius, ulna, and other fracture fixation.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 160921000050 / 160921000051 | 5 holes | 66×12×3.6 | Pure Titanium |
| 160921000060 / 160921000061 | 6 holes | 78×12×3.6 | Pure Titanium |
| 160921000070 / 160921000071 | 7 holes | 90×12×3.6 | Pure Titanium |
| 160921000080 / 160921000081 | 8 holes | 102×12×3.6 | Pure Titanium |
| 160921000090 / 160921000091 | 9 holes | 114×12×3.6 | Pure Titanium |
| 160921000100 / 160921000101 | 10 holes | 126×12×3.6 | Pure Titanium |
| 160921000120 / 160921000121 | 12 holes | 150×12×3.6 | Pure Titanium |
Notes:
- The last digit of the product number “0” means non-sterile and “1” means sterile.
- Remark: For humerus fracture, select HA3.5 cortical screws
