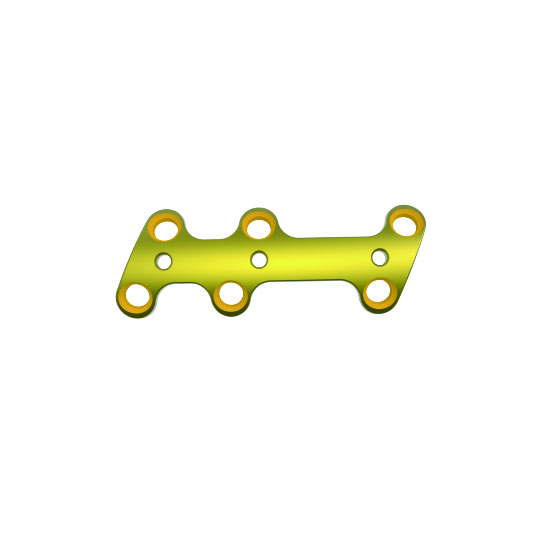

Medial and Lateral Column Reconstruction Locking Plate
- Used to meet the complex needs of surgeries such as calcaneal fractures and orthotics.
- Suitable for open calcaneal fractures, minimally invasive approaches to calcaneal fractures, type I Ⅱ Ⅲ fractures, calcaneal osteotomy, internal and external column reconstruction, etc.
- The posterior foot series bone plates are all made of pure titanium, which facilitates shaping during surgery and provides patients with better anatomical shapes.
- The calcaneal plate is used in conjunction with low cut locking screws to provide angle locking while reducing stimulation to soft tissues.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 6941883924264 | 6-37 | 46.3×16.5×1.5 | TA3G |
| 6941883924271 | 8-50 | 60.3×16.5×1.5 | TA3G |
| 6941883924288 | 10-55 | 74.3×16.5×1.5 | TA3G |
| 6941883924295 | 12-60 | 88.3×16.5×1.5 | TA3G |
| 6941883924301 | 14-66 | 102.3×16.5×1.5 | TA3G |
Indication: Fusion of medial and lateral columns of the hind and posterior foot
Adaptation Screw: 3.5 Low cut locking screw
Adaptation Screw: 3.5 Low cut locking screw
