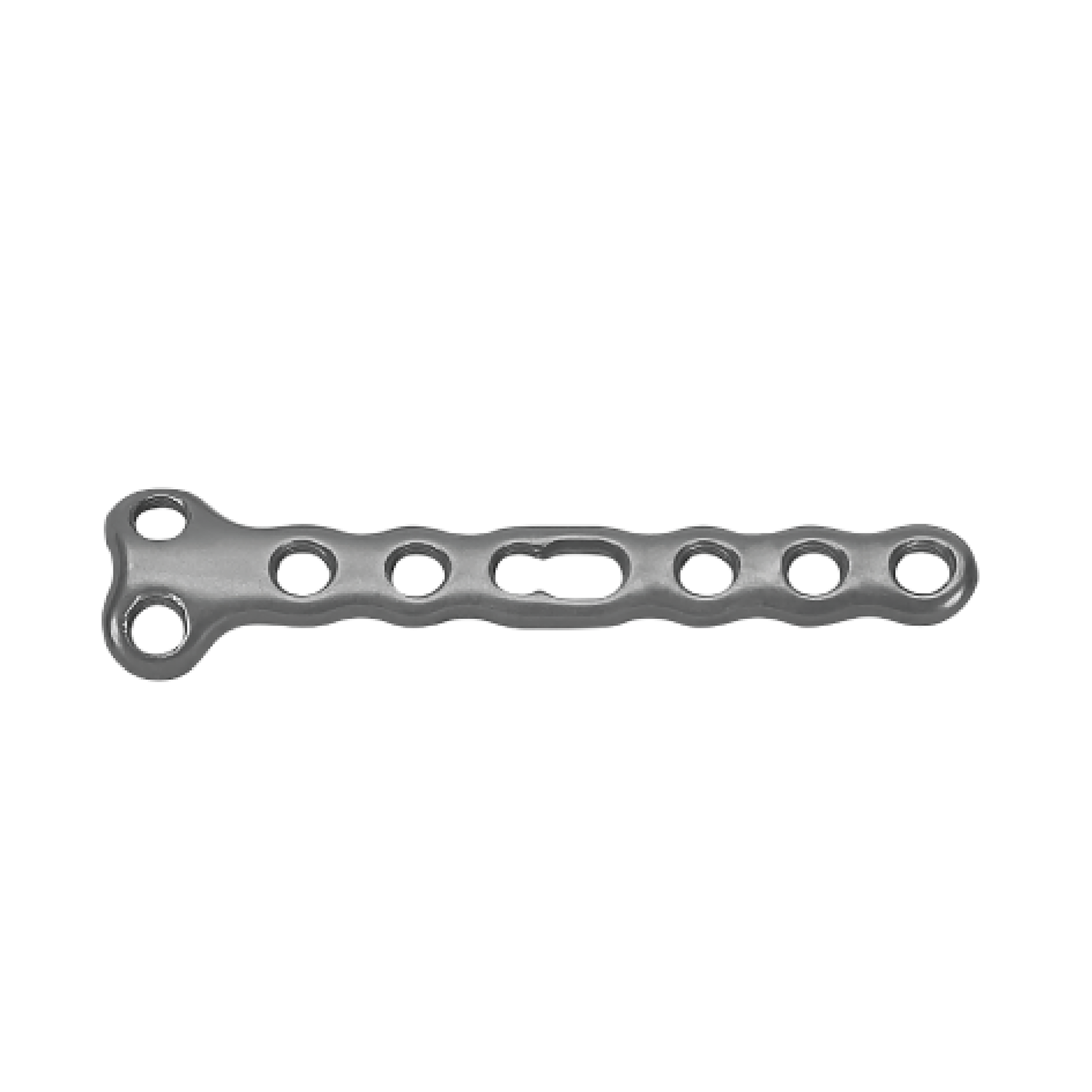

Metatarsal bone T Type Locking Plates
- According to the anatomical design of the ankle skeleton model, it conforms to the bone shape and reduces soft tissue stimulation.
- Locking pressure hole design allows ordinary screws to achieve compression fixation, or locking screws can be used to achieve angle stability fixation.
- K-wire holes can serve as temporary fixation during surgery, facilitating physicians to maintain the reset position before final screw fixation and simplifying surgical procedures.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 180921000020 / 180921000021 | 2Holes | 27.4×7.1×1.5 | Pure Titanium |
| 180921000030 / 180921000031 | 3Holes | 33.9×7.1×1.5 | Pure Titanium |
| 180921000040 / 180921000041 | 4Holes | 40.4×7.1×1.5 | Pure Titanium |
| 180921000050 / 180921000051 | 5Holes | 47×7.1×1.5 | Pure Titanium |
| 180921000060 / 180921000061 | 6Holes | 53.7×7.1×1.5 | Pure Titanium |
The last digit of the product number “0” means non-sterile and “1” means sterile.
Remark: For metatarsal bone fracture, select HC2.9、HA2.7 (small nut) screws.
Remark: For metatarsal bone fracture, select HC2.9、HA2.7 (small nut) screws.
