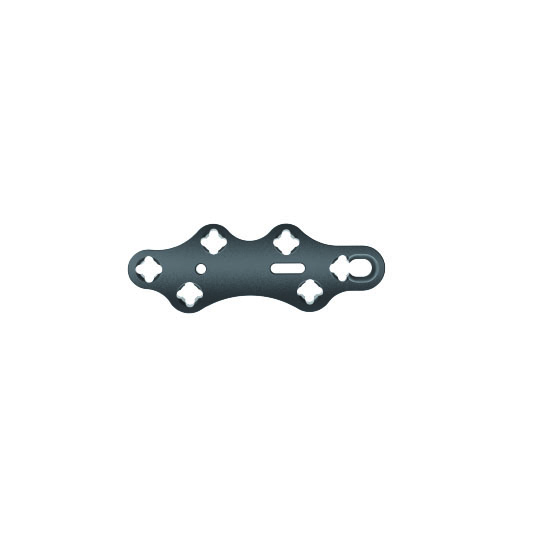

Metatarsophalangeal Fusion Compression Universal Locking Plate
- To solve the symptoms of arthritis pain and severe trauma requiring joint fusion in patients
- Suitable for ankle fusion internal fixation, including ankle joint, tarsal joint, metatarsocuneiform joint, metatarsophalangeal joint, etc
- To improve the success rate of fusion, the bone plate adopts a universal locking hole design, which can perform multi axis three-dimensional locking
- The design of dynamic pressure holes can promote close contact between the bone ends
- The surface of the product is treated with Type II anodizing, which increases the corrosion resistance and wear resistance of the product
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 6941883901463 | L6-0°(Length 42) | 42×7.5×2 | TA3G |
| 6941883901470 | R6-0°(Length 42) | 42×7.5×2 | TA3G |
| 6941883901487 | L6-5°(Length 42) | 42×7.5×2 | TA3G |
| 6941883901494 | R6-5°(Length 42) | 42×7.5×2 | TA3G |
| 6941883901500 | L6-10°(Length 42) | 42×7.5×2 | TA3G |
| 6941883901517 | R6-10°(Length 42) | 42×7.5×2 | TA3G |
| 6941883925988 | L6-0°(Length 52) | 52×7.5×2 | TA3G |
| 6941883925998 | R6-0°(Length 52) | 52×7.5×2 | TA3G |
| 6941883926008 | L6-5°(Length 52) | 52×7.5×2 | TA3G |
| 6941883926015 | R6-5°(Length 52) | 52×7.5×2 | TA3G |
| 6941883926022 | L6-10°(Length 52) | 52×7.5×2 | TA3G |
| 6941883926039 | R6-10°(Length 52) | 52×7.5×2 | TA3G |
| 6941883901524 | L7-5° | 57×7.5×2 | TA3G |
| 6941883901531 | R7-5° | 57×7.5×2 | TA3G |
Indication: Internal fixation of metatarsophalangeal joint fusion
Adaptation Screw: 2.4/2.7 self tapping locking screw, 2.4/2.7 self tapping compression locking screw
Adaptation Screw: 2.4/2.7 self tapping locking screw, 2.4/2.7 self tapping compression locking screw
