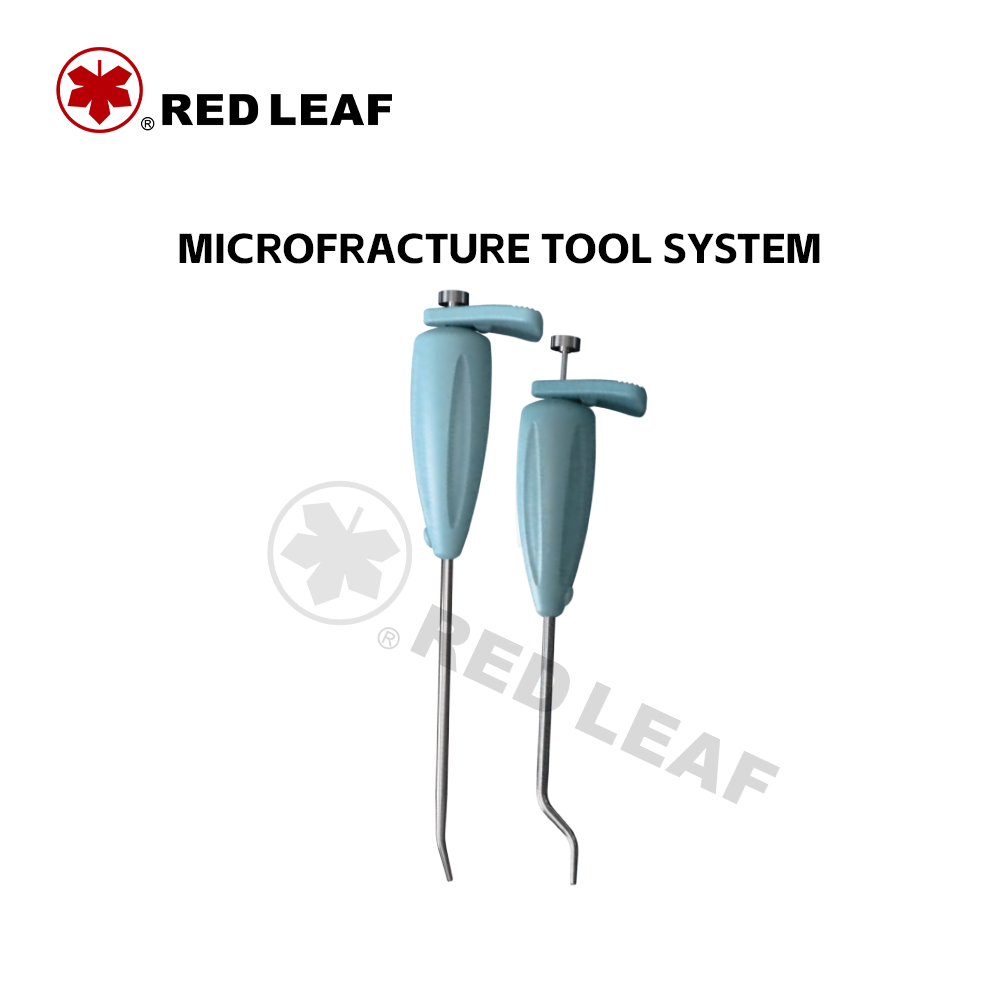

Microfracture Tool Set
The treatment using microfracture tools is usually completed as part of arthroscopy or minimally invasive surgery, without the need for special or unique surgical incisions.

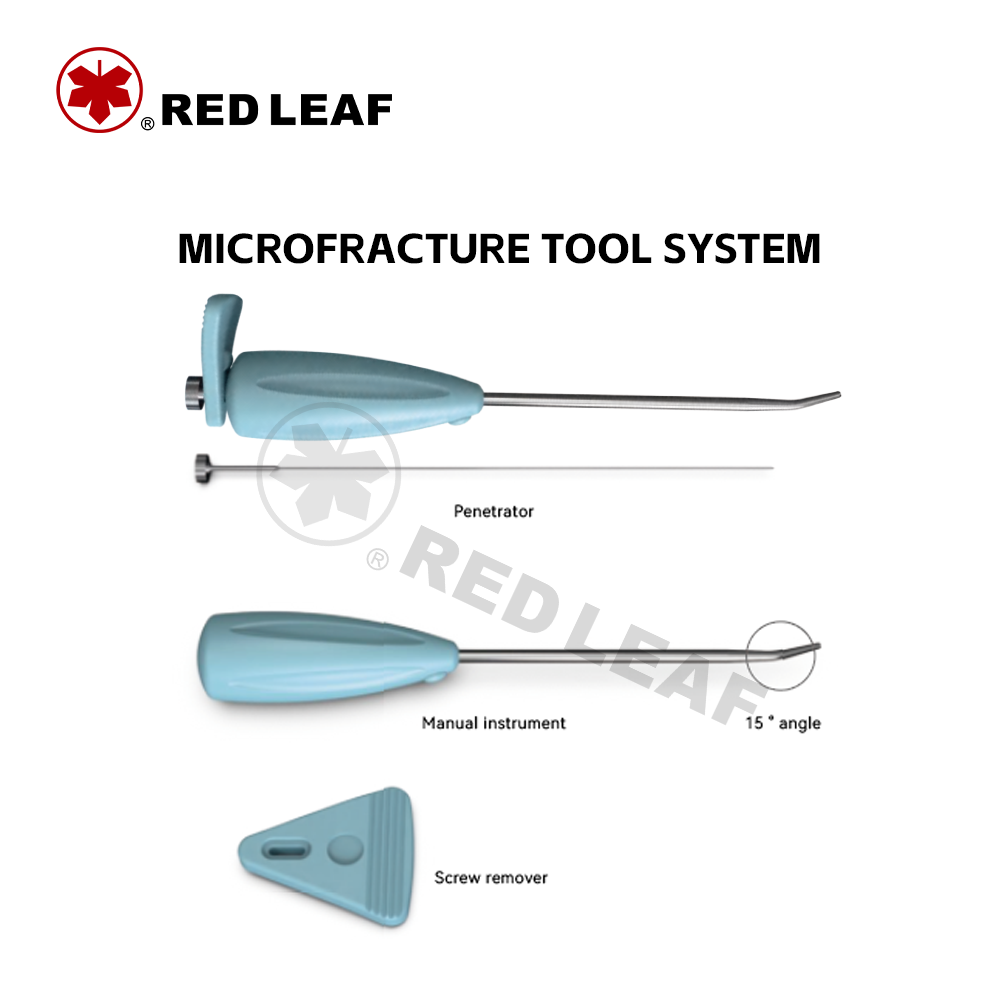

- Place the tip of the penetrator with a nail puller into the proximal cavity of the manual instrument.
- Position the distal end of the assembled microfracture tool at a target point approximately 2 mm away from the cartilage wall.
- Use a light hammer to strike the near‑end handle of the penetrator to a depth of 9 mm. Remove the penetrator after reaching the target depth.
- Reposition the penetrator to create additional holes at approximately 2 mm intervals. Use a spiral pattern to evenly perforate the subchondral bone plate until sufficient microfractures are formed.
More Information About Our Products
- Parameter List
| Model | Components | Key Feature |
|---|---|---|

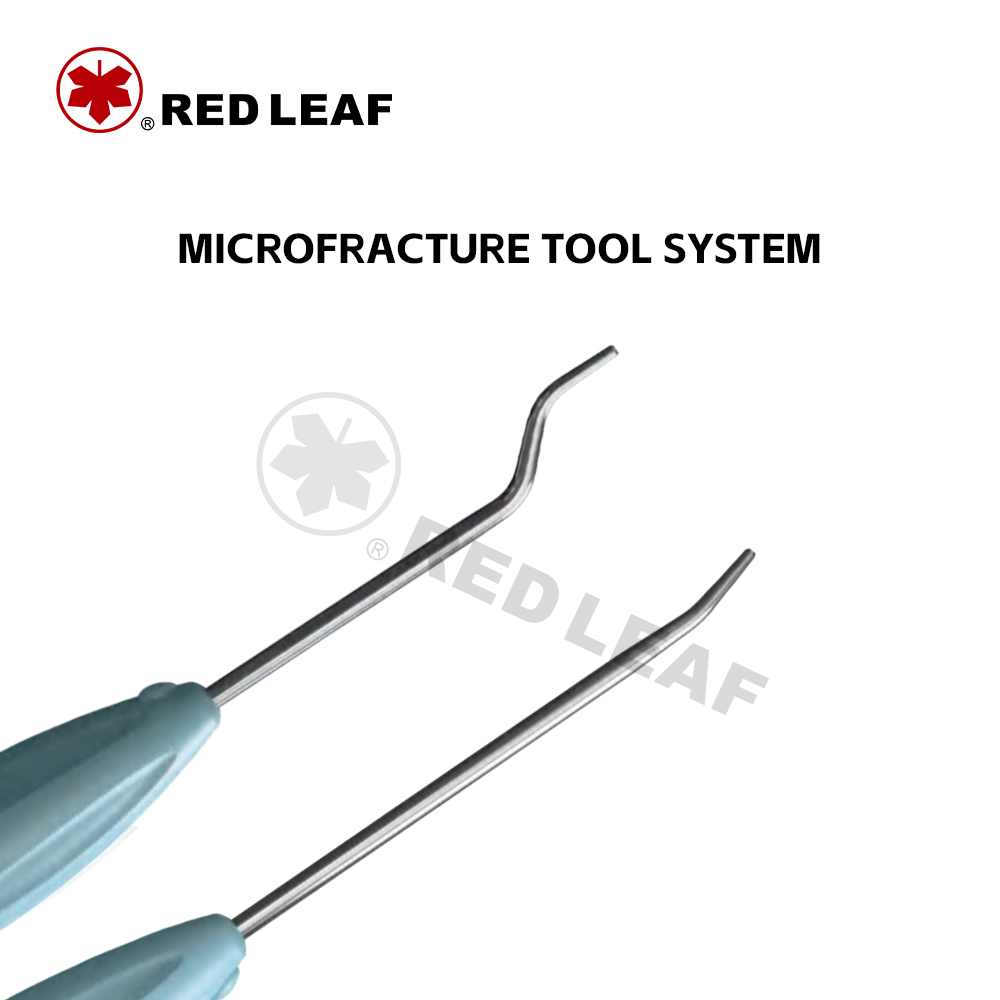

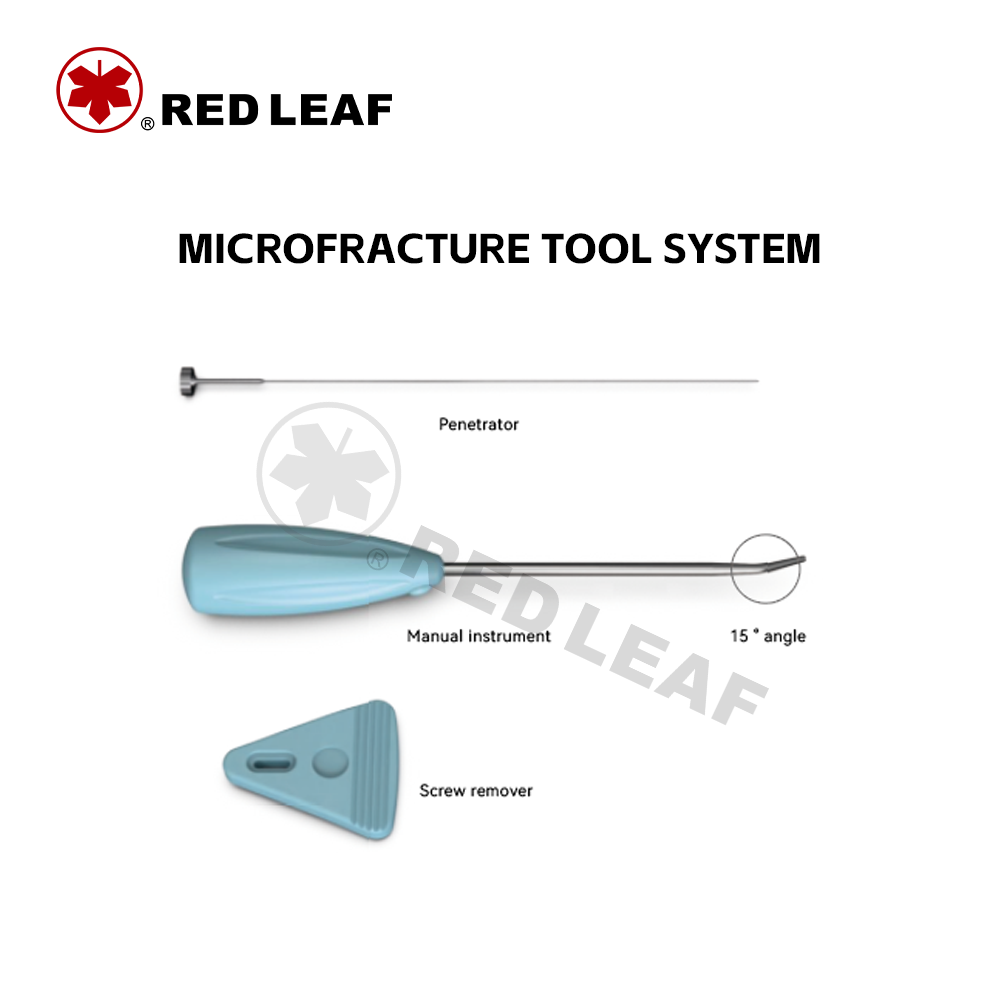

| Microfracture tool – 15° | Manual instrument (15° angle), Penetrator, Screw remover | Shaft with a 15° angled tip |

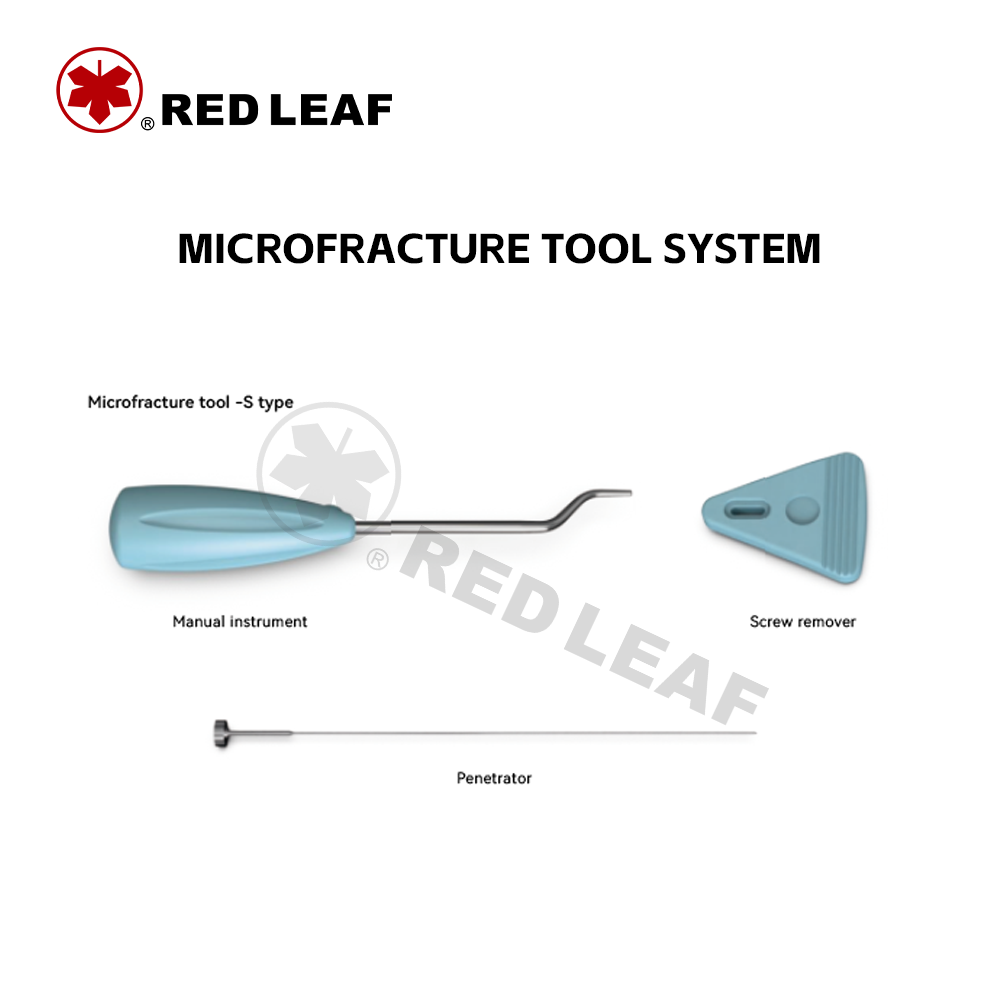

| Microfracture tool – S type | Manual instrument (S‑shaped), Penetrator, Screw remover | Curved, S‑shaped shaft design |
