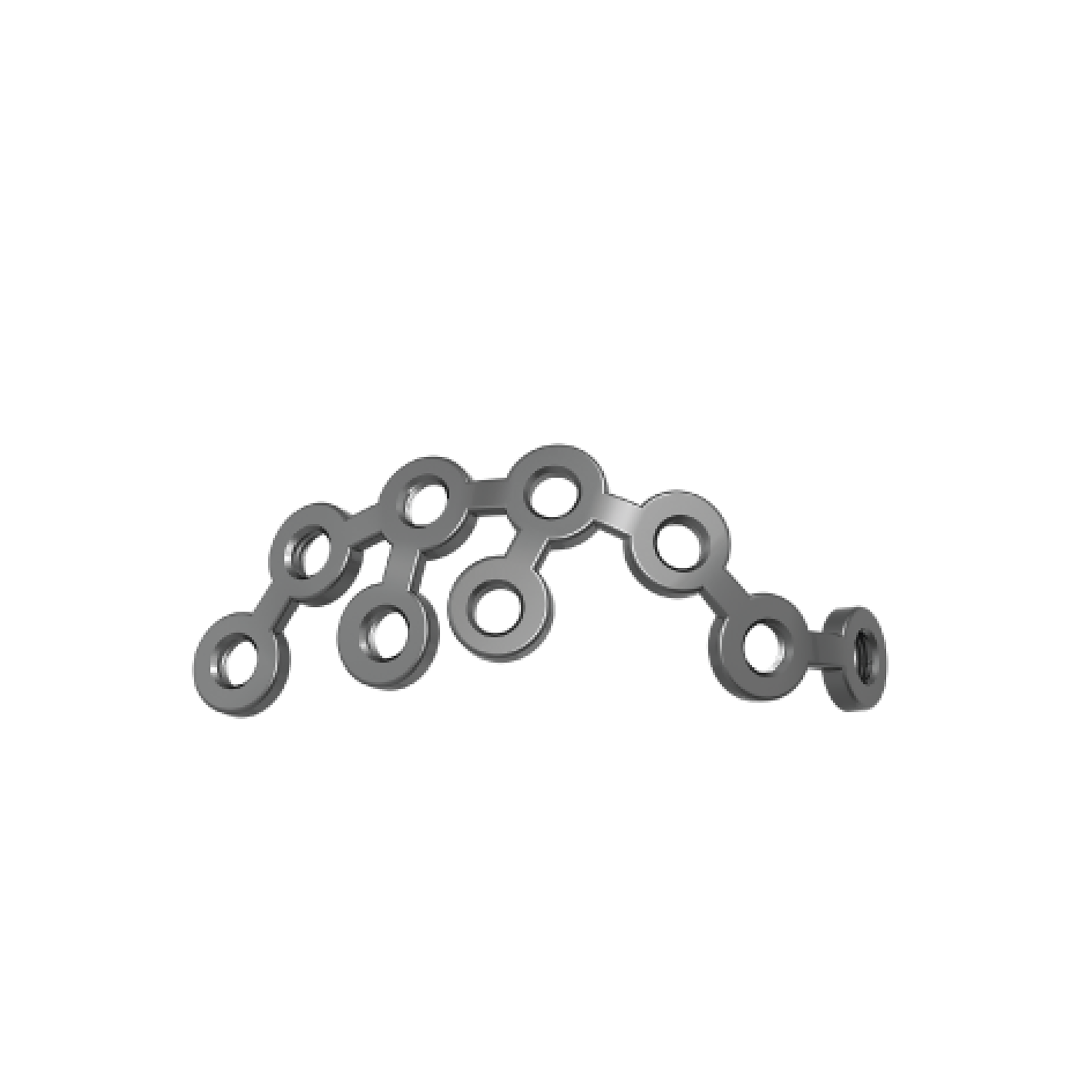

Navicular Bone Locking Plates(Left and Right Types)
- According to the anatomical design of the ankle skeleton model, it conforms to the bone shape and reduces soft tissue stimulation.
- Locking pressure hole design allows ordinary screws to achieve compression fixation, or locking screws can be used to achieve angle stability fixation.
- K-wire holes can serve as temporary fixation during surgery, facilitating physicians to maintain the reset position before final screw fixation and simplifying surgical procedures.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 180721100090 / 180721100091 | 9holes L | 50×6.3×1.5 | Pure Titanium |
| 180721200090 / 180721200091 | 9holes R | 50×6.3×1.5 | Pure Titanium |
The last digit of the product number “0” means non-sterile and “1” means sterile.
Remark: For navicular bone fracture, select HC2.9 screws.
