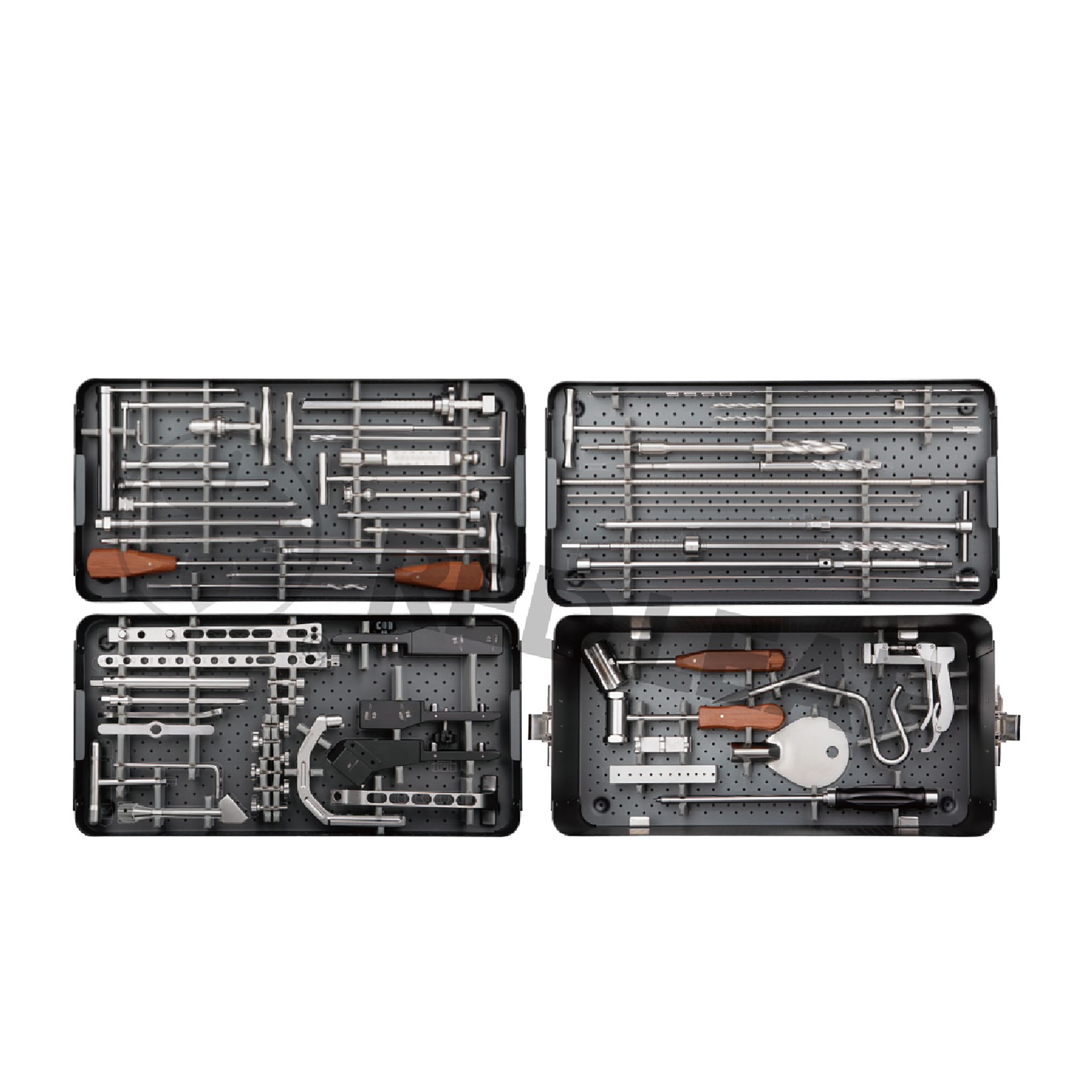

PFNA Gamma Interlocking Nail Instrument Set

Intramedullary Nail
The primary implant inserted along the bone’s medullary canal through a small incision to stabilize the fracture.
Reamers
Used to prepare the medullary canal by gradually enlarging the bone channel to fit the nail.
Locking Bolts / Screws
Inserted through the cortical bone into the nail to prevent rotation and shortening.
Guides
Ensure accurate alignment and screw placement during nail insertion.
Bone Awls
Create pilot holes in the cortical bone for locking screw insertion.
Extractors
Used to remove the intramedullary nail once the fracture has healed.
Wrenches
Tighten or loosen locking screws and other components.
Surgical Drills
Create pilot holes for screw insertion during surgery.

More Information About Our Products

Parameter List

No.	Device No.	Device Name
1	QI001-01	Developing template
2	QI001-02	Drill bit+Stop
3	QI001-03	Drill bit Φ4
4	QI001-04	Reset rod (guide pin introducer)
5	QI001-05	Proximal hollow drill
6	QI001-06	Proximal cortical hollow drill
7	QI001-07	Soft reamer rod
8	QI001-08	Threaded guide pin Φ3.2×400
9	QI001-09	Cleaning guide pin
10	QI001-10	Proximal cortical hollow drill
11	QI001-11	Protection sleeve
12	QI001-12	Guide pin with hook
13	QI001-13	Reaction wrench (blade nail)
14	QI001-14	Screwdriver (blade nail)
15	QI001-15	Sleeve (blade nail)
16	QI001-16	Extractor connecting rod (blade nail)
17	QI001-17	Reamer head Φ8.5 ~ Φ13
18	QI001-18	Guide pin holder
19	QI001-19	Depth gauge for guide pin
20	QI001-20	Locating rod
21	QI001-21	Flat drill for locating rod
22	QI001-22	Locating rod sleeve
23	QI001-23	Locating rod drill sleeve
24	QI001-24	Locating rod drill
25	QI001-25	Locating frame locking wheel
26	QI001-26	Locating rock
27	QI001-27	Hammer
28	QI001-28	Slide hammer
29	QI001-29	Distal guide rod for lengthened nail
30	QI001-30	Distal locating frame for lengthened nail
31	QI001-31	Distal connecting rod for lengthened nail
32	QI001-32	Proximal guide rod
33	QI001-33	Hollow awl
34	QI001-34	Open wrench
35	QI001-35	T-handle for quick installation
36	QI001-36	Connecting guide rod locking wheel
37	QI001-37	Connecting bolt
38	QI001-38	Connecting bolt universal wrench
39	QI001-39	Universal ballhead screwdriver
40	QI001-40	Ballhead guide pin (optional)
41	QI001-41	Soft tissue separator
42	QI001-42	Soft tissue protection plate
43	QI001-43	Handle
44	QI001-44	Locking wheel wrench
45	QI001-45	End cap hollow screwdriver
46	QI001-46	Stop wrench
47	QI001-47	Distal guide rod 180
48	QI001-48	Distal guide rod 240
49	QI001-49	Distal guide rod locking wheel
50	QI001-50	Distal locking screw wrench SW4
51	QI001-51	Depth gauge for distal locking screw hole
52	QI001-52	Sleeve for distal locking screw
53	QI001-53	Main nail inserter
54	QI001-54	Main nail extraction rod
55	QI001-55	Main nail connecting bolt tightened wrench
56	QI001-56	Blade nail extractor
