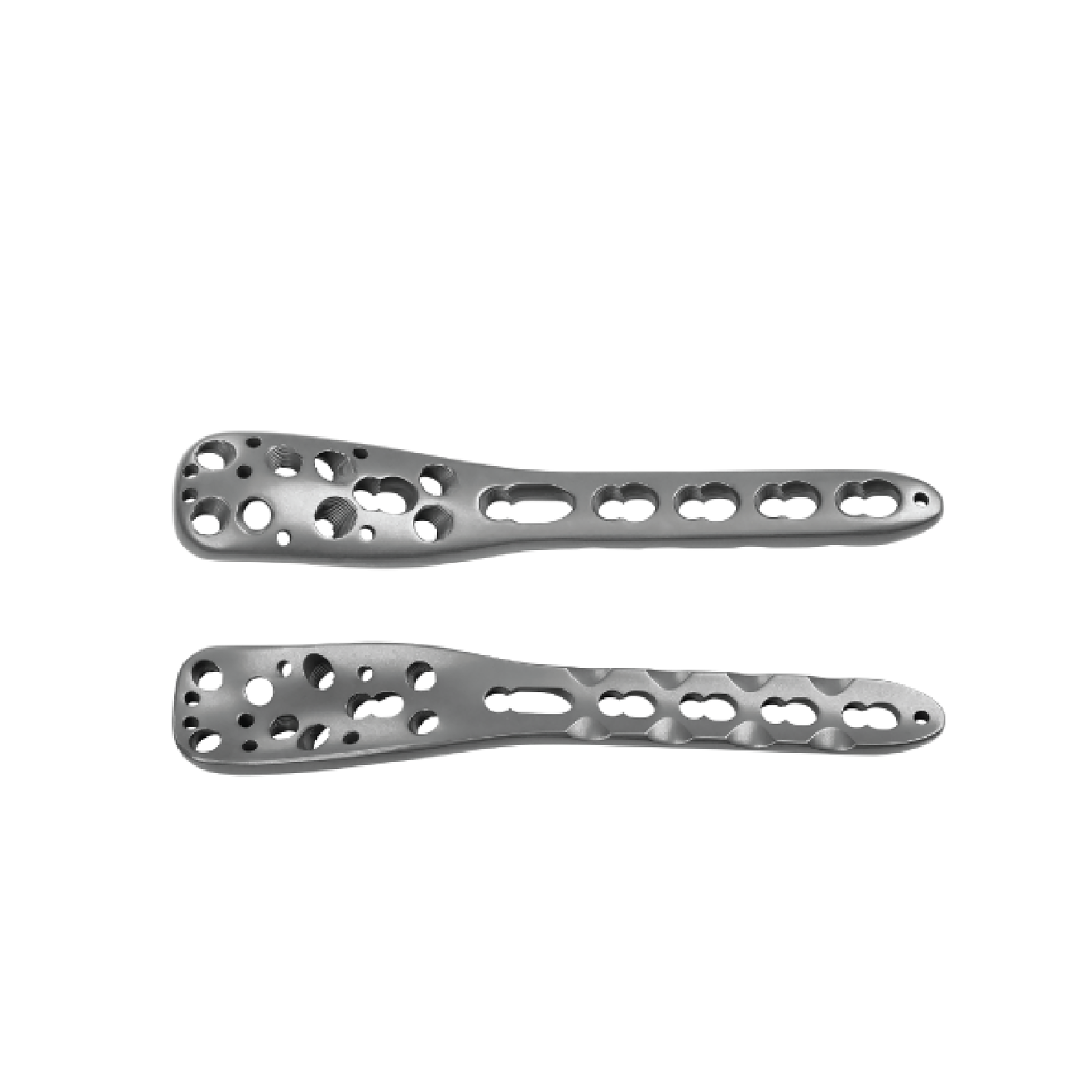

Proximal Humerus Condylus Locking Plates ( Type IIl )

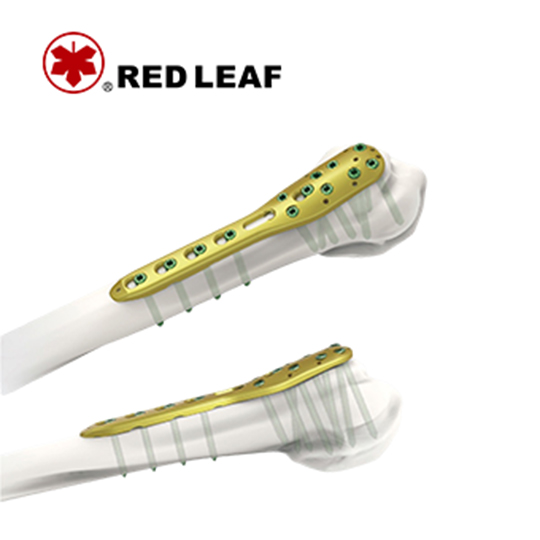

- Anatomical design: The plate shape accommodate humerus anatomy, fits close to minimize soft tissue irration;
- Limited-contact design: With advantages as preservation of blood supply to soft tissue and bone ,reunion of the bone fractures,etc;
- Articular multi-holes design: Convenient for fixing selection, with stable fixation;
- Combination locking and compression holes (Combi holes): Using angular stability or compression according to the requirements.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 124921000030 / 124921000031 | 3holes | 103×12.5×4 | Pure Titanium |
| 124921000040 / 124921000041 | 4holes | 115×12.5×4 | Pure Titanium |
| 124921000050 / 124921000051 | 5holes | 127×12.5×4 | Pure Titanium |
| 124921000060 / 124921000061 | 6holes | 139×12.5×4 | Pure Titanium |
| 124921000070 / 124921000071 | 7holes | 151×12.5×4 | Pure Titanium |
| 124921000080 / 124921000081 | 8holes | 163×12.5×4 | Pure Titanium |
| 124921000090 / 124921000091 | 9holes | 175×12.5×4 | Pure Titanium |
| 124921000100 / 124921000101 | 10holes | 187×12.5×4 | Pure Titanium |
| 124921000110 / 124921000111 | 11holes | 199×12.5×4 | Pure Titanium |
| 124921000120 / 124921000121 | 12holes | 211×12.5×4 | Pure Titanium |
The last digit of the product number “0” means non-sterile and “1” means sterile.
Remark: For proximal humerus fracture, select HC3.5 and HA3.5 screws.
