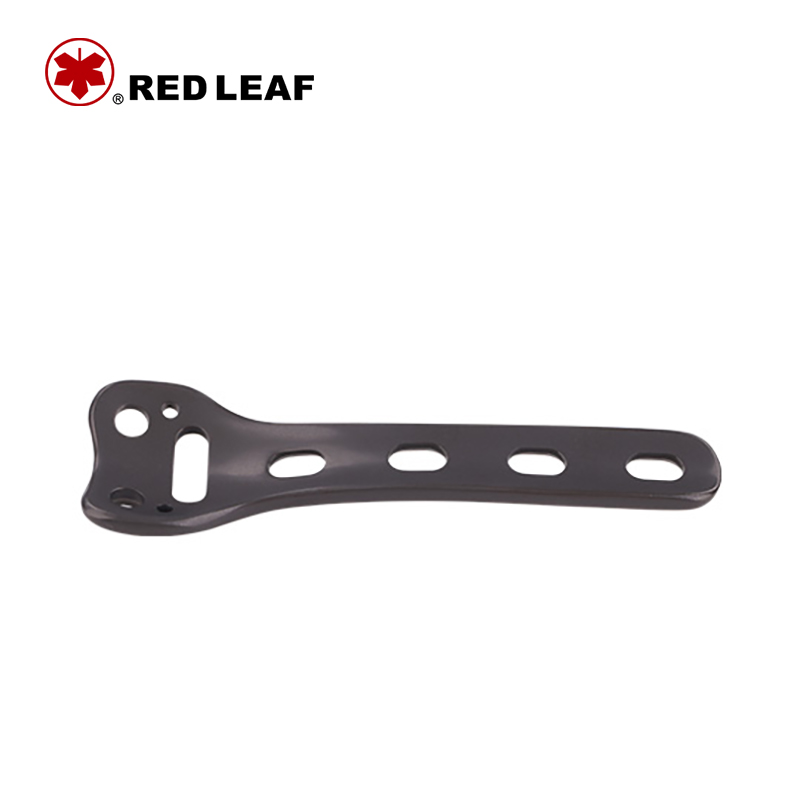

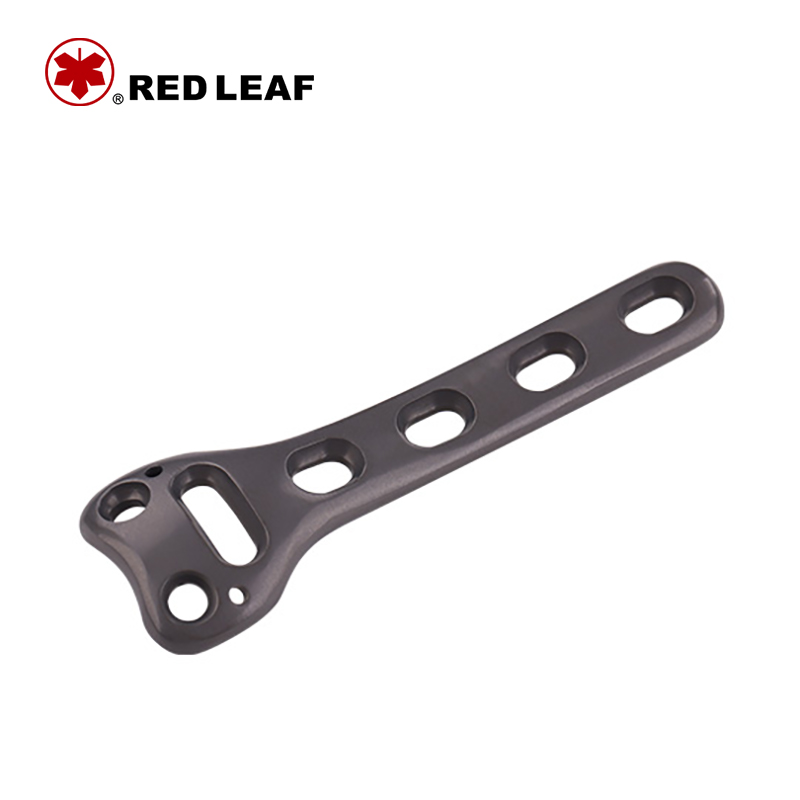

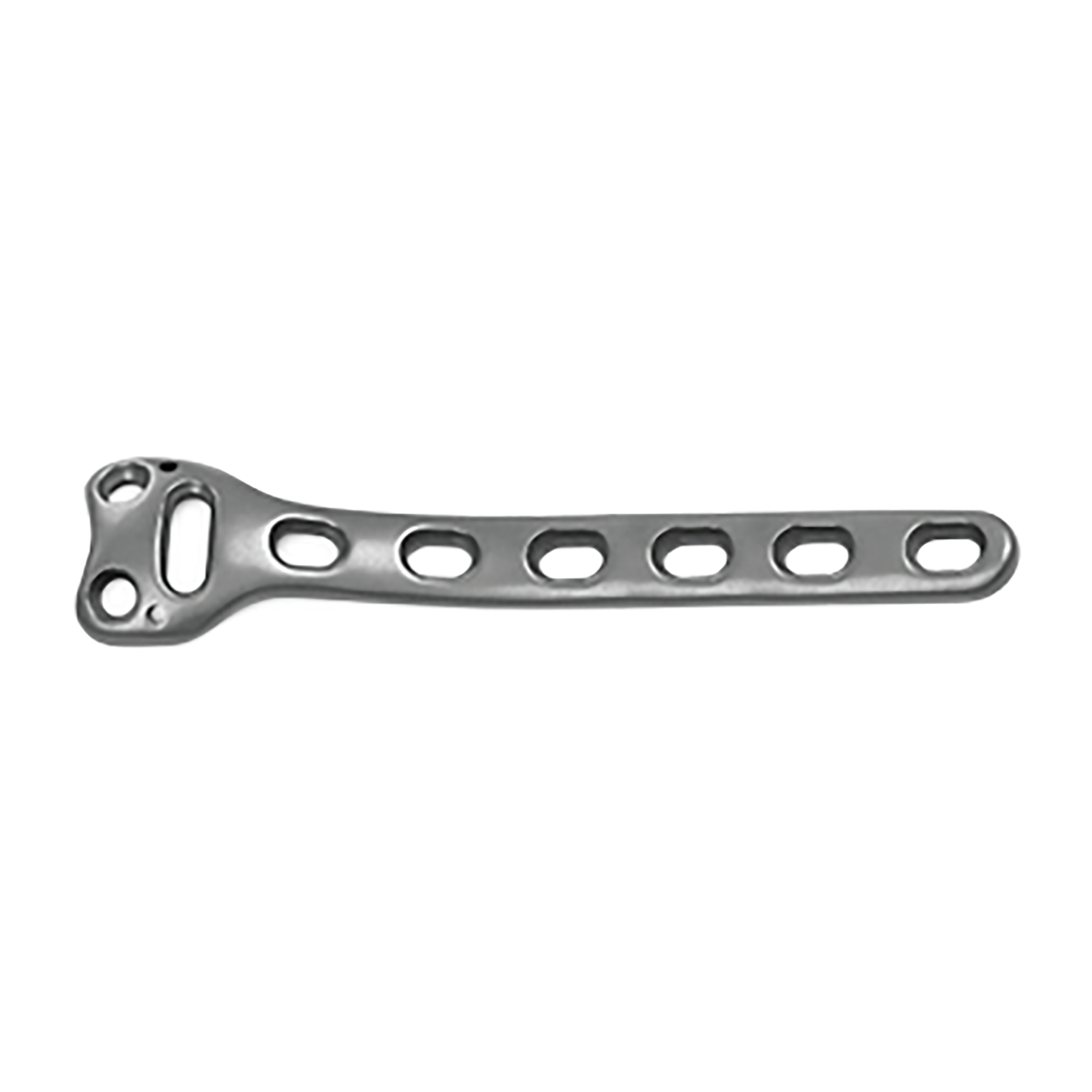

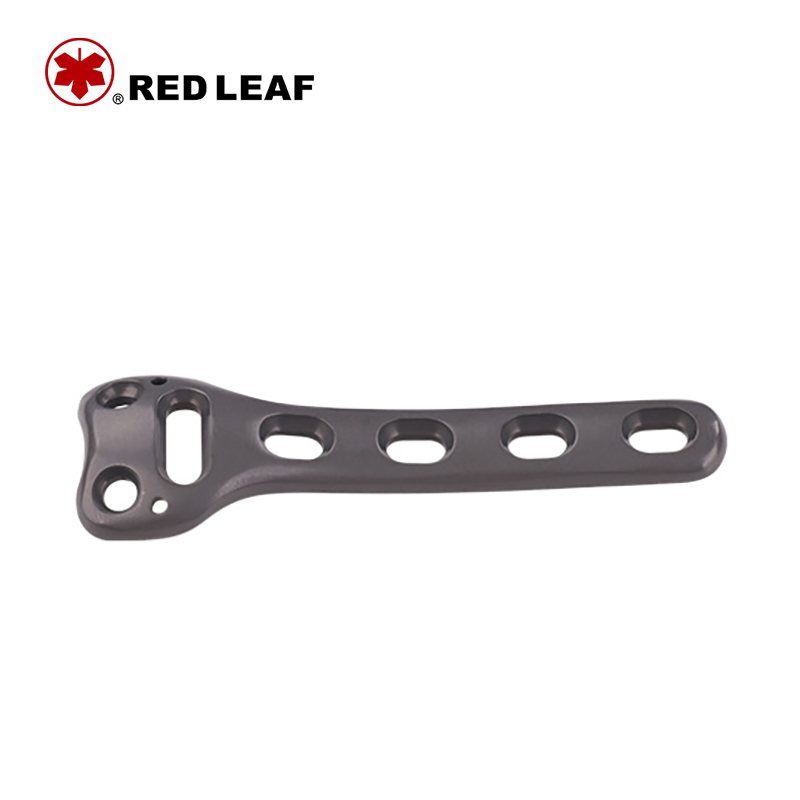

Proximal Humerus Condylus Plates
- Compression Fixation:Stability is achieved by pressing the plate tightly against the bone using standard cortical or cancellous screws.
- No Screw Locking Mechanism:Screws do not lock into the plate holes; fixation depends on friction between the plate and bone.
- Good Anatomical Adaptation:The plate can be shaped and contoured during surgery to match the natural anatomy of the bone.
- Flexible Intraoperative Adjustment:Surgeons can adjust plate position and screw placement during the procedure for better fracture reduction.
- Cost-Effective Solution:Compared with locking plates, non-locking plates are generally more economical and suitable for routine trauma cases.
- Suitable for Good Bone Quality:Best used in patients with normal bone density where strong screw purchase can be achieved.
- Wide Clinical Application:Commonly used for upper limb, lower limb, clavicle, fibula, radius, ulna, and other fracture fixation.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 162921000030 / 162921000031 | 3 holes | 65.5×12×3.0 | Pure Titanium |
| 162921000040 / 162921000041 | 4 holes | 80.5×12×3.0 | Pure Titanium |
| 162921000050 / 162921000051 | 5 holes | 95.5×12×3.0 | Pure Titanium |
| 162921000060 / 162921000061 | 6 holes | 110.5×12×3.0 | Pure Titanium |
| 162921000070 / 162921000071 | 7 holes | 125.5×12×3.0 | Pure Titanium |
| 162921000080 / 162921000081 | 8 holes | 140.5×12×3.0 | Pure Titanium |
| 162921000090 / 162921000091 | 9 holes | 155.5×12×3.0 | Pure Titanium |
| 162921000100 / 162921000101 | 10 holes | 170.5×12×3.0 | Pure Titanium |
Notes:
- The last digit of the product number “0” means non-sterile and “1” means sterile.
- Remark: For proximal humerus fracture, select HA3.5 and HB4.0 screws
