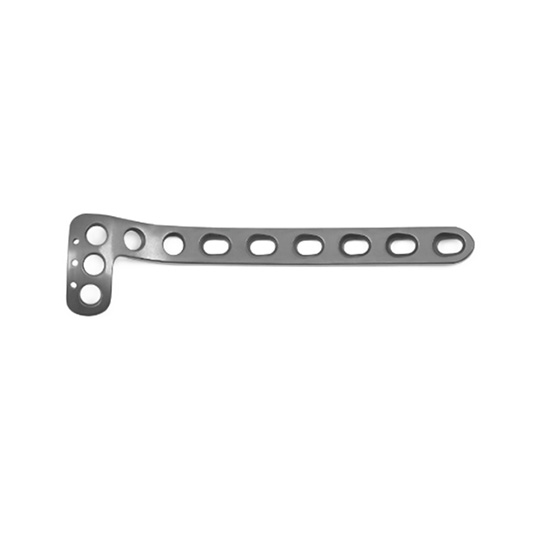

Proximal Tibial L-shaped Plates (Left and Right Types)
- Compression Fixation:Stability is achieved by pressing the plate tightly against the bone using standard cortical or cancellous screws.
- No Screw Locking Mechanism:Screws do not lock into the plate holes; fixation depends on friction between the plate and bone.
- Good Anatomical Adaptation:The plate can be shaped and contoured during surgery to match the natural anatomy of the bone.
- Flexible Intraoperative Adjustment:Surgeons can adjust plate position and screw placement during the procedure for better fracture reduction.
- Cost-Effective Solution:Compared with locking plates, non-locking plates are generally more economical and suitable for routine trauma cases.
- Suitable for Good Bone Quality:Best used in patients with normal bone density where strong screw purchase can be achieved.
- Wide Clinical Application:Commonly used for upper limb, lower limb, clavicle, fibula, radius, ulna, and other fracture fixation.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 164021100040 / 164021100041 | 4 holes L | 76.5×13×3.2 | Pure Titanium |
| 164021200040 / 164021200041 | 4 holes R | 76.5×13×3.2 | Pure Titanium |
| 164021100050 / 164021100051 | 5 holes L | 92.5×13×3.2 | Pure Titanium |
| 164021200050 / 164021200051 | 5 holes R | 92.5×13×3.2 | Pure Titanium |
| 164021100060 / 164021100061 | 6 holes L | 108.5×13×3.2 | Pure Titanium |
| 164021200060 / 164021200061 | 6 holes R | 108.5×13×3.2 | Pure Titanium |
| 164021100080 / 164021100081 | 8 holes L | 140.5×13×3.2 | Pure Titanium |
| 164021200080 / 164021200081 | 8 holes R | 140.5×13×3.2 | Pure Titanium |
| 164021100100 / 164021100101 | 10 holes L | 172.5×13×3.2 | Pure Titanium |
| 164021200100 / 164021200101 | 10 holes R | 172.5×13×3.2 | Pure Titanium |
Notes:
- The last digit of the product number “0” means non-sterile and “1” means sterile.
- Remark: For lateral tibial platform fracture, select HA4.5 and HB6.5 screws
