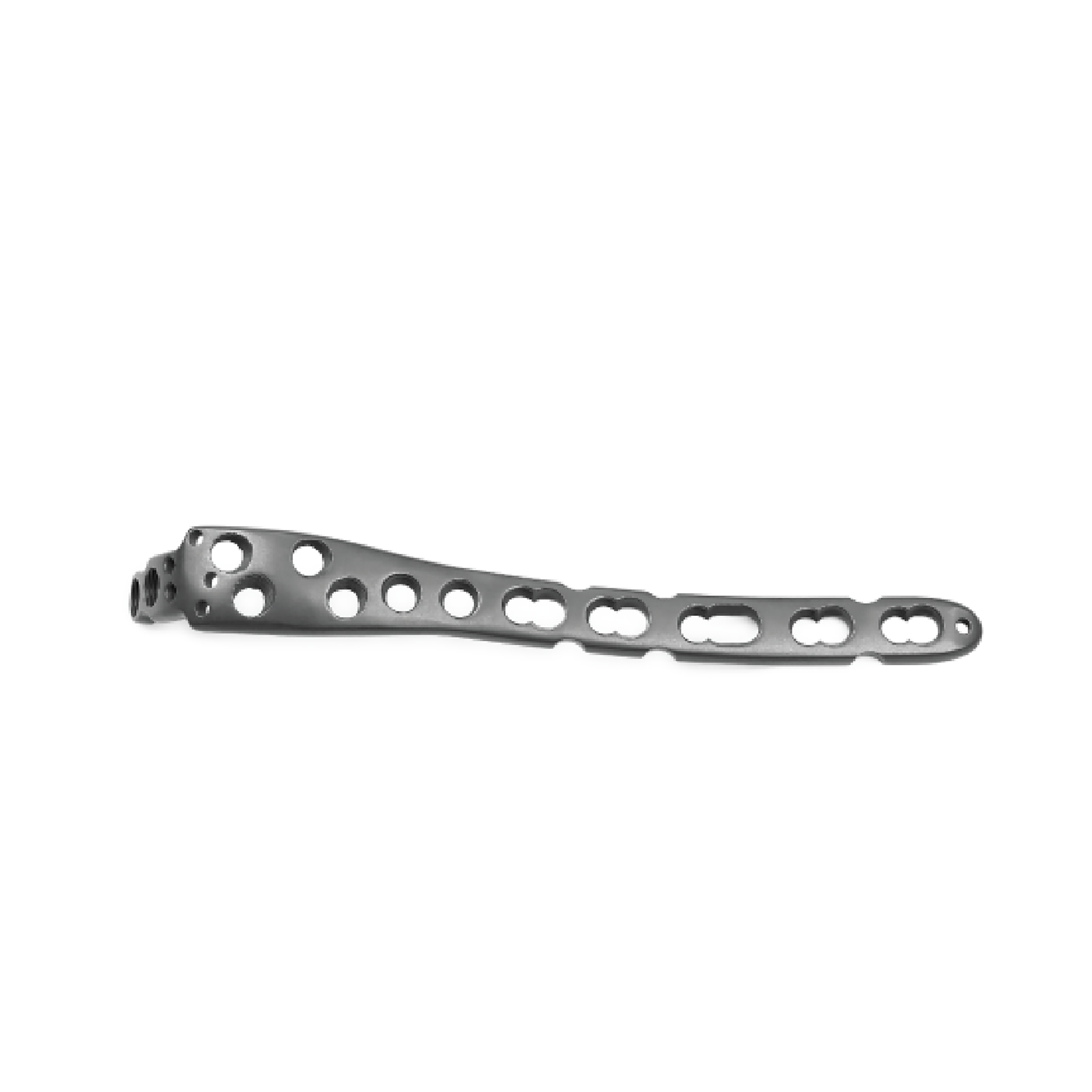

Proximal Ulna Radius Locking Plates (Left and Right Types)
- Anatomical design: The plate shape accommodate humerus anatomy, fits close to minimize soft tissue irration;
- Limited-contact design: With advantages as preservation of blood supply to soft tissue and bone ,reunion of the bone fractures,etc;
- Articular multi-holes design: Convenient for fixing selection, with stable fixation;
- Combination locking and compression holes (Combi holes): Using angular stability or compression according to the requirements.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 1243211000020 / 1243211000021 | 2holes L | 90×10×3 | Pure Titanium |
| 1243212000020 / 1243212000021 | 2holes R | 90×10×3 | Pure Titanium |
| 1243211000030 / 1243211000031 | 3holes L | 103×10×3 | Pure Titanium |
| 1243212000030 / 1243212000031 | 3holes R | 103×10×3 | Pure Titanium |
| 1243211000040 / 1243211000041 | 4holes L | 116×10×3 | Pure Titanium |
| 1243212000040 / 1243212000041 | 4holes R | 116×10×3 | Pure Titanium |
| 1243211000050 / 1243211000051 | 5holes L | 129×10×3 | Pure Titanium |
| 1243212000050 / 1243212000051 | 5holes R | 129×10×3 | Pure Titanium |
| 1243211000060 / 1243211000061 | 6holes L | 142×10×3 | Pure Titanium |
| 1243212000060 / 1243212000061 | 6holes R | 142×10×3 | Pure Titanium |
| 1243211000070 / 1243211000071 | 7holes L | 155×10×3 | Pure Titanium |
| 1243212000070 / 1243212000071 | 7holes R | 155×10×3 | Pure Titanium |
| 1243211000080 / 1243211000081 | 8holes L | 168×10×3 | Pure Titanium |
| 1243212000080 / 1243212000081 | 8holes R | 168×10×3 | Pure Titanium |
| 1243211000090 / 1243211000091 | 9holes L | 181×10×3 | Pure Titanium |
| 1243212000090 / 1243212000091 | 9holes R | 181×10×3 | Pure Titanium |
| 1243211000100 / 1243211000101 | 10holes L | 194×10×3 | Pure Titanium |
| 1243212000100 / 1243212000101 | 10holes R | 194×10×3 | Pure Titanium |
| 124321100110 / 124321100111 | 11holes L | 207×10×3 | Pure Titanium |
| 124321200110 / 124321200111 | 11holes R | 207×10×3 | Pure Titanium |
The last digit of the product number “0” means non-sterile and “1” means sterile.
Remark: For olecranon fracture, select HC3.5、HA3.5 screws.
