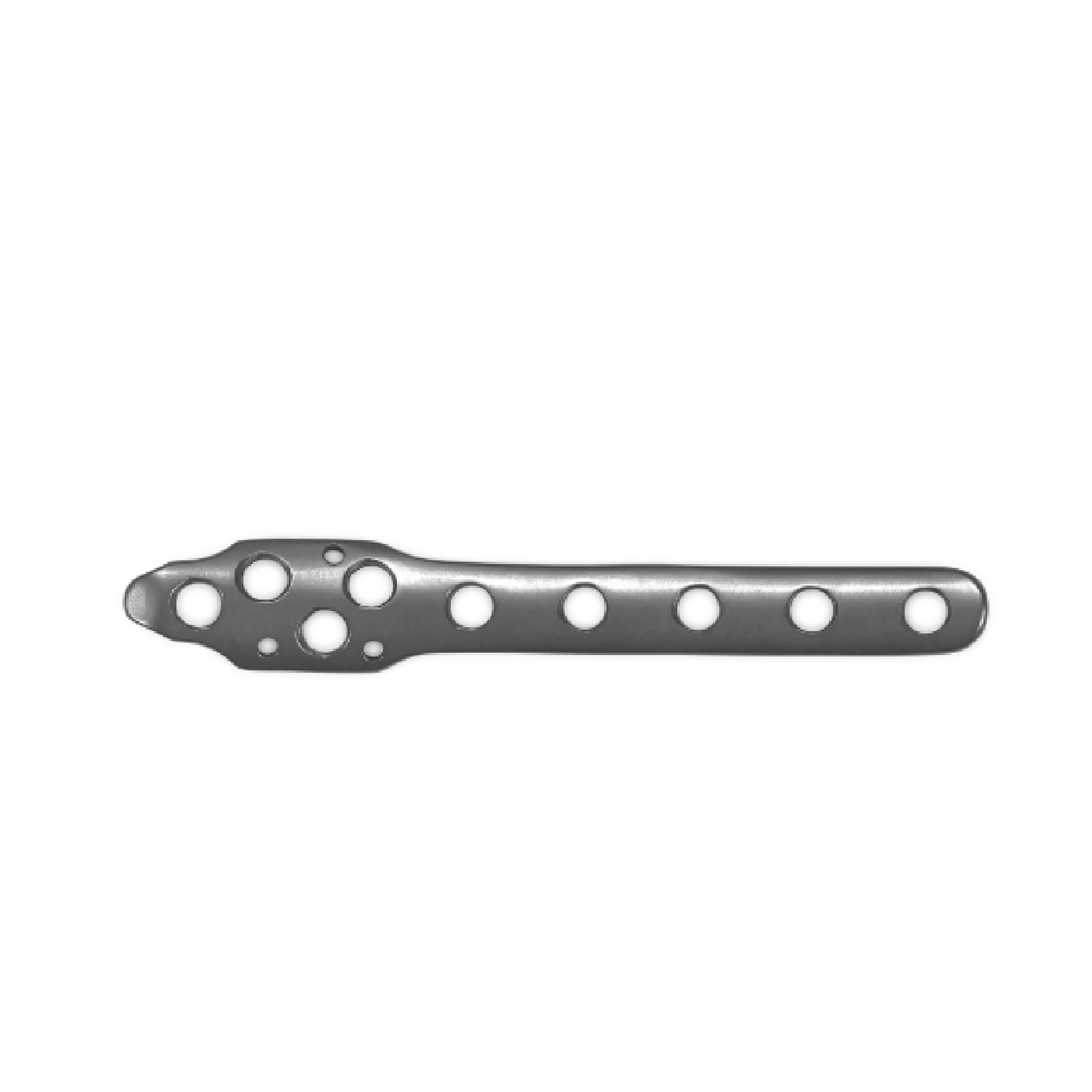

UIna Olecranon Locking Plates III
- Anatomical design: The plate shape accommodate humerus anatomy, fits close to minimize soft tissue irration;
- Limited-contact design: With advantages as preservation of blood supply to soft tissue and bone ,reunion of the bone fractures,etc;
- Articular multi-holes design: Convenient for fixing selection, with stable fixation;
- Combination locking and compression holes (Combi holes): Using angular stability or compression according to the requirements.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 124621000030 / 124621000031 | 3holes | 70.5×10×1.5 | Pure Titanium |
| 124621000040 / 124621000041 | 4holes | 82.5×10×1.5 | Pure Titanium |
| 124621000050 / 124621000051 | 5holes | 94.5×10×1.5 | Pure Titanium |
| 124621000060 / 124621000061 | 6holes | 106.5×10×1.5 | Pure Titanium |
| 124621000070 / 124621000071 | 7holes | 118.5×10×1.5 | Pure Titanium |
The last digit of the product number “0” means non-sterile and “1” means sterile.
Remark: For distal radius fracture, select HC3.5 screws.
