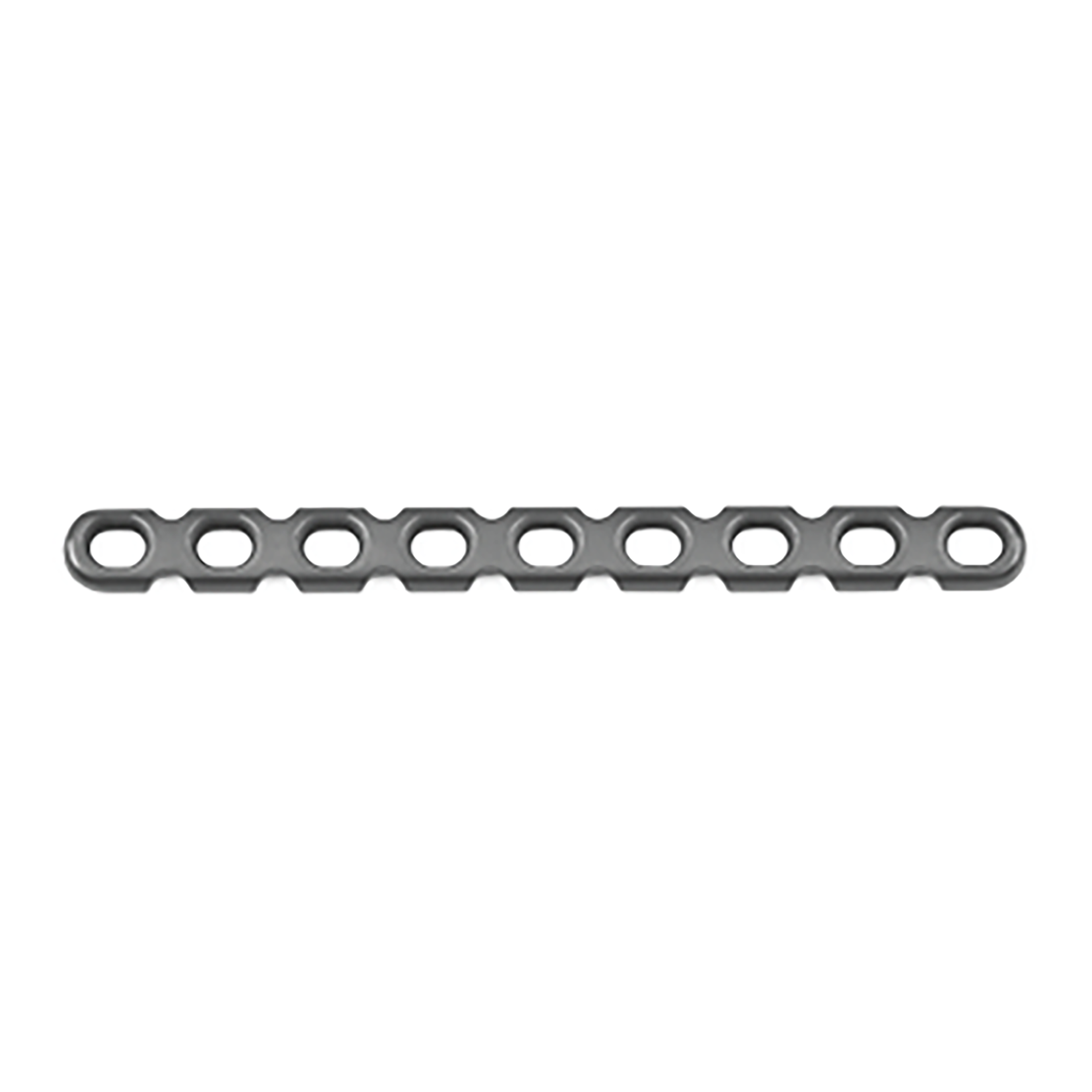

Reconstruction Plates
- Compression Fixation:Stability is achieved by pressing the plate tightly against the bone using standard cortical or cancellous screws.
- No Screw Locking Mechanism:Screws do not lock into the plate holes; fixation depends on friction between the plate and bone.
- Good Anatomical Adaptation:The plate can be shaped and contoured during surgery to match the natural anatomy of the bone.
- Flexible Intraoperative Adjustment:Surgeons can adjust plate position and screw placement during the procedure for better fracture reduction.
- Cost-Effective Solution:Compared with locking plates, non-locking plates are generally more economical and suitable for routine trauma cases.
- Suitable for Good Bone Quality:Best used in patients with normal bone density where strong screw purchase can be achieved.
- Wide Clinical Application:Commonly used for upper limb, lower limb, clavicle, fibula, radius, ulna, and other fracture fixation.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 163321000030 / 163321000031 | 3 holes | 36×10×3 | Pure Titanium |
| 163321000040 / 163321000041 | 4 holes | 48×10×3 | Pure Titanium |
| 163321000050 / 163321000051 | 5 holes | 60×10×3 | Pure Titanium |
| 163321000060 / 163321000061 | 6 holes | 72×10×3 | Pure Titanium |
| 163321000070 / 163321000071 | 7 holes | 84×10×3 | Pure Titanium |
| 163321000080 / 163321000081 | 8 holes | 96×10×3 | Pure Titanium |
| 163321000090 / 163321000091 | 9 holes | 108×10×3 | Pure Titanium |
| 163321000100 / 163321000101 | 10 holes | 120×10×3 | Pure Titanium |
| 163321000110 / 163321000111 | 11 holes | 132×10×3 | Pure Titanium |
| 163321000120 / 163321000121 | 12 holes | 144×10×3 | Pure Titanium |
| 163321000130 / 163321000131 | 13 holes | 156×10×3 | Pure Titanium |
| 163321000140 / 163321000141 | 14 holes | 168×10×3 | Pure Titanium |
| 163321000150 / 163321000151 | 15 holes | 180×10×3 | Pure Titanium |
| 163321000160 / 163321000161 | 16 holes | 192×10×3 | Pure Titanium |
Notes:
- The last digit of the product number “0” means non-sterile and “1” means sterile.
- Remark: For pelvic shoulder bone far-end, ulna, fibula and external malleolus fracture, choose screw HA3.5, HB4.0 full thread screws
