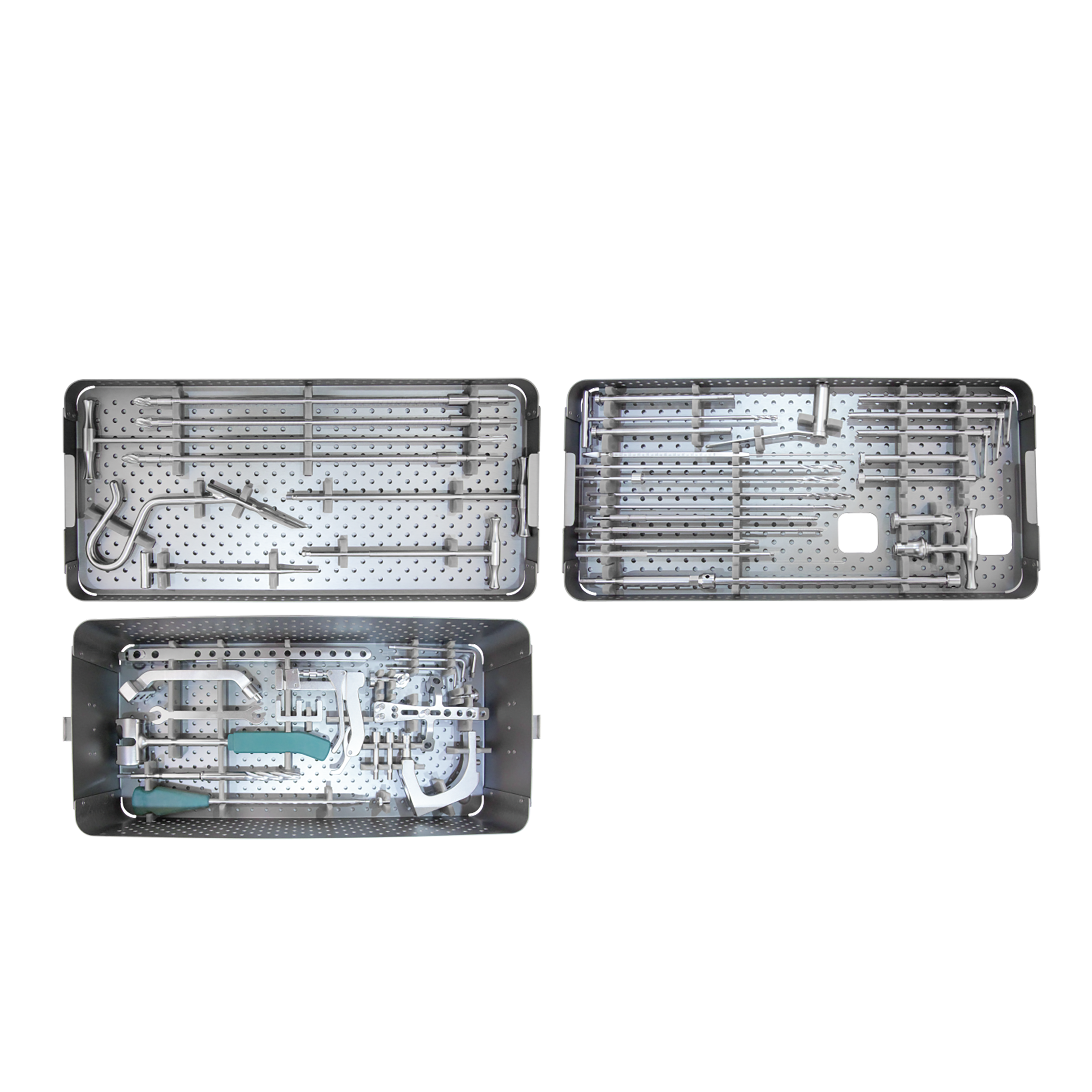

Retrograde Femur Nail Instrument Set

Intramedullary Nail
The primary implant inserted along the bone’s medullary canal through a small incision to stabilize the fracture.
Reamers
Used to prepare the medullary canal by gradually enlarging the bone channel to fit the nail.
Locking Bolts / Screws
Inserted through the cortical bone into the nail to prevent rotation and shortening.
Guides
Ensure accurate alignment and screw placement during nail insertion.
Bone Awls
Create pilot holes in the cortical bone for locking screw insertion.
Extractors
Used to remove the intramedullary nail once the fracture has healed.
Wrenches
Tighten or loosen locking screws and other components.
Surgical Drills
Create pilot holes for screw insertion during surgery.

More Information About Our Products

No.	Device No.	Device Name
1	QI003-01	Multihole guide pin sleeve
2	QI003-02	Protection sleeve
3	QI003-03	T-handle for quick installation
4	QI003-04	Guide pin holder
5	QI003-05	Reset rod (guide pin introducer)
6	QI003-06	Threaded guide pin Φ3.2×320
7	QI003-07	Hollow awl
8	QI003-08	Ballhead guide pin (optional)
9	QI003-09	Proximal hollow reaming drill
10	QI003-10	Soft reamer Φ10
11	QI003-11	Soft reamer Φ11
12	QI003-12	Soft reamer Φ12
13	QI003-13	Handle
14	QI003-14	Open wrench SW11
15	QI003-15	Slide hammer
16	QI003-16	Connecting bolt wrench SW6.5
17	QI003-17	Connecting rod
18	QI003-18	Main nail extraction rod
19	QI003-19	Distal locating device
20	QI003-20	Distal locating device locking wheel
21	QI003-21	Locating rod
22	QI003-22	Locating rock
23	QI003-23	Handle locking wheel
24	QI003-24	Proximal guide rod
25	QI003-25	Stop wrench SW3
26	QI003-26	Handle wrench SW4
27	QI003-27	Locking wheel wrench SW5
28	QI003-28	Flat drill Φ5
29	QI003-29	Guide rod locking wheel
30	QI003-30	Distal guide rod
31	QI003-31	Locking screw drill sleeve Φ4
32	QI003-32	Locking screw sleeve
33	QI003-33	Distal soft tissue separator
34	QI003-34	Drill sleeve
35	QI003-35	Sleeve
36	QI003-36	Proximal soft tissue separator
37	QI003-37	Hex screwdriver SW3.5
38	QI003-38	Locking screw tap 6.5
39	QI003-39	Locking screw tap 5.0
40	QI003-40	Drill bit +Stop Φ4
41	QI003-41	Drill bit Φ5×300
42	QI003-42	Drill bit Φ3.5×300
43	QI003-43	Drill bit for locking screw hole Φ4
44	QI003-44	End cap hollow screwdriver SW4.8
45	QI003-45	Depth gauge for distal locking screw hole
46	QI003-46	End cap holding rod SW4
47	QI003-47	Locking screw wrench SW4
