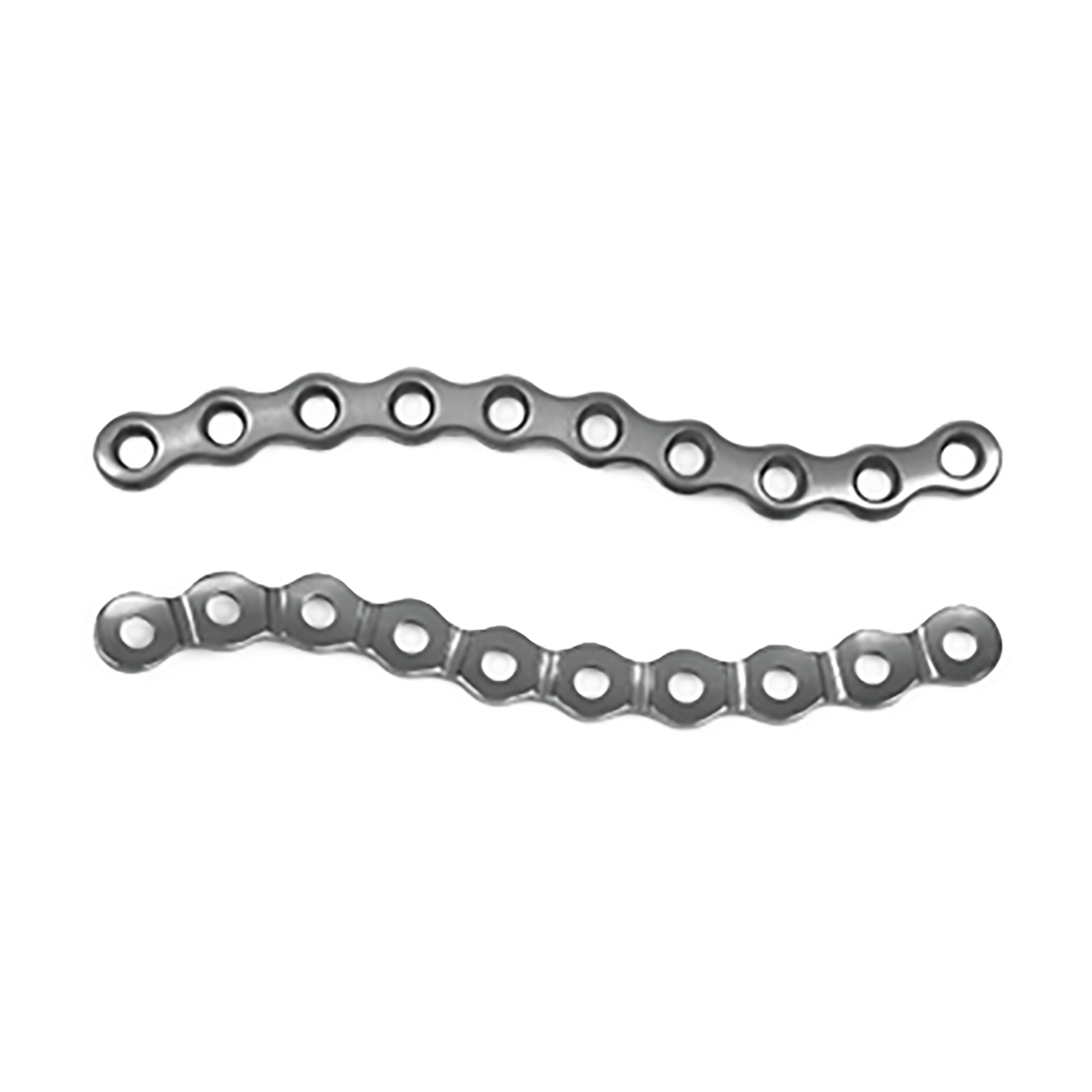

S-clavicle Plates (Left and Right Types)
- Compression Fixation:Stability is achieved by pressing the plate tightly against the bone using standard cortical or cancellous screws.
- No Screw Locking Mechanism:Screws do not lock into the plate holes; fixation depends on friction between the plate and bone.
- Good Anatomical Adaptation:The plate can be shaped and contoured during surgery to match the natural anatomy of the bone.
- Flexible Intraoperative Adjustment:Surgeons can adjust plate position and screw placement during the procedure for better fracture reduction.
- Cost-Effective Solution:Compared with locking plates, non-locking plates are generally more economical and suitable for routine trauma cases.
- Suitable for Good Bone Quality:Best used in patients with normal bone density where strong screw purchase can be achieved.
- Wide Clinical Application:Commonly used for upper limb, lower limb, clavicle, fibula, radius, ulna, and other fracture fixation.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 163121100040 / 163121100041 | 4 holes L | 46×10.5×3 | Pure Titanium |
| 163121200040 / 163121200041 | 4 holes R | 46×10.5×3 | Pure Titanium |
| 163121100050 / 163121100051 | 5 holes L | 58×10.5×3 | Pure Titanium |
| 163121200050 / 163121200051 | 5 holes R | 58×10.5×3 | Pure Titanium |
| 163121100060 / 163121100061 | 6 holes L | 70×10.5×3 | Pure Titanium |
| 163121200060 / 163121200061 | 6 holes R | 70×10.5×3 | Pure Titanium |
| 163121100070 / 163121100071 | 7 holes L | 82×10.5×3 | Pure Titanium |
| 163121200070 / 163121200071 | 7 holes R | 82×10.5×3 | Pure Titanium |
| 163121100080 / 163121100081 | 8 holes L | 93×10.5×3 | Pure Titanium |
| 163121200080 / 163121200081 | 8 holes R | 93×10.5×3 | Pure Titanium |
| 163121100090 / 163121100091 | 9 holes L | 104×10.5×3 | Pure Titanium |
| 163121200090 / 163121200091 | 9 holes R | 104×10.5×3 | Pure Titanium |
| 163121100100 / 163121100101 | 10 holes L | 115×10.5×3 | Pure Titanium |
| 163121200100 / 163121200101 | 10 holes R | 115×10.5×3 | Pure Titanium |
| 163121100120 / 163121100121 | 12 holes L | 135×10.5×3 | Pure Titanium |
| 163121200120 / 163121200121 | 12 holes R | 135×10.5×3 | Pure Titanium |
Notes:
- The last digit of the product number “0” means non-sterile and “1” means sterile.
- Remark: For clavicle fracture, choose HA3.5 and HB3.5 screws
