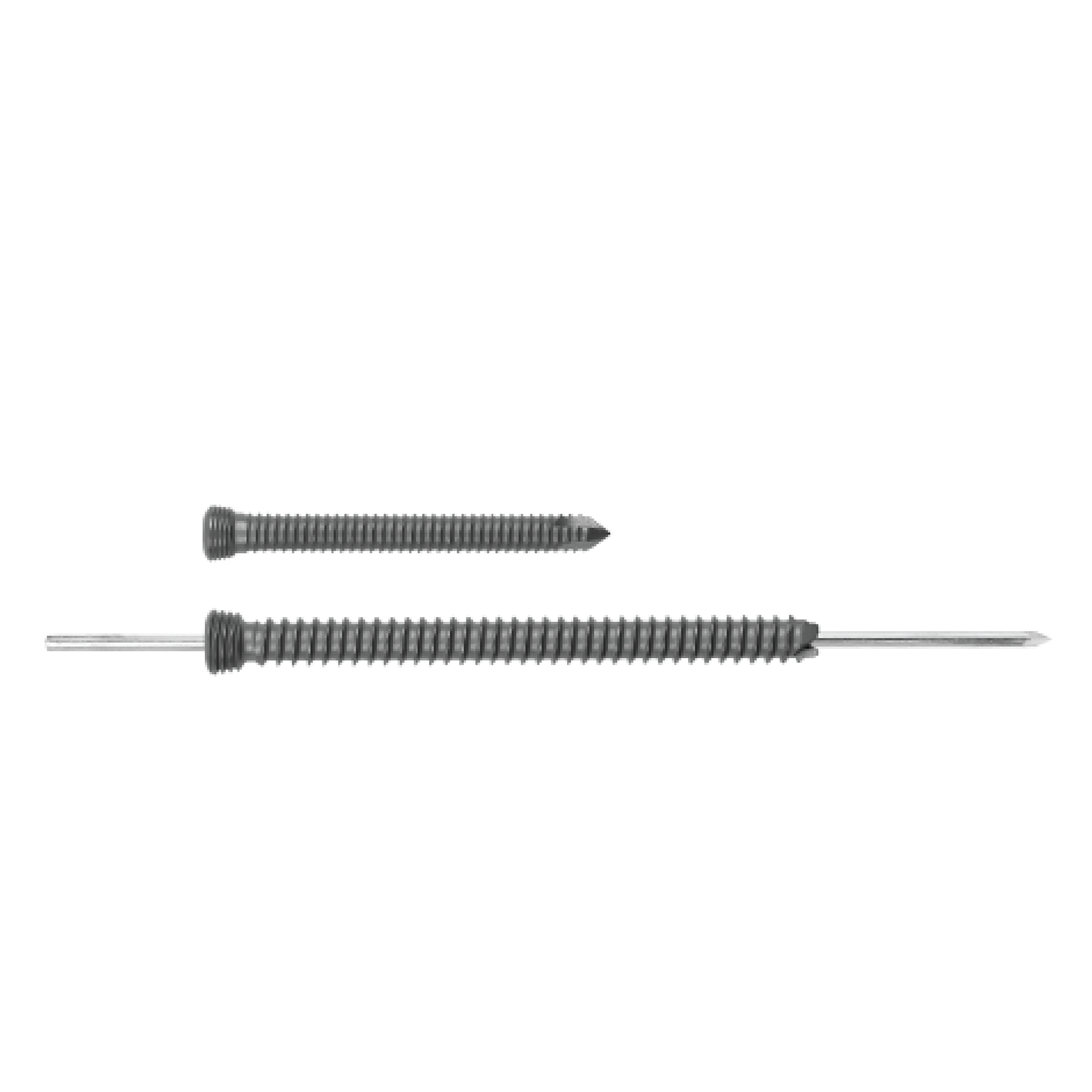

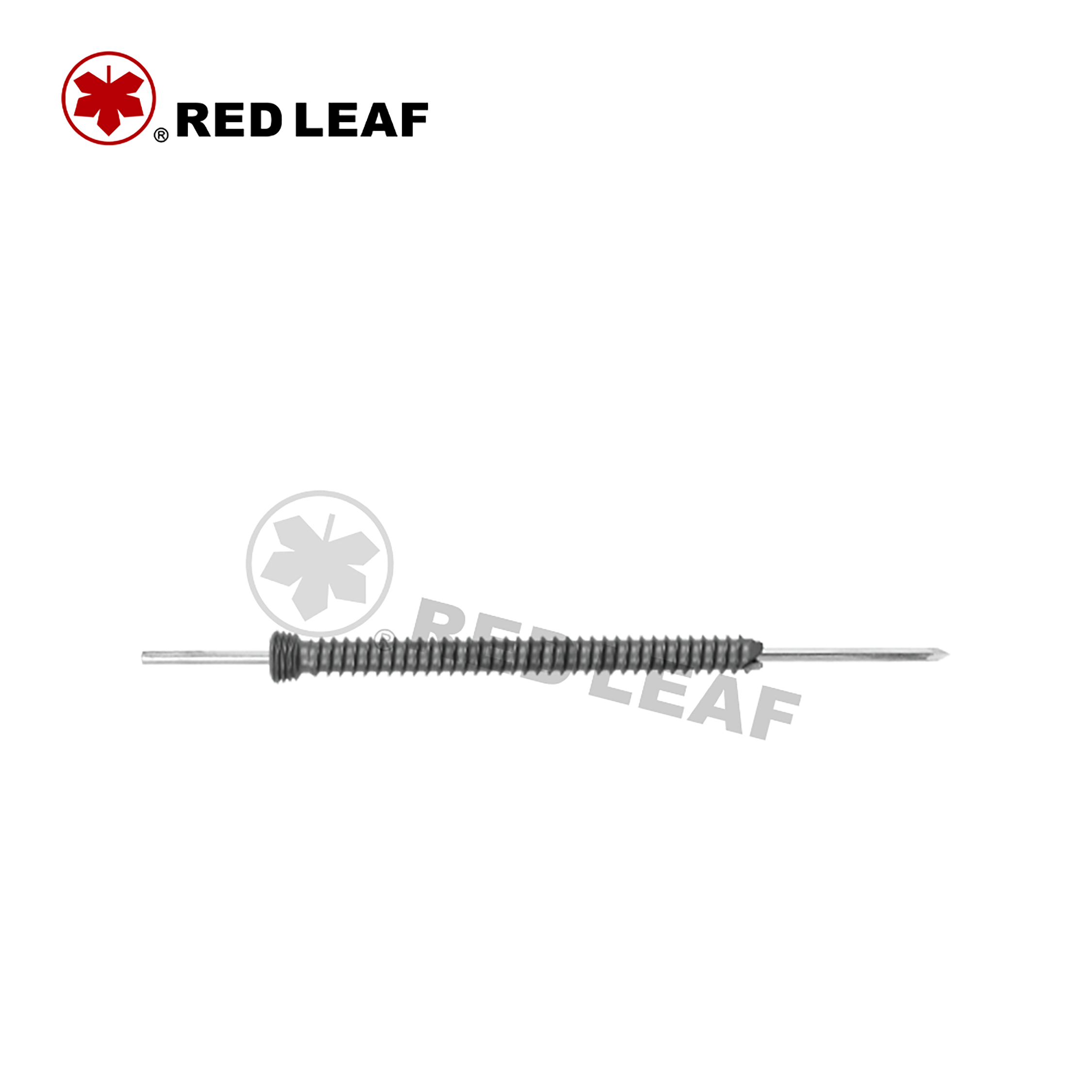

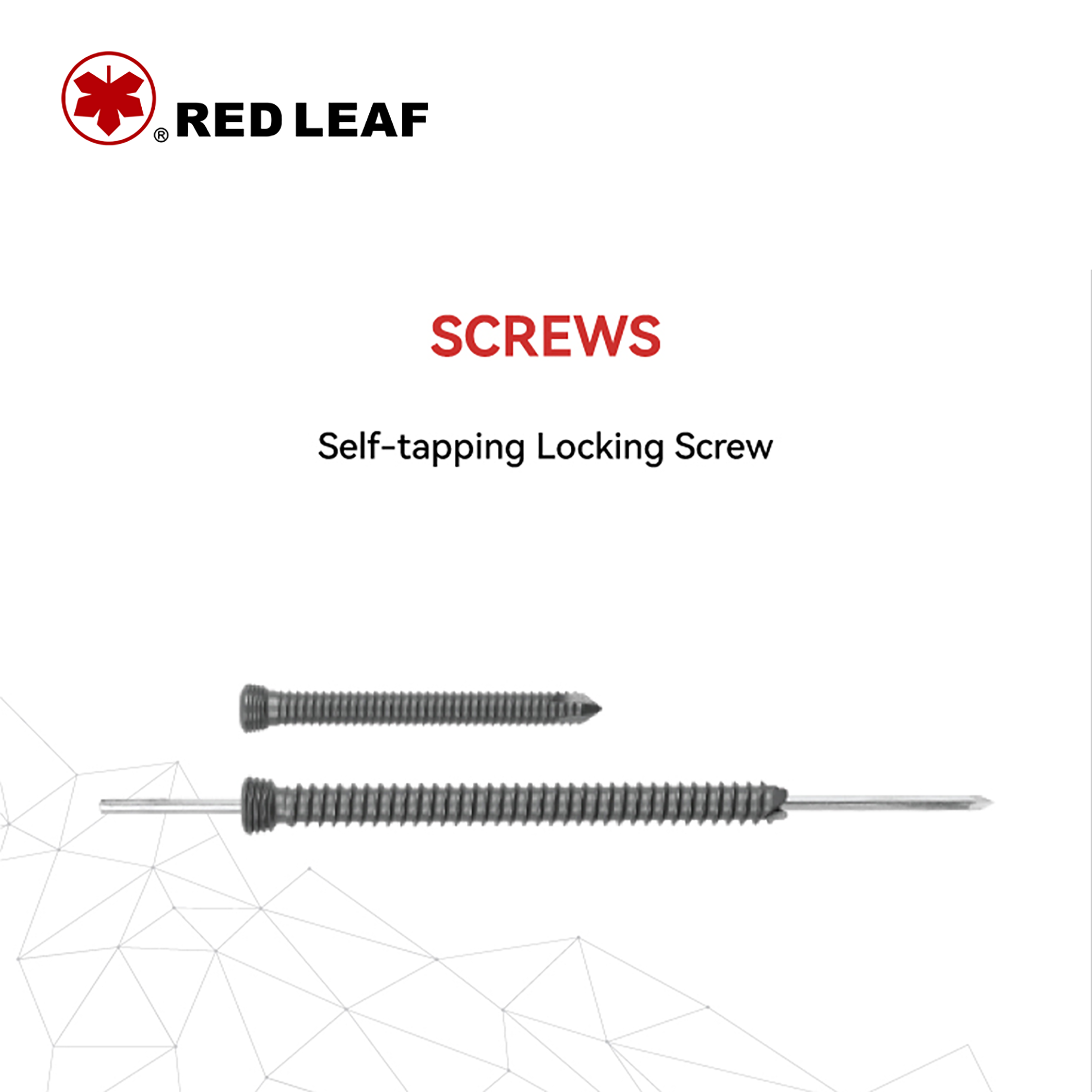

Self-tapping Locking Screw

  • Double-head hollow compression screw:With the design of hollow-headed compression, immerge, low notch and self-tapping.
  • Hollow Design: Improving the accuracy of percutaneous implantation.
  • Design of pitch changing screw thread and taper: Pitch is reducing from head to end therefore the bone entering speed of the head part is faster than the tail part which has the effect of compression on fracture part when screwed in.
  • Full thread design: this design can better maintain the compression effect when encountering periodical load.
  • Headless design: Applicable to joints part which helps to reduce collisions and irritation to the soft tissues.
Send Inquiry Now

More Information About Our Products

  • Parameter List
Product No. Range (Non-sterile / Sterile)Screw Head TypeSpecification (Diameter×Length)Material
130111020060 ~ 130111020220 / 130111020061 ~ 130111020221Torx2.0×6 ~ 22Titanium Alloy
130211027060 ~ 130211027300 / 130211027061 ~ 130211027301Torx2.7×6 ~ 30Titanium Alloy
130311835120 ~ 130311835600 / 130311835121 ~ 130311835601Torx3.5×12 ~ 60Titanium Alloy
130311935120 ~ 130311935600 / 130311935121 ~ 130311935601Hexagonal3.5×12 ~ 60Titanium Alloy
130411840200 ~ 130411840600 / 130411840201 ~ 130411840601Torx4.0×20 ~ 60Titanium Alloy
130411840650 ~ 130411840800 / 130411840651 ~ 130411840801Torx4.0×65 ~ 80Titanium Alloy
130411940200 ~ 130411940600 / 130411940201 ~ 130411940601Hexagonal4.0×20 ~ 60Titanium Alloy
130411940650 ~ 130411940800 / 130411940651 ~ 130411940801Hexagonal4.0×65 ~ 80Titanium Alloy
130511850200 ~ 130511850700 / 130511850201 ~ 130511850701Torx5.0×20 ~ 70Titanium Alloy
130511850750 ~ 1305118501000 / 130511850751 ~ 1305118501001Torx5.0×75 ~ 100Titanium Alloy
130511950200 ~ 130511950700 / 130511950201 ~ 130511950701Hexagonal5.0×20 ~ 70Titanium Alloy
130511950750 ~ 1305119501000 / 130511950751 ~ 1305119501001Hexagonal5.0×75 ~ 100Titanium Alloy
130611065500 ~ 1306110651100 / 130611065501 ~ 1306110651101Torx/Solid6.5×50 ~ 110Titanium Alloy
130711065500 ~ 1307110651100 / 130711065501 ~ 1307110651101Torx/Cannulated6.5×50 ~ 110Titanium Alloy
130811073500 ~ 1308110731100 / 130811073501 ~ 1308110731101Torx7.3×50 ~ 110Titanium Alloy
  • The last digit of the product number “0” means non-sterile and “1” means sterile.
  • Remark:
    • 2.0/2.7/3.5/4.0(20~60) / 5.0(20~70): Available at intervals of 2mm
    • 4.0(65~80) / 5.0(75~100) / 6.5/7.3: Available at intervals of 5mm
