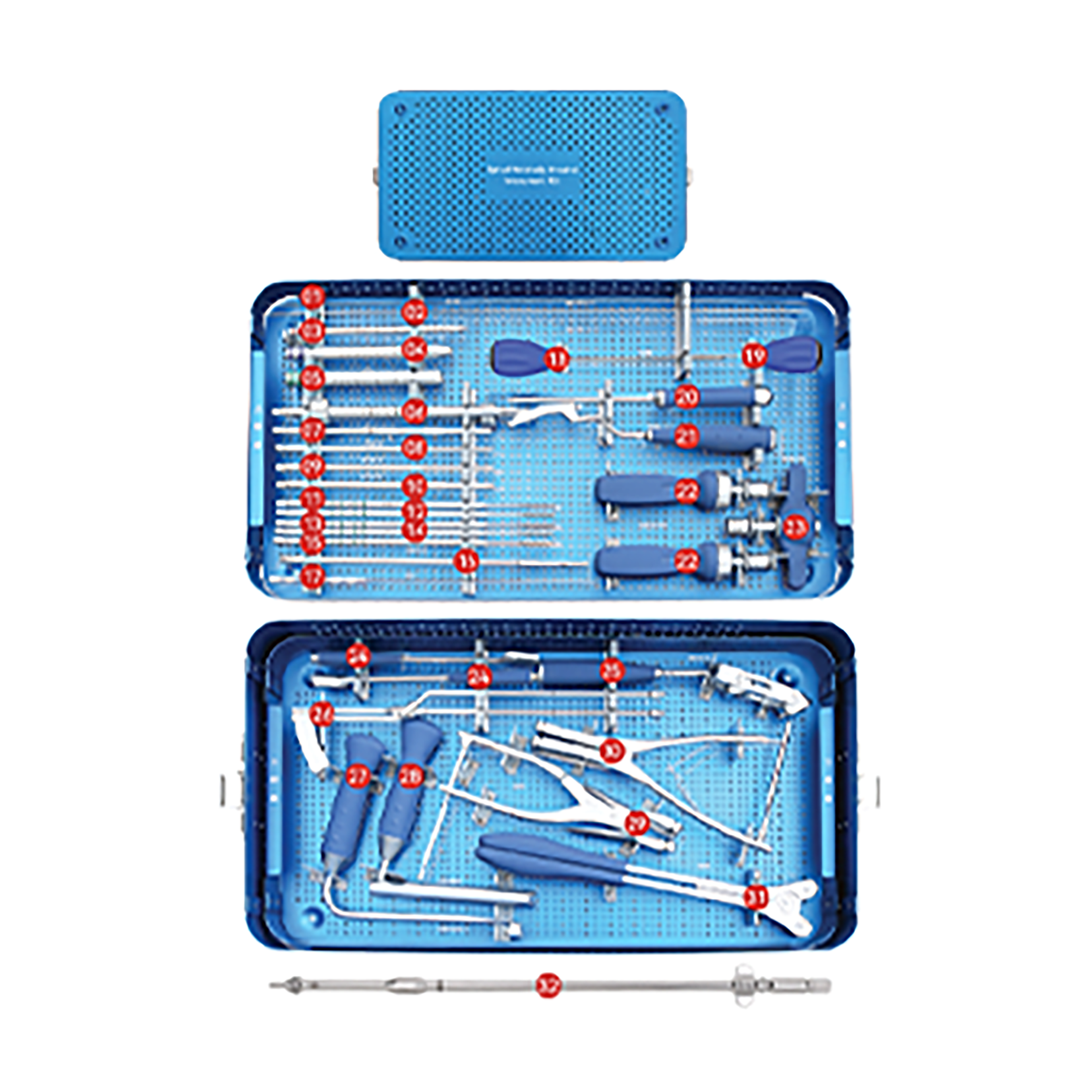

Spinal Minimally Invasive Instrument Set
- Full process minimally invasive solution: A complete set of 32 instruments covers the entire process of MIS Pedicle Screw Fixation for posterior spine minimally invasive pedicle screw surgery, from guide pin positioning, drilling and tapping, to screw insertion, rod handling, and expansion reduction, without the need for additional tools and adapted to standardized surgical procedures.
- Multi specification precise adaptation: Tapping, screwdrivers, and drill sleeves are available in multiple size specifications (such as SW2.5/4.0/4.5 batch heads, Φ 0-7.0 multi specification tapping), compatible with mainstream minimally invasive spinal screw and titanium rod systems, adaptable to different anatomical structures and screw models, reducing surgical adaptation risks.
- Efficient ergonomic design: quick installation hexagonal screwdriver, hollow handle with ratchet, and T-shaped quick connect handle, greatly improving operational efficiency; The anti slip blue handle design provides stable grip during surgery, reduces operational fatigue during prolonged surgery, and enhances the surgeon’s experience.
More Information About Our Products
- Parameter List
| No. | Product No. | Product Name | Specification |
|---|---|---|---|
| 1 | QS100-001 | Conical Guide Pin | Φ1.5×500 |
| 2 | QS100-002 | Blunt Guide Pin | Φ1.5×500 |
| 3 | QS100-003 | Drill Guide | Φ7.2xΦ1.7×164 |
| 4 | QS100-004 | Drill Guide | Φ13xΦ7.3×153 |
| 5 | QS100-005 | Drill Guide | Φ15.6xΦ13×164 |
| 6 | QS100-006 | Universal Screwdriver | – |
| 7 | QS100-007 | Rod Pushing | Φ6 |
| 8 | QS100-008 | Fast-loading Hex Screwdrive | SW2.5 |
| 9 | QS100-009 | Fast-loading Hex Screwdrive | SW4.0 |
| 10 | QS100-010 | Fast-loading Hex Screwdrive | SW4.5 |
| 11 | QS100-011 | Fast-loading Cannulated Tap | Φ5.0×1.5 Doubled Head |
| 12 | QS100-012 | Fast-loading Cannulated Tap | Φ5.5×1.5 Doubled Head |
| 13 | QS100-013 | Fast-loading Cannulated Tap | Φ6.0×1.5 Doubled Head |
| 14 | QS100-014 | Fast-loading Cannulated Tap | Φ6.5×1.5 Doubled Head |
| 15 | QS100-015 | Fast-loading Cannulated Tap | Φ7.0×1.5 Doubled Head |
| 16 | QS100-016 | Pre Locking Screwdriver | SW4.5 |
| 17 | QS100-017 | Guide Pin | Curved |
| 18 | QS100-018 | Open Device | Φ3.3×233 |
| 19 | QS100-019 | Open Device | – |
| 20 | QS100-020 | Screwdriver | SW3.5 |
| 21 | QS100-021 | Rod-holing (Long) | – |
| 22 | QS100-022 | Ratchet Handle | Cannulated |
| 23 | QS100-023 | T Quick-coupling Handle | Solid |
| 24 | QS100-024 | Breaking Device | – |
| 25 | QS100-025 | Pulling Forceps | – |
| 26 | QS100-026 | Rod Measuring Device | – |
| 27 | QS100-027 | Breaking Device Counter Wrench | – |
| 28 | QS100-028 | Counter Sleeve Wrench | – |
| 29 | QS100-029 | Pressure Closure Forceps | – |
| 30 | QS100-030 | Prop Open Forceps | – |
| 31 | QS100-031 | Rod Bender | 330 |
| 32 | QS100-032 | Bone Cement Propeller | – |
