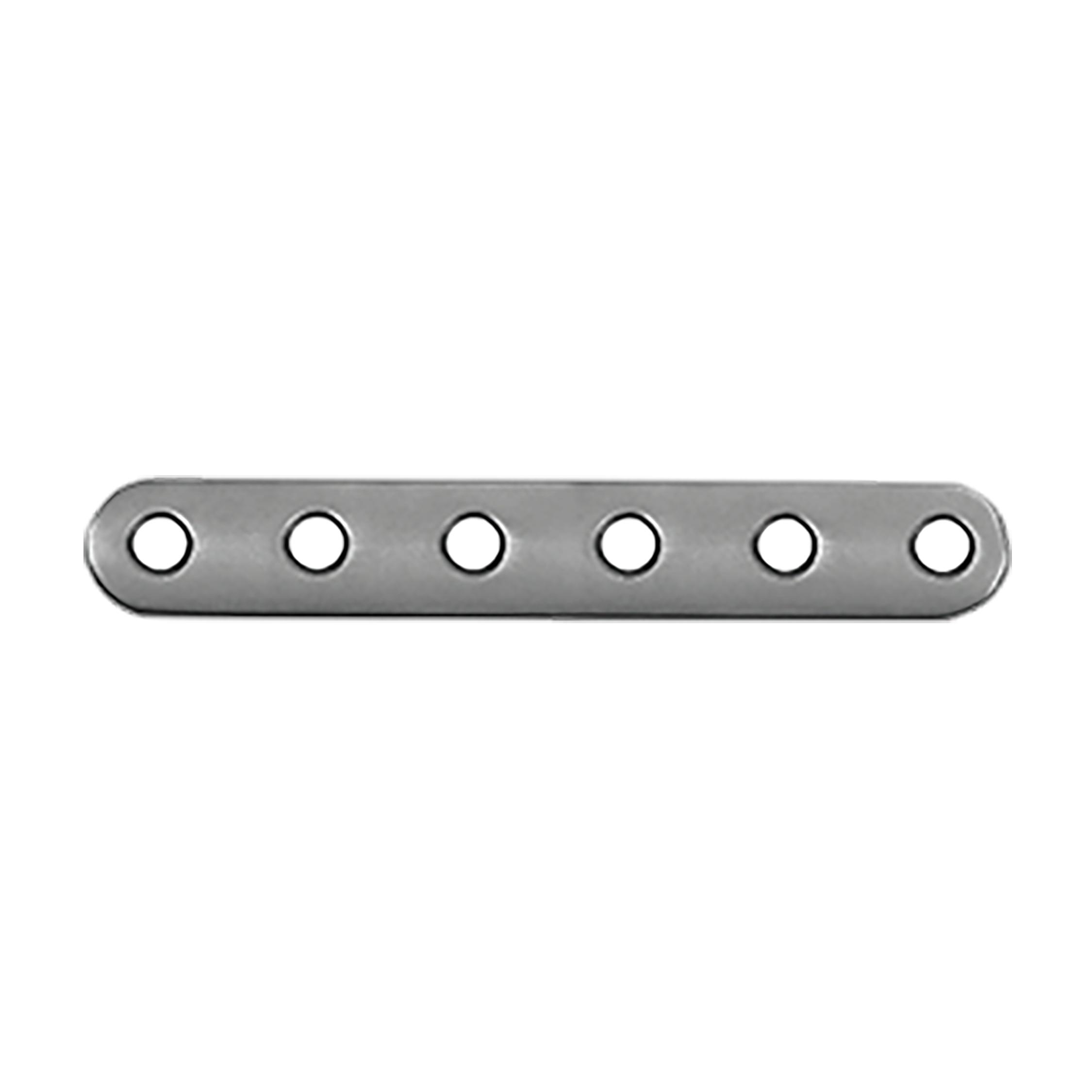

Straight Metacarpal Locking Plates Type I
- Low incisure design: reduce the irritability for cartilage tissue;
- Anatomical design: reduce intraoperative shaping;
- Locking design: with the Angle stability;
- Easy shear design: reduce inventory pressure.
- Tapping design: easy for screw tapping in;
- Plum hexagonal design: reduce the risk of sliding tooth;
- Different specifications design: easy to various parts of fracture treatment.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 121621000030 / 121621000031 | 3 holes | 24×7.5×1.2 | Pure Titanium |
| 121621000040 / 121621000041 | 4 holes | 32×7.5×1.2 | Pure Titanium |
| 121621000050 / 121621000051 | 5 holes | 40×7.5×1.2 | Pure Titanium |
| 121621000060 / 121621000061 | 6 holes | 48×7.5×1.2 | Pure Titanium |
| 121621000070 / 121621000071 | 7 holes | 56×7.5×1.2 | Pure Titanium |
| 121621000080 / 121621000081 | 8 holes | 64×7.5×1.2 | Pure Titanium |
Notes:
- The last digit of the product number “0” means non-sterile and “1” means sterile.
- Remark: Used for metacarpal fracture, select HC2.7 screws
