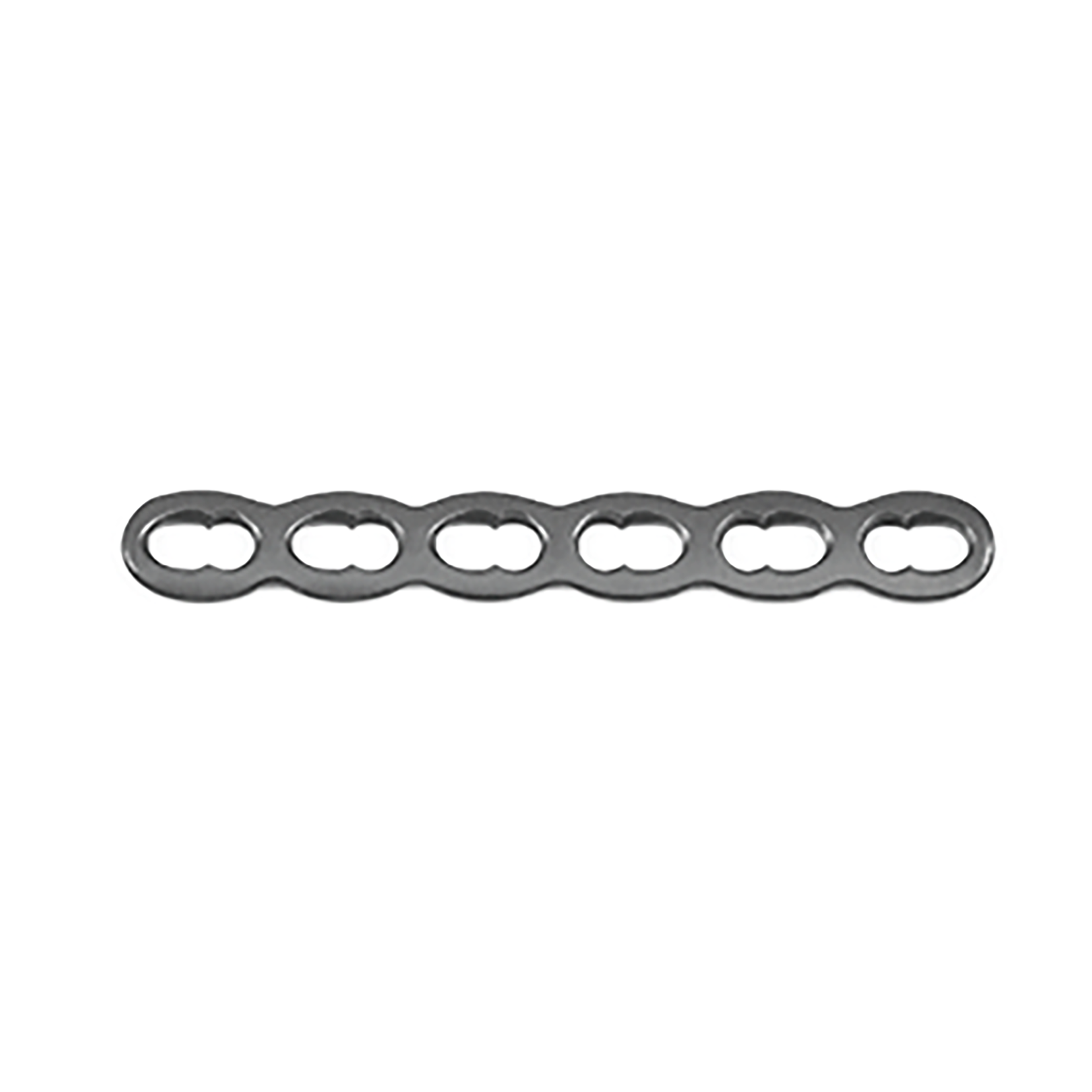

Straight Metacarpal Locking Plates Type III
- Low incisure design: reduce the irritability for cartilage tissue;
- Anatomical design: reduce intraoperative shaping;
- Locking design: with the Angle stability;
- Easy shear design: reduce inventory pressure.
- Tapping design: easy for screw tapping in;
- Plum hexagonal design: reduce the risk of sliding tooth;
- Different specifications design: easy to various parts of fracture treatment.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 121121000030 / 121121000031 | 3 holes | 25×6.5×1.2 | Pure Titanium |
| 121121000040 / 121121000041 | 4 holes | 33×6.5×1.2 | Pure Titanium |
| 121121000050 / 121121000051 | 5 holes | 41×6.5×1.2 | Pure Titanium |
| 121121000060 / 121121000061 | 6 holes | 49×6.5×1.2 | Pure Titanium |
| 121121000070 / 121121000071 | 7 holes | 57×6.5×1.2 | Pure Titanium |
| 121121000080 / 121121000081 | 8 holes | 65×6.5×1.2 | Pure Titanium |
Notes:
- The last digit of the product number “0” means non-sterile and “1” means sterile.
- All other types: Used for phalange fracture, select HC2.0 screws.
