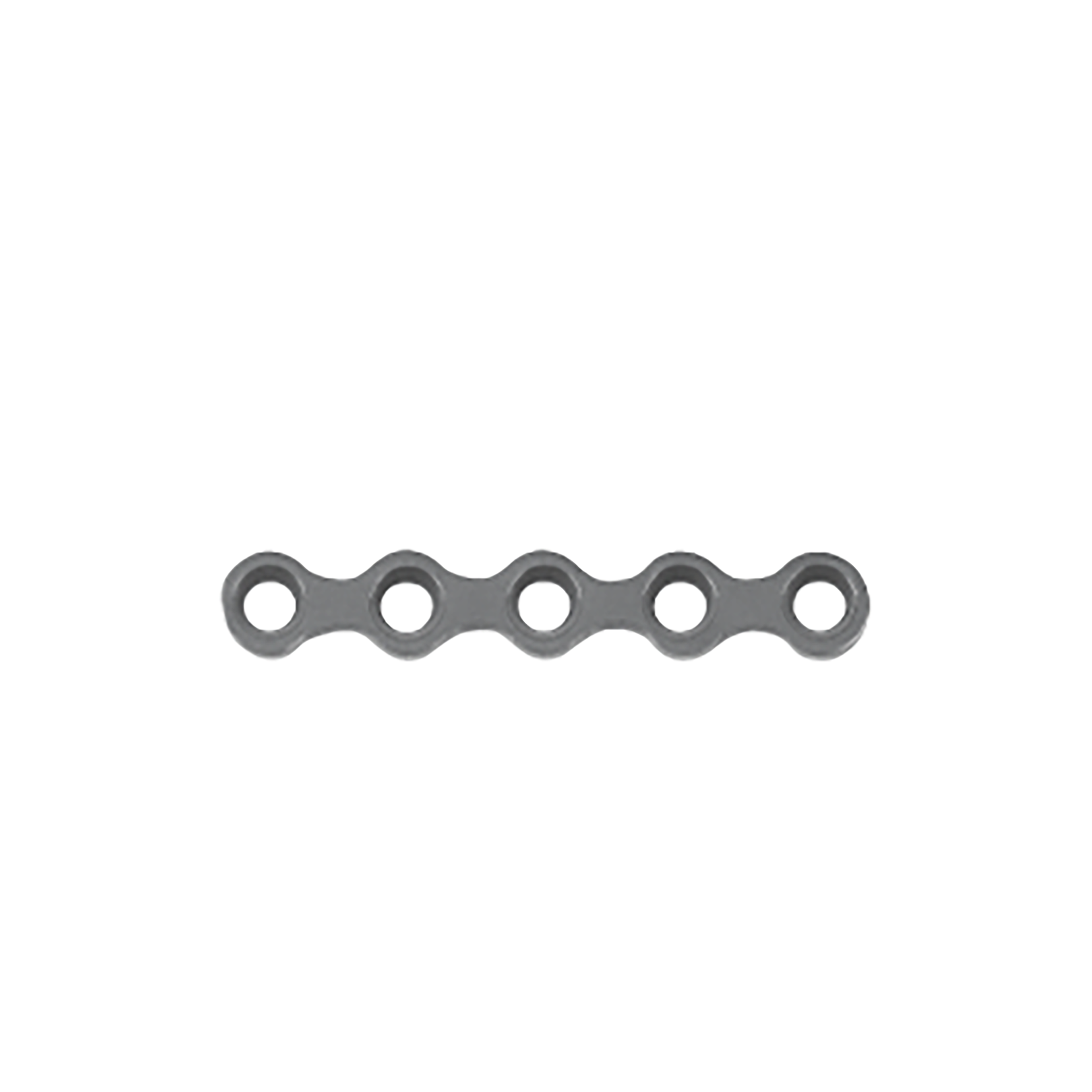

Straight Plates II
- Concave design can make screws and plates tighter together
- The edge design of the bone plate is smoother, which can reduce soft tissue damage
- The surface of the bone plate adopts anodizing technology, and different thicknesses can reflect different colors, making it convenient for physicians to operate
- Good biocompatibility, convenient for regular postoperative check ups
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 150621000040 / 150621000041 | 4 holes | 22.5×4.5×1.0 | Pure Titanium |
| 150621000060 / 150621000061 | 6 holes | 34.5×4.5×1.0 | Pure Titanium |
| 150621000080 / 150621000081 | 8 holes | 46.5×4.5×1.0 | Pure Titanium |
| 150621000100 / 150621000101 | 10 holes | 58.5×4.5×1.0 | Pure Titanium |
| 150621000120 / 150621000121 | 12 holes | 70.5×4.5×1.0 | Pure Titanium |
| 150621000140 / 150621000141 | 14 holes | 82.5×4.5×1.0 | Pure Titanium |
| 150621000160 / 150621000161 | 16 holes | 94.5×4.5×1.0 | Pure Titanium |
Notes:
- The last digit of the product number “0” means non-sterile and “1” means sterile.

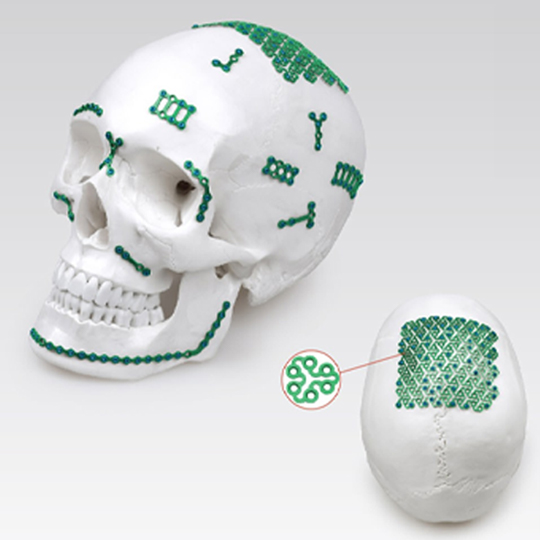

- Remark: Used for maxillo-facial fracture, select HA2.0 screws (crosshead)
