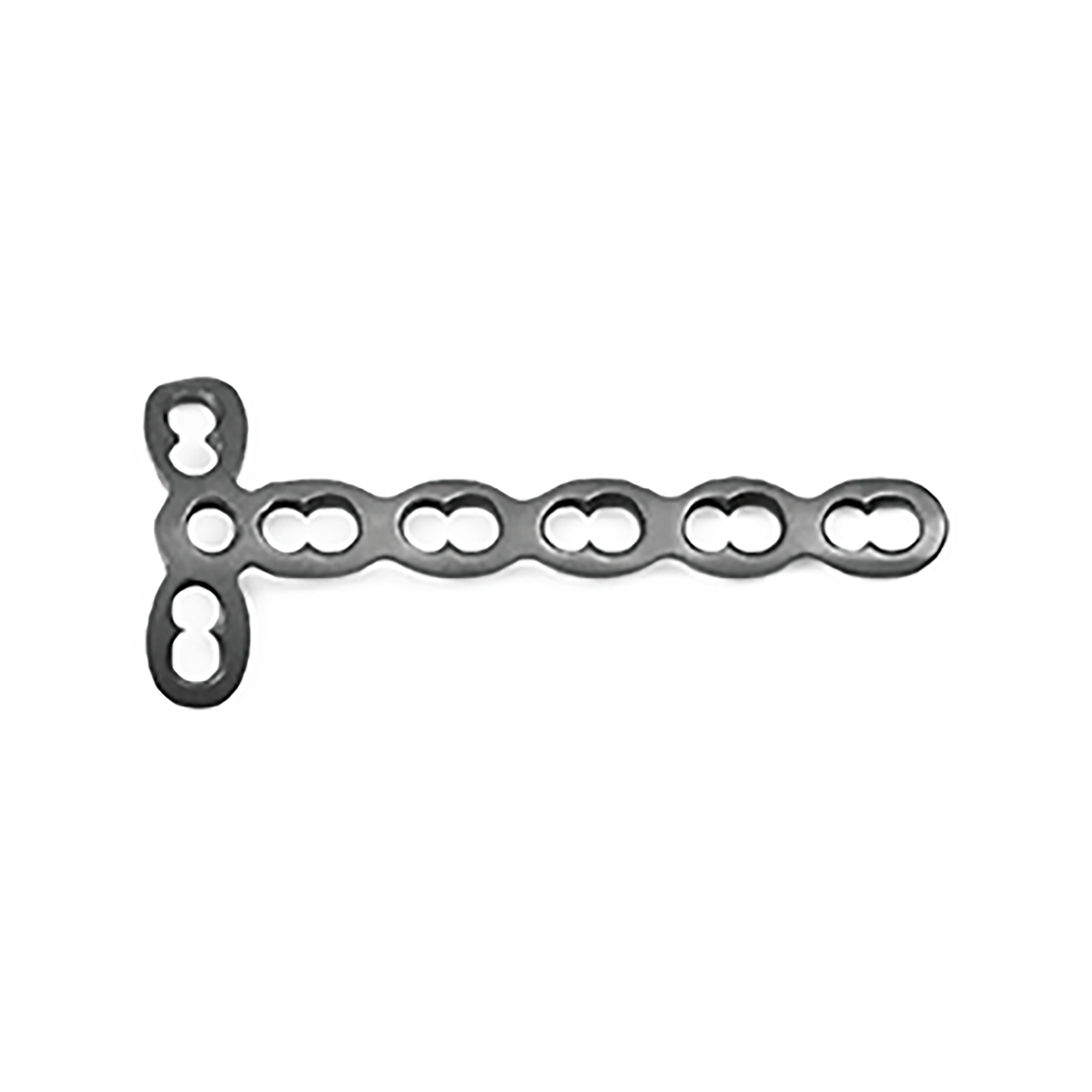

T-shaped Phalange Locking Plates Type II
- Low incisure design: reduce the irritability for cartilage tissue;
- Anatomical design: reduce intraoperative shaping;
- Locking design: with the Angle stability;
- Easy shear design: reduce inventory pressure.
- Tapping design: easy for screw tapping in;
- Plum hexagonal design: reduce the risk of sliding tooth;
- Different specifications design: easy to various parts of fracture treatment.
More Information About Our Products
- Parameter List
| Product No. | Specification | Length×Width×Thickness(mm) | Material |
|---|---|---|---|
| 120421000030 / 120421000031 | 3 holes | 25×5×1.2 | Pure Titanium |
| 120421000040 / 120421000041 | 4 holes | 32×5×1.2 | Pure Titanium |
| 120421000050 / 120421000051 | 5 holes | 39×5×1.2 | Pure Titanium |
| 120421000060 / 120421000061 | 6 holes | 46×5×1.2 | Pure Titanium |
| 120421000070 / 120421000071 | 7 holes | 53×5×1.2 | Pure Titanium |
Notes:
- The last digit of the product number “0” means non-sterile and “1” means sterile.
- Remark: Select HC2.0、HA2.0 screws
